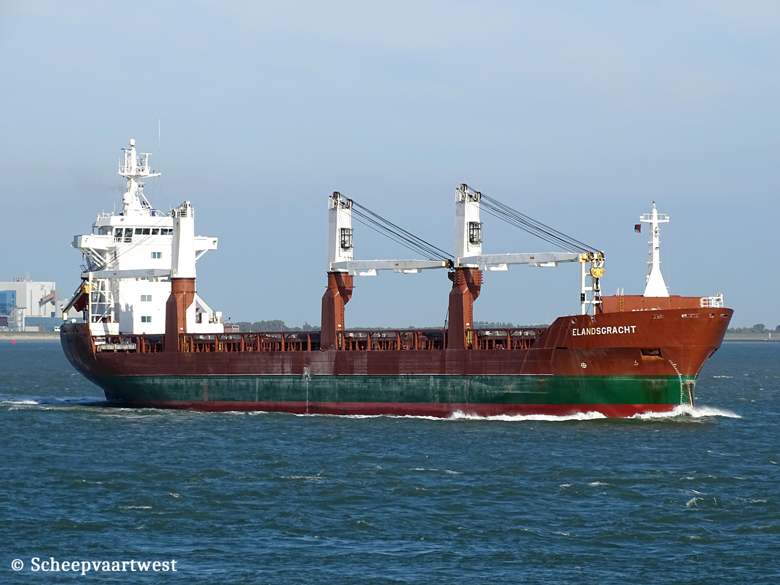

Elandsgracht IMO 9081332 01
Westerschelde 01 August 2020



Name

ELANDSGRACHT

Type

Multi-purpose dry cargo ship - Tween decker

IMO-number

9081332

Call sign

PDYI

Flag

The Netherlands

Port of registry

Amsterdam

GT

8.448 t

DWT

12.754 t

NT

4.651 t

Number of 20ft containers

In hold: 296

On deck: 434

Total: 730

Number of 40ft containers

In hold: 136 + 24 TEU

On deck: 186 + 62 TEU

Total: 322 + 86 TEU

Reefer capacity

322

Length

136,34 m overall

127,14 m between perpendiculars

Breadth

19,02 m extreme

Draught

Summer: 8,52 m

Depth

11,65 m moulded

Speed

Service: 14,5 knots

Max: 16,0 knots

Built

1994

Keel laid

23/09/1993

Launch date

14/11/1994

Date of completion

03/02/1994

Builder

Merwede Shipyard B.V.

Hardinxveld-Giessendam

The Netherlands

Yard number

666

Hull material

Steel

Hull type

Single hull

Movable bulkheads

Removable pontoons for up to 11 compartments

Number of decks

2

Main engine

1x Wärtsilä 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 hp at 500 rpm

Manufacturer: Wärtsilä Finland Oy, Vaasa/Vasa - Finland

Propellers

1x Fixed pitch propeller

Bow thruster

1x 500 kW / 700 hp

Number of holds

2

Cargo hold capacity

Hold 1: 5.890 m³ / 208.000 ft³

Hold 2: 15.780 m³ / 557.250 ft³

Total: 21.670 m³ / 765.250 ft³

Timber capacity

17.500 m³

Hold ventilation

About 30x per hour /empty holds

Number of hatches

3

Hatches

Weather deck:

  • Hatch 1: 26,60 x 15,80 m

  • Hatch 2: 31,74 x 15,80 m

  • Hatch 3: 16,60 x 15,80m

Tween deck: 91,94 x 15,80 m

Consisting of 17 steel pontoons:

  • 11x 6,35 x 15,80 m

  • 2x 4,36 x 15,80 m

  • 3x 3,19 x 15,80 m

  • 1x 3,19 x 15,80 m

Floor space

Tanktop: 1.208 m²

Tween deck: 1.430 m²

Weather deck: 1.280 m²

Max permitted loads

Weather deck hatch covers: 1,75 t/m²

Tween deck hatch covers: 4,00 t/m²

Tanktop: 20,00 t/m²

Tank capacities

Fuel oil: 1.338 m³

Diesel oil: 173 m³

Ballast water 4.044 m³

Cargo gear

3x Deck cranes - SWL 60,0 t each starboard side

Manager

Spliethoff's Bevrachtingskantoor B.V.

Amsterdam

The Netherlands

Registered owner

Spliethoff's Bevrachtingskantoor B.V.

Amsterdam

The Netherlands

Previous owners

02/1995 - 07/2012 C.V. Scheepvaartonderneming Elandsgracht, Amsterdam - The Netherlands

Renamed

06/2021 Turukhan

Russia, Arkhangelsk - Call sign: UBFW5

Owner & Manager: TK Nord Project LLC - Russia

Latest data adjustment

14 June 2022
