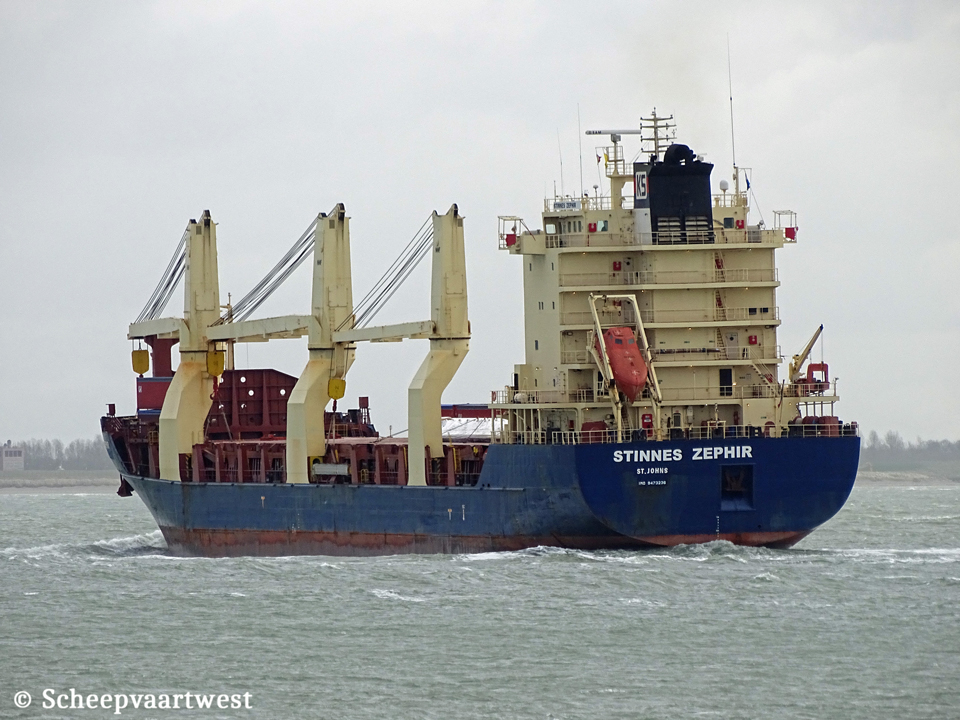

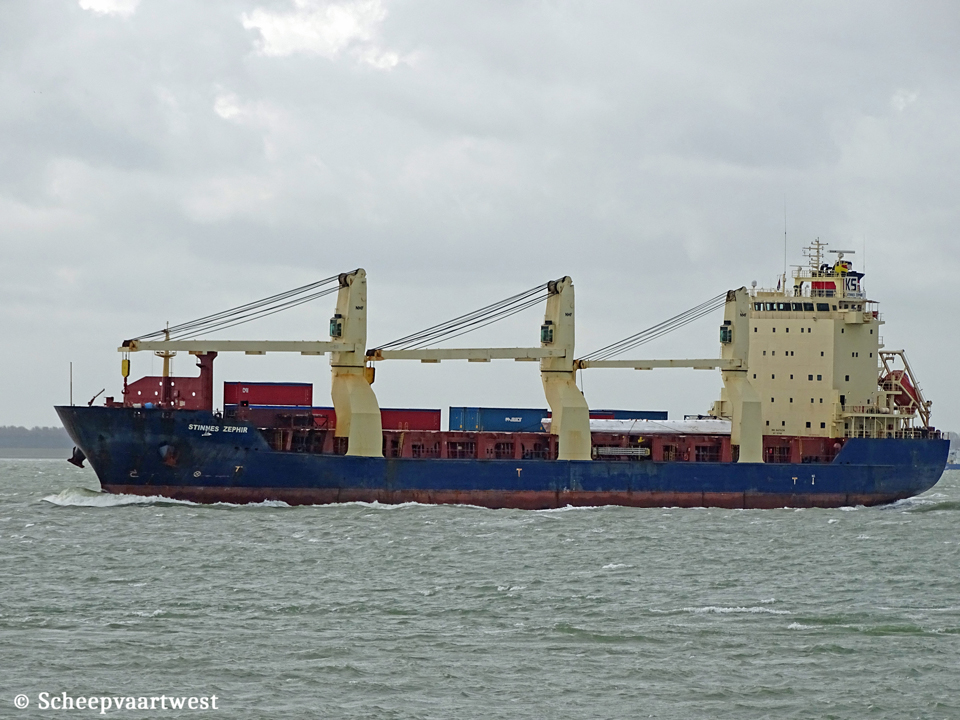

| Westerschelde 04 March 2019 |
 |
| Westerschelde 04/03/19 |
|
Name |
STINNES ZEPHIR |
|
Previous names |
2011 - 2018 Clipper Newark 2018 - 2019 Sinnes Zephir 2019 - 2021 BBC Mekong |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9473236 |
|
Call sign |
V2HC9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
2011 - 2018 Bahamas - Call sign: C6ZI2 2018 Marshall Islands - Call sign: V7VB8 |
|
GT |
12.795 t |
|
DWT |
17.273 t |
|
NT |
5.486 t |
|
Number of 20ft containers |
In hold: 380 On hatches: 468 On deck: 42 Total: 890 904 without tween deck pontoons onboard |
|
Container capacity 14t |
102 |
|
Reefer plugs |
84 on deck |
|
Length |
144,87 m overall 134,01 m between perpendiculars |
|
Breadth |
23,09 m extreme 22,81 m moulded |
|
Draught |
Summer: 9,85 m |
|
Height above keel |
41,73 m |
|
Depth |
13,35 m |
|
Speed |
Max: 16,0 knots |
|
Built |
2011 |
|
Keel laid |
30/12/2009 |
|
Launch date |
20/01/2011 |
|
Date of completion |
03/08/2011 |
|
Builder |
Tongfang Jiangxin Shipbuilding Co., Ltd. Jinjiang China |
|
Yard number |
JX620 |
|
Hull material |
Steel |
|
Movable bulkheads |
Grain bulkheads can be fitted in 2 positions in hold no. 2 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S50MCC - 6 cylinder combustion engine 8.580 kW at 127,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite Mission OC-Tci Builder: Alfa Laval Aalborg A/S |
|
Generators |
3x Daihatsu 6DK-20 main diesel generatorsets each 640 kW Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division |
|
Emergency generator |
1x Cummins 6B-series diesel generatorset 100 kW |
|
Bow thruster |
1x 700 kW |
|
Number of holds |
3x Box-shaped double skinned - Steel floored tank top with flush container shoes Hold 1: 21,70 x 13,24 m (7,88 m fore part) Hold 2: 40,60 x 18,60 m Hold 3: 27,30 x 18,60 m |
|
Cargo hold capacity |
Bale / grain: 19.728 m³ / 700.184 ft³ without tweendeck: 18.563 m³ / 647.230 ft³ |
|
Hold ventilation |
6x Air changes per hour (based on empty hold) |
|
Number of hatches |
3 Hatch 1: 3 panels - 20,90 x 13,74/8,38 m Hatch 2: 6 panels - 39,22 x 19,12 m Hatch 3: 4 panels - 26, 62 x 19,12 m |
|
Hatch type |
Mac Gregor weather deck hatch cover stowage |
|
Floor space |
Under deck: 2.913 m² / 31.355 ft² On deck: 1.718 m² / 18.492 ft² |
|
Number of pumps |
2x Ballast pumps each 450 m³/h |
|
Tank capacities |
Heavy fuel oil (IFO): 1.300 m³ Diesel oil (MGO): 314 m³ Water ballast: 6.506 m³ Fresh water: 330 m³ |
|
Anchor equipment |
Length: 580,00 m Diameter: 60 mm |
|
Cargo gear |
2x NMF electro-hydraulic heavy cargo cranes - SWL 150 t each port side Combinable up to 300 t 1x NMF electro-hydraulic heavy cargo cranes - SWL 80 t port side |
|
Crew size |
25 |
|
Manager |
Krey Schiffahrts Gmbh & Co., KG Friesenstrasse 79 26789 Leer Germany |
|
Registered owner |
Grafin Juliane Krey Schiffahrt Friesenstrasse 79 26789 Leer Germany |
|
Latest data adjustment |
25 October 2023 |
