| Westerschelde 22 December 2018 |
|
Name |

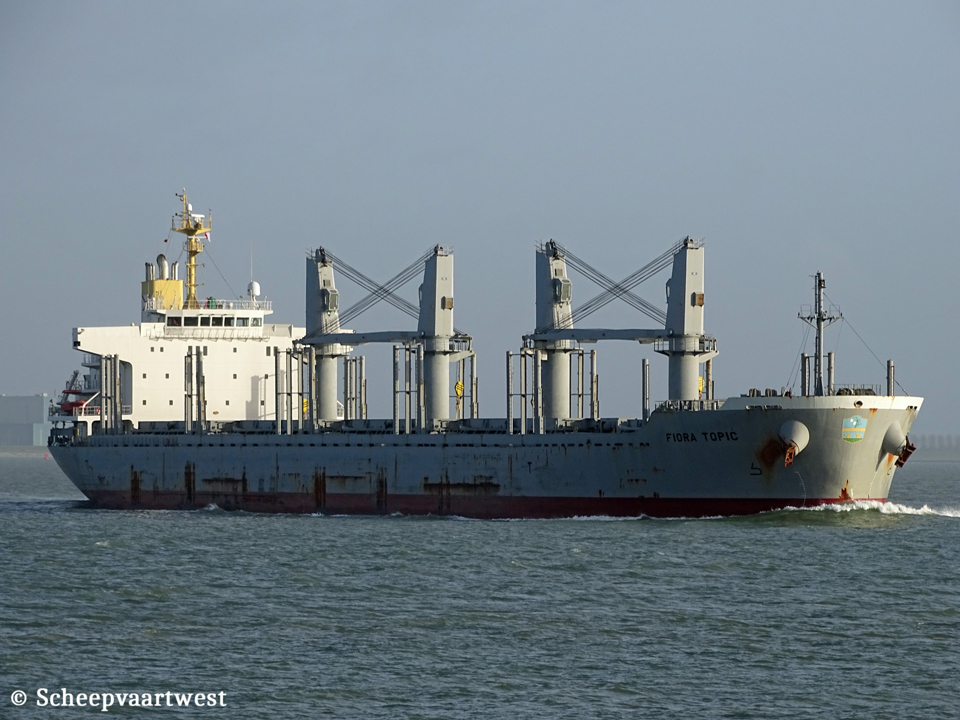

FIORA TOPIC |
|
Type |
Bulk carrier |
|
IMO-number |
9728461 |
|
Call sign |
V7LK8 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
21.571 t Suez: 22.115,80 t |
|
DWT |
Summer: 34.356 t Winter: 33.376 t |
|
NT |
11.208 t Suez: 19.828,70 t Panama: 17.988 t |
|
Displacement |
Summer: 42.657 t Winter: 41.677 t |
|
Light weight |
8.301 t |
|
Length |
179,96 m overall 174,00 m between perpendiculars |
|
Breadth |
30,04 m extreme |
|
Draught |
Summer: 9,82 m Winter: 9.62 m |
|
Keel to mast end |
41,00 m |
|
Freeboard |
Summer: 4.276 mm Winter: 4.480 mm |
|
Speed |
14,05 knots |
|
Built |
2015 |
|
Keel laid |
25/12/2014 |
|
Date of completion |
08/07/2015 |
|
Builder |
Namura Shipbuilding Co., Ltd. Imari Japan |
|
Yard number |
401 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Makita-Mitsui/MAN B&W 6S46ME-B8 - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 5.720 kW / 7.776 hp at 110,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x YANMAR 6EY18ALW diesel engine each each 748 hp / 550 kW at 900 rpm connected with generators 625 kVA - 450 Volt 60 Hz 3 phases |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain / Bale Hold 1: 6.114,2 m³ / 6.048,6 m³ Hold 2: 9.800,1 m³ / 9.493,1 m³ Hold 3: 9.800,2 m³ / 9.496,5 m³ Hold 4: 9.800,2 m³ / 9.496,5 m³ Hold 5: 8.632,2 m³ / 8.276,5 m³ Total: 44.146,9 m³ / 42.911,2 m³ |
|
Hold ventilation |
Natural |
|
Number of hatches |
5 Hatch 1: 14,05 x 14,20 m Hatches 2,3,4,5: 20,40 x 20,40 m |
|
Hatch type |
Electric-hydraulic fwd/aft folding 2 panels - each hold total 4 panels |
|
Max permitted loads |
Tanktop: Hold 1: 12,45 t/m² Hold 2: 11,83 t/m² Hold 3: 11,83 t/m² Hold 4: 11,83 t/m² Hold 5: 11,92 t/m² Upper deck: 4,0 t/m² Hatch cover: 2,5 t/m² |
|
Tank capacities 100% |
IFO: 1.059,0 m³ MDO: 101,6 m³ Fresh water: 211,4 m³ Ballast: 14.663,9 m³ |
|
Cargo gear |
4x Electric-hydraulic deck cranes - SWL 30,0 t each |
|
ISM & commercial manager |
Marfin Management SAM 30, avenue de Grande-Bretagne 98001 Monte Carlo Monaco |
|
Registered owner |
Albro Navigation Company Inc. 30, avenue de Grande-Bretagne Monte Carlo 98001 Monaco |
|
Latest data adjustment |
09 March 2022 |
