| Spijkenisse, Oude Maas 18 September 2021 |
|
Name |

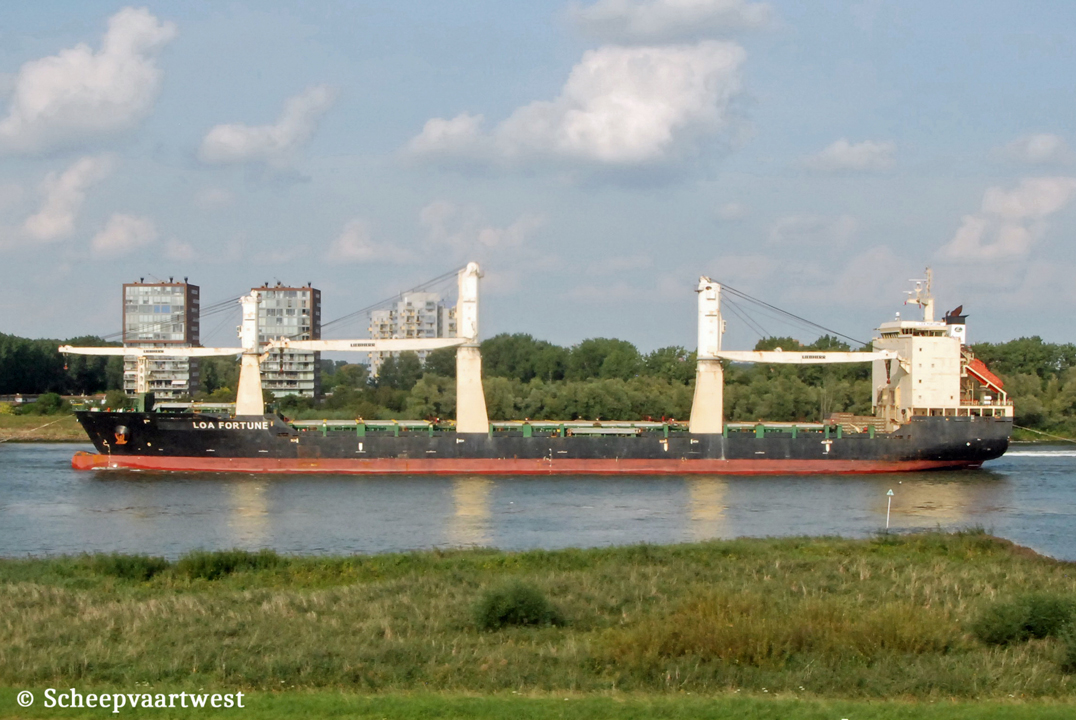

LOA FORTUNE |
|
Previous names |
2014 - 2020 New Legend Ruby |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9526265 |
|
Call sign |
3FVW |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
19.534 t |
|
DWT |
24.316,28 t |
|
NT |
8.684 t |
|
Number of 20ft containers |
1.439 |
|
Length |
175,42 m overall 165,80 m between perpendiculars |
|
Breadth |
26,51 m extreme |
|
Draught |
Summer: 10,30 m |
|
Depth |
14,25 m |
|
Speed |
Max: 17,4 knots |
|
Built |
2014 |
|
Keel laid |
22/06/2010 |
|
Launch date |
26/06/2011 |
|
Date of completion |
25/06/2014 |
|
Builder |
Wuhu Xinlian Shipbuilding Co. Ltd. China |
|
Yard number |
W0811 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7S50ME-C8 - 2 stroke 7 cylinder 500 x 2.000 mm combustion engine 9.401 kW / 12.782 hp at 124,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired - Mission OC-H |
|
Generators |
3x MAN 7L23/30H main diesel generatorsets |
|
Emergency generator |
1x John Deere 6068 HF 275 diesel generatorset |
|
Cargo hold capacity |
Grain: 30.200 m³ |
|
Tank capacities |
Ballast: 10.497 m³ |
|
Anchor equipment |
Length: 599,10 m Diameter: 66 mm |
|
Cargo gear |
2x Deck cranes - SWL 35 t each 1x Deck cranes - SWL 50 t |
|
Manager |
Liberty One (Asia) Co., Ltd. 73 Upper Paya Lebar Road #06-01c, Centro Bianco Singapore, 534818 Republic of Singapore |
|
Registered owner |
Xiangchi Shanghai Ship Charter Co., Ltd. Care of Tianjin Xinhai International Ship Management Co., Ltd. Room 407, Building 2, Haijing Plaza, 118, Tai'erzhuang Lu, Hexi Qu Tianjin, 300171 China |
|
Latest data adjustment |
06 March 2022 |
