| Westerschelde 28 March 2019 |
|
Name |

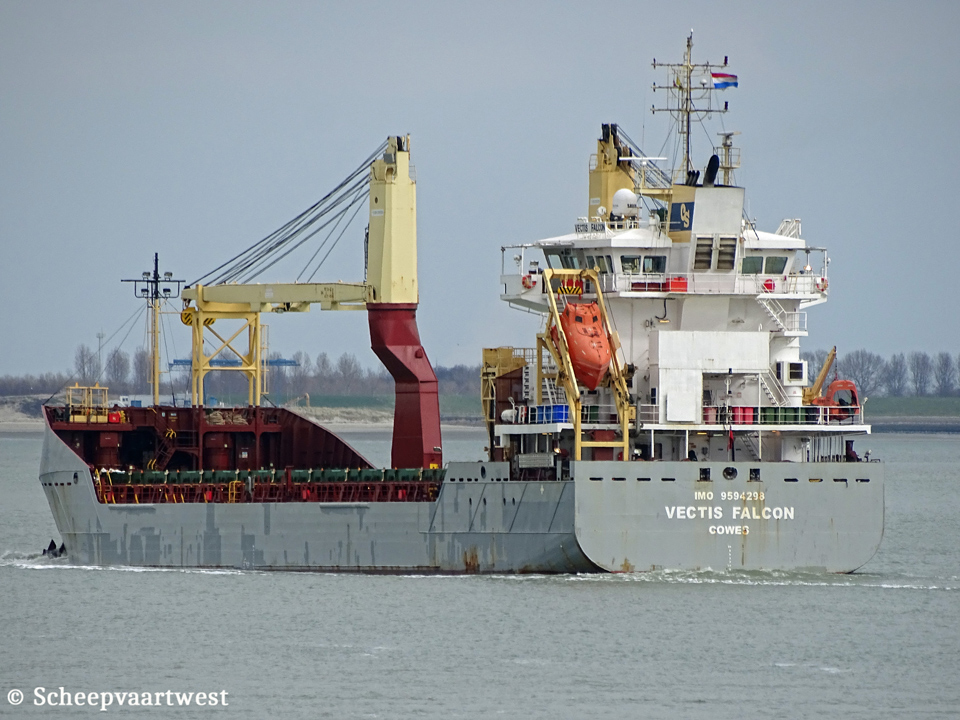

VECTIS FALCON |
|
Type |
General dry cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9594298 |
|
Call sign |
CQAP8 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
03/2012 - 04/2019 Isle of Wight - United Kingdom, Cowes - Call sign: 2FBR7 |
|
GT |
6.190 t |
|
DWT |
8.690 t |
|
NT |
2.619 t Panama: 5.278 t Suez: 5.473 t |
|
Lightship |
3.298 t |
|
Number of 20ft containers |
In hold: 204 On deck: 173 Total: 377 |
|
Length |
109,95 m overall 105,90 m between perpendiculars |
|
Breadth |
17,40 m |
|
Draught |
Summer: 7,92 m |
|
Keel to mast end |
39,50 m |
|
Freeboard |
3.410 mm |
|
Depth |
11,40 m to main deck |
|
Speed |
12,3 knots |
|
Built |
2012 |
|
Keel laid |
08/10/2011 |
|
Launch date |
28/11/2011 |
|
Delivery date |
31/03/2012 |
|
Builder |
Jiangsu New Yangzi Shipbuilding Co.,Ltd. Jiangyin China |
|
Yard number |
932 |
|
Hull material |
Steel |
|
Hull type |
Cross-bow single hull |
|
Bulkheads |
4x Grain bulkheads, consisting of 8 tweendeck panels |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 4 stroke 6 cylinder 320 x 480 mm combustion engine 2.400 kW / 3.261 hp at 550 rpm Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
1x Controllable pitch propeller in nozzle Diameter: 4.290 mm |
|
Boilers |
1x CHO 10,00 m² - 10,0 bar |
|
Shaft generator |
1x 420 kW |
|
Generators |
2x CAT C-18 Acert Dita main diesel generatorsets each 500 kVA - 400 kW - 595 hp at 1.500 rpm |
|
Emergency generator |
1x CAT C-18 Acert Dita diesel generatorsets 275 ekW at 1.500 rpm |
|
Bow thruster |
1x 400 kW, forward - Diameter 1.300 mm |
|
Number of holds |
1 Tank top: 70,00 x 13,80 x 11,30 m Tweendeck: 76,30 x 8,28 x 5,30 m |
|
Cargo hold capacity |
10.688 m³ - 376.630 ft³ |
|
Hold ventilation |
12x air changes per hour |
|
Number of hatches |
1 76,30 x13,80 m |
|
Max permitted loads |
Weather deck: 2,5 t/m² Tweendeck: 3,5 t/m² Tanktop: 18,0 t/m² |
|
Tank capacities |
Fuel oil: 277 m³ Ballast: 3.721 m³ Fresh water: 46 m³ |
|
Cargo gear |
2x Deck cranes - SWL 80,0 t each starboard |
|
Crew size |
15 |
|
Commercial manager |
SMT Shipping Cyprus Ltd. 33, Michalis Zavos Street Agios Athanasios 4107 Limassol Cyprus |
|
ISM managers |
Carisbrooke Shipping Limited Bridge House, 38, Medina Road Cowes, PO31 7DA United Kingdom |
|
Registered owner |
Super Greenship BV Burgemeester de Raadtsingel 71-B 3311 JG Dordrecht The Netherlands |
|
Latest data adjustment |
14 January 2022 |
