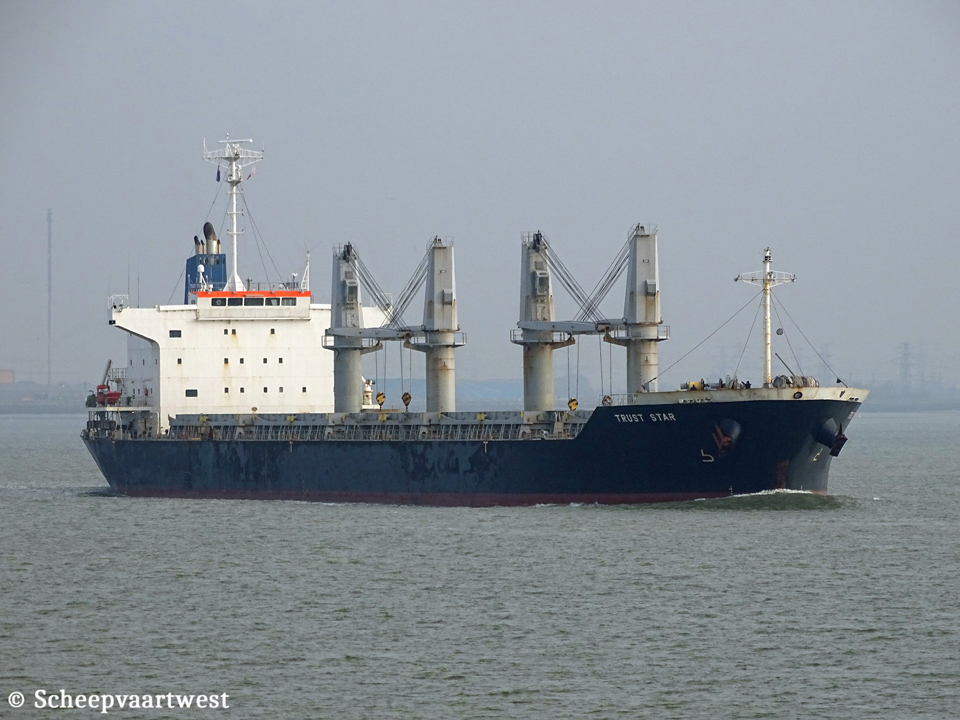

Trust Star IMO 9610236 01
Westerschelde 14 December 2018



Name

TRUST STAR

Type

Geared bulk carrier - Handysize - Strengthened for heavy cargo loading

IMO-number

9610236

Call sign

3FIV7

Flag

Republic of Panama

Port of registry

Panama City

GRT

21.838 t

DWT

Summer: 36.232 t

NRT

12.253 t

Length

176,50 m overall

Breadth

28,80 m moulded

Draught

Summer: 10,72 m

Moulded L x B x D

168,50 x 28,80 x 15,20 m

Registered L x B x D

169,35 x 28,80 x 15,20 m

Freeboard

Summer: 4.530 mm

Depth

15,20 m moulded

Speed

Service: 14,0 knots

Max: 16,4 knots

Built

2012

Keel laid

22/11/2010

Launch date

19/09/2012

Date of completion

21/11/2012

Builder

Shikoku Dockyard Co., Ltd.

Takamatsu

Japan

Yard number

1080

Hull material

Steel

Main engine

1x Mitsui/MAN-B&W 6S46MC-C8 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 7.300 kW / 9.988 bhpat 120,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 450 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler- 0,70 MPa

Evaporation: 2.00 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x main diesel generatorsets each 390 kW

Number of holds

5

Cargo hold capacity

Bale: 45.414 m³

Grain: 47.089 m³

Number of hatches

5

Tank capacities

Fuel oil: 1.954 m³

Fresh water: 353 m³

Cargo gear

4x Deck cranes - SWL 30,5 t each

Commerical manager

Nissen Kaiun Co., Ltd.

829-1, Kinoura, Hakata-cho, Imabari-shi

Ehime-ken, 794-2305

Japan

ISM manager

Cleanseas Shipmanagement, Inc.

Unit 2-A1, 2nd Floor, Frabelle Alabang Building, 1100, Alabang-Zapote Road, Madrigal Business Park, Ayala Alabang, Muntinlupa

1780 Manila

Philippines

Registered owner

Southern Route Maritime, S.A.

&

Nissen Kaiun Co., Ltd., Imabari - Japan

Care of Nissen Kaiun Co Ltd (Nissen Kaiun KK)

829-1, Kinoura, Hakata-cho, Imabari-shi

Ehime-ken, 794-2305

Japan

Latest data adjustment

17 December 2021
