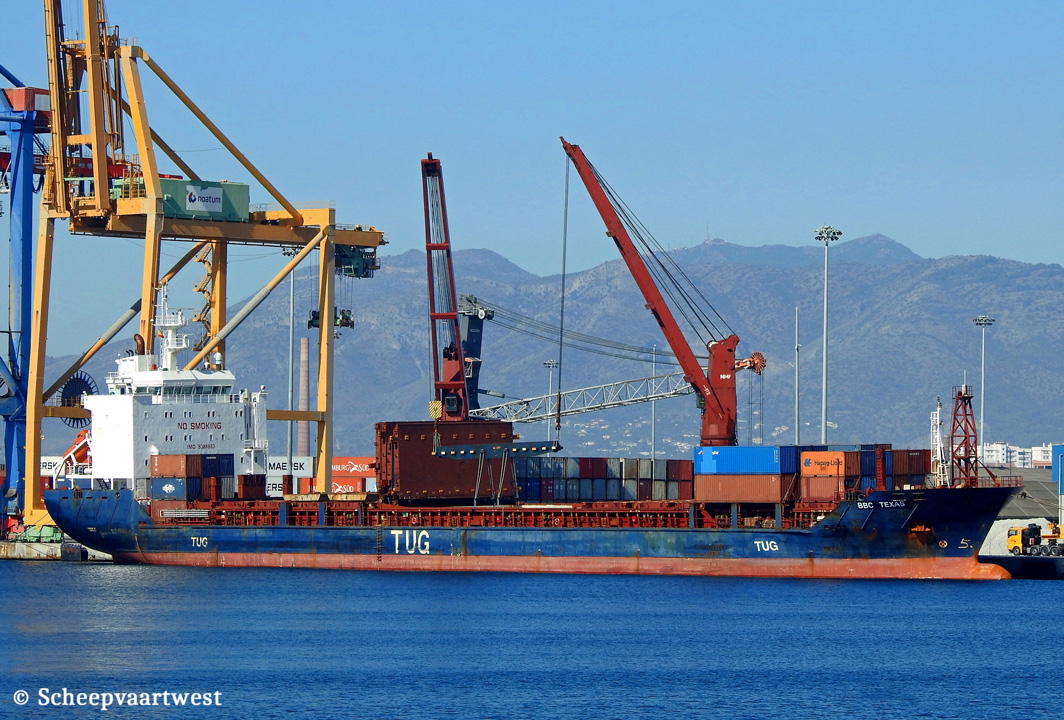

Malaga, Spain 18 July 2021 |
|
Name |
BBC TEXAS |
|
Previous names |
2007 - 2011 Beluga Fighter 2001 - 2011 BBC Texas 2011 - 2016 Heino |
|
Type |
Multi-purpose dry cargo vessel - Strengthened for heavy cargoes |
|
IMO-number |
9388883 |
|
Call sign |
V2CO9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
9.611 t |
|
DWT |
Summer: 12.669 t |
|
NT |
4.260 t |
|
Number of 20ft containers |
In hold: 334 On deck: 331 Total: 665 |
|
Container capacity 14t |
334 |
|
Reefer capacity |
25 |
|
Length |
138,16 m overall 130,00 m between perpendiculars |
|
Breadth |
21,00 m |
|
Reg. Dimensions L x B x D |
130,71 x 21,00 x 11,00 m |
|
Rule Dimensions L x B x D |
130,71 x 21,00 x 11,00 m |
|
Draught |
Summer: 8,00 m |
|
Keel to mast end |
39,40 m |
|
Freeboard |
Summer: 3.018 mm |
|
Depth |
11,00 m |
|
Speed |
Service: 13,5 knots Eco: 11,0 knots Max: 15,5 knots |
|
Built |
2007 |
|
Keel laid |
29/12/2004 |
|
Launch date |
16/06/2007 |
|
Date of completion |
29/10/2007 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard Wuhan China |
|
Yard number |
QS-493 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43 - 4 stroke single acting 6 cylinder 430 x 610 mm combustion engine Mcr 5.400 kW / 7.342 hp at 514 rpm Build: 01/2006 Builder: Caterpillar Motoren GmbH & Co. KG; Rostock - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 132,0 rpm |
|
Boilers |
1x Thermal oil installation FTH - 13 kg/cm² Heating surface: 39,0 m² 1x Economizer EGH - 10 kg/cm² Heating surface: 88,6 m² Build: 2006 Builder: Aalborg Industries BV, Oldenzaal - The Netherlands |
|
Shaft generator |
1x 875 kVA / e750 kW - 400/230 Volt 50 Hz |
|
Generators |
3x Main diesel generatorsets each 494 kVA / 395 ekW - 400/230 Volt 50 Hz |
|
Emergency generator |
1x Diesel generatorset 99 kW |
|
Bow thruster |
1x Tunnel thruster 500 kW / 680 bhp, forward |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain: 15.952 m³ Bale: 14.856 m³ |
|
Number of hatches |
3 |
|
Floor space |
Under deck: 2.810 m² On deck: 1.480 t |
|
Max permitted loads |
Tanktop: 16,0 t/m² Tween deck hold 1: 2,50 t/m² Tween deck hold 3+3: 4,00 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 730,0 m³ Fresh water: 125,8 m³ Water ballast: 5.003,8 m³ |
|
Cargo gear |
2x NMF deck cranes - SWL 150 t each Combination SWL 300 t |
|
ISM & Commercial manager |
Held Bereederungs GmbH & Co., KG Boschstrasse 21 49733 Haren (Ems) Germany |
|
Operator |
BBC Chartering GmbH & Co. KG Hafenstr. 10B 26789 Leer Germany |
|
Registered owner |
Alstertal NH Schifffahrts Care of Held Bereederungs GmbH & Co KG Boschstrasse 21 49733 Haren (Ems) Germany |
|
Latest data adjustment |
07 September 2021 |
