Westerschelde 24 June 2019 |
 |
|
| Westerschelde 30/06/19 | |
|
Name |

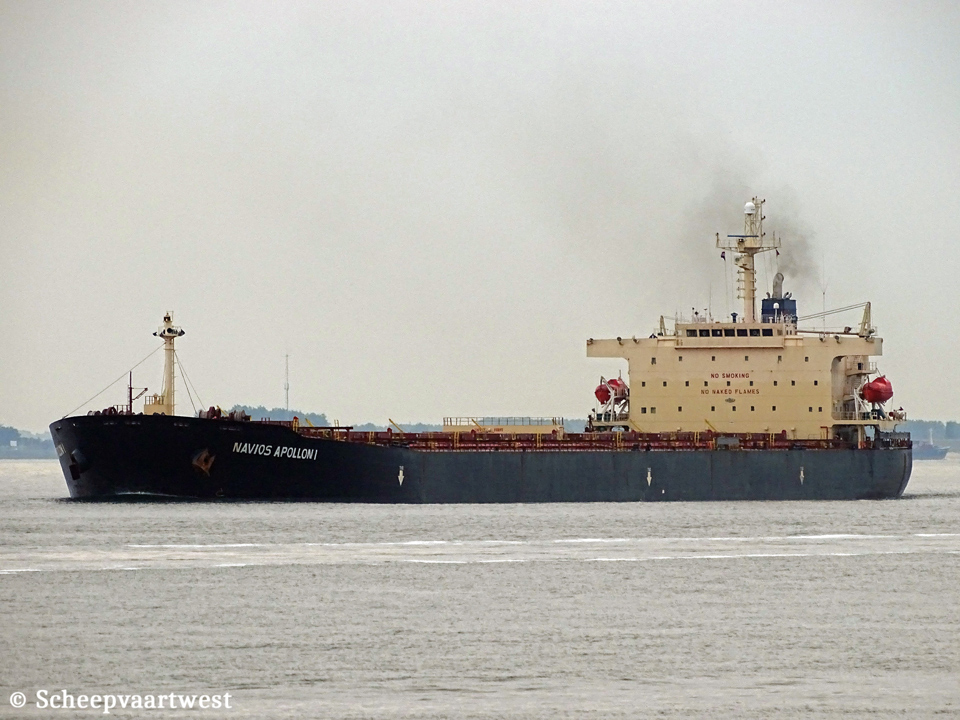

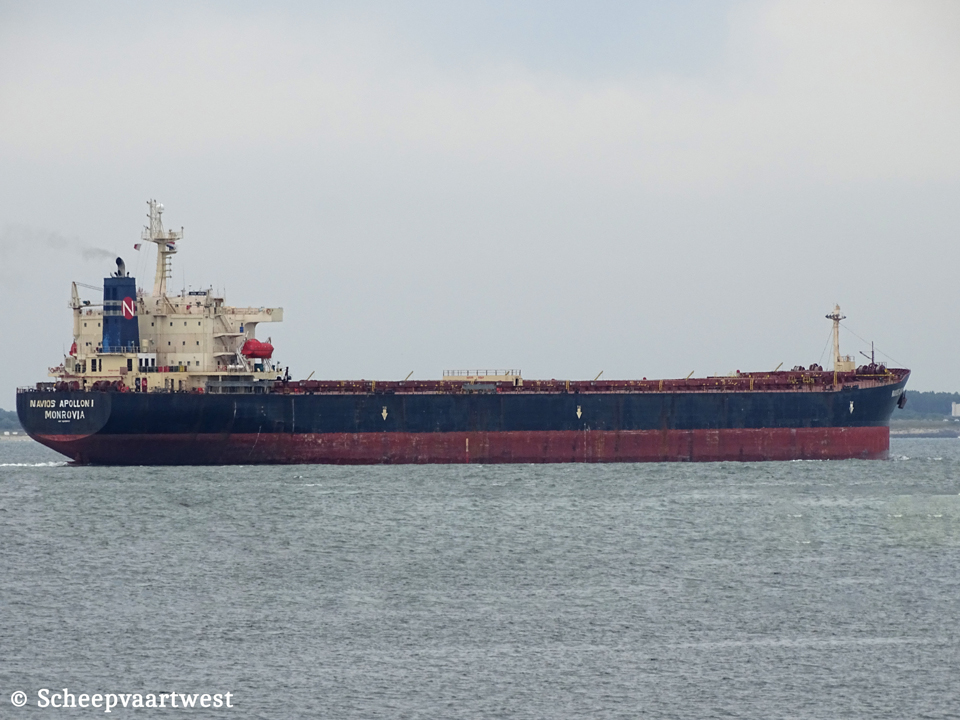

NAVIOS APOLLON I |
|
Previous names |
2005 - 2018 Alam Penting |
|
Type |
Bulk carrier - Panamax |
|
IMO-number |
9290842 |
|
Call sign |
D5QT5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2005 - 2018 Republic of Singapore, Singapore City - Call sign: 9VJK3 |
|
GT |
46.982 t |
|
DWT |
Summer: 87.052 t |
|
NT |
26.950 |
|
Light displacement |
13.118 t |
|
Length |
229,00 m overall 219,90 m between perpendiculars |
|
Breadth |
36,50 m |
|
Draught |
Summer: 14,14 m |
|
Keel to mast end |
50,76 m |
|
Freeboard |
5.825 mm |
|
Depth |
19,90 m |
|
Speed |
Service: 14,5 knots Max: 16,2 knots |
|
Built |
2005 |
|
Date of completion |
19/07/2005 |
|
Builder |
Japan Marine United Corporation Yokohama Shipyard Isogo Works Yokohama Japan |
|
Yard number |
3185 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 6RTA58T - 2 stroke 6 cylinder 580 x 2.416 mm combustion engine 10.300 kW/ 13.995 hp at 95,0 rpm Build: 03/2005 Builder: Diesel United Ltd., Aioi-Shi - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 95,0 rpm |
|
Boilers |
1x CHM Osaka Boiler 130,00 m² - 7,0 bar |
|
Generators |
3x Daihatsu 6DC-17A - 4 stroke 6 cylinder 170 x 270 mm diesel generatorset each 625 kVA - 500 kW - 775 hp |
|
Emergency generator |
1x Caterpillar C9 - 4 stroke 6 cylinder 112 x 149 mm diesel generatorset 236 kVA - 189 kW - 190 hp |
|
Number of holds |
7 |
|
Cargo hold capacity |
Bale: 94.844 m³ Grain: 98.800 m³ |
|
Number of hatches |
7 |
|
Tank capacities |
Fuel: 3.681,98 m³ |
|
Crew |
16 |
|
ISM & commercial manager |
Navios Technical Management SA 85, Akti Miaouli 185 38 Piraeus Greece |
|
Registered owner |
Andromeda Shiptrade Ltd. Care of Navios Technical Management SA 85, Akti Miaouli 185 38 Piraeus Greece |
|
Latest data adjustment |
28 December 2022 |
