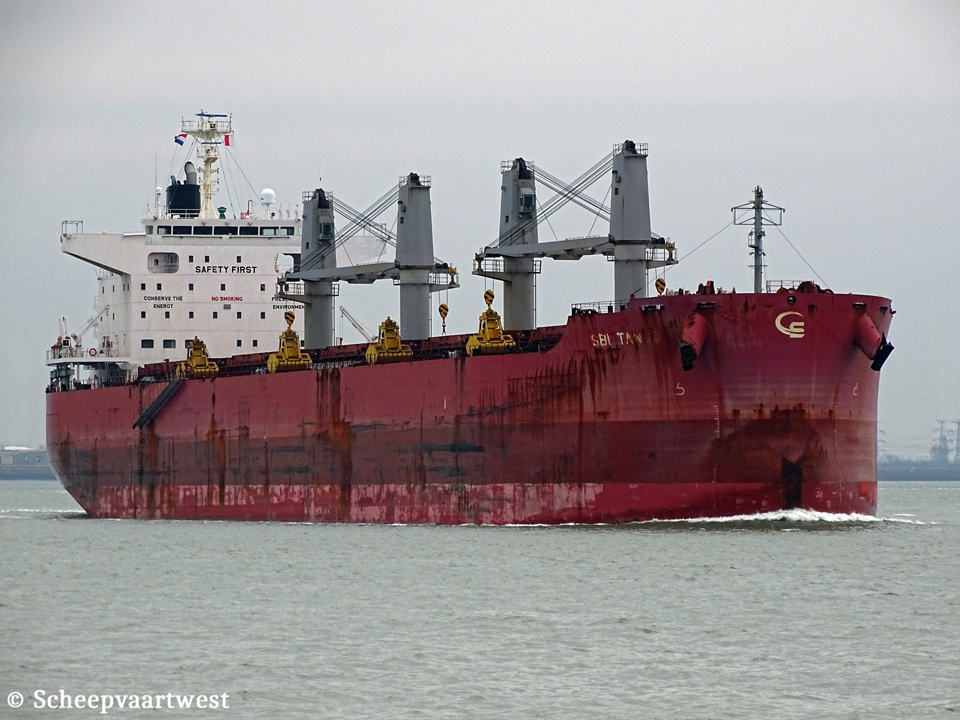

SBI Tango IMO 9714707 01

Westerschelde 08 February 2020

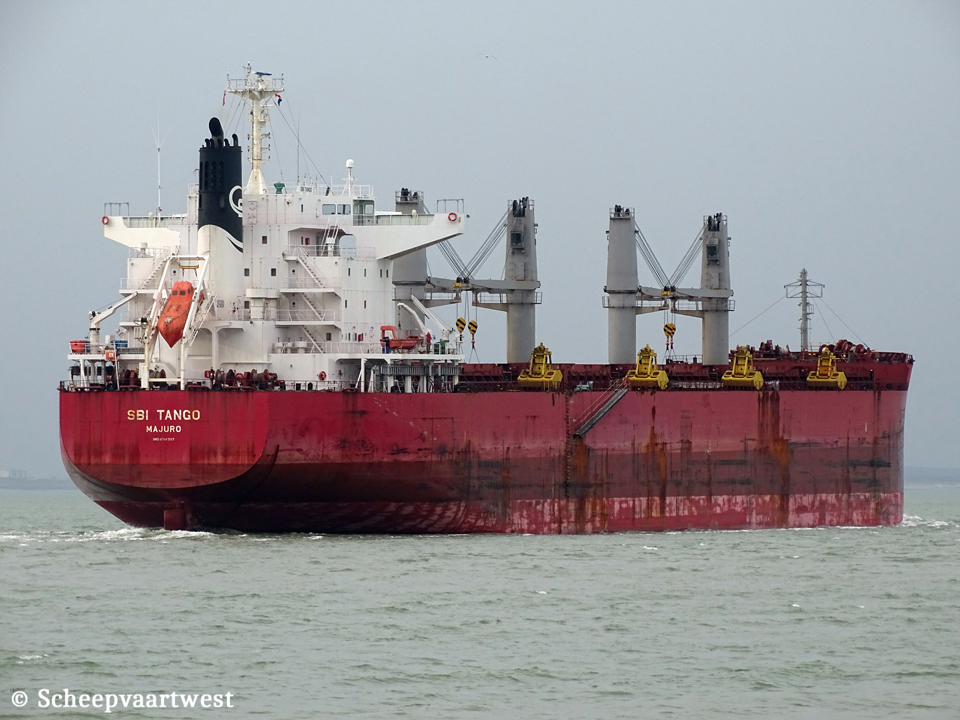

SBI Tango IMO 9714707 02
Westerschelde 08/02/20













Name

SBI TANGO

Type

Geared grab fitted bulk carrier - Ultramax

IMO-number

9714707

Call sign

V7KC3

Flag

Marshall islands

Port of registry

Majuro

GT

34.835 t

Suez: 35.927,37 t

DWT

61.192 t

NT

20.238 t

Suez: 33.300,85 t

Panama: 28.853,08 t

Displacement

72.322 t

Length

199,90 m overall

195,00 m between perpendiculars

Breadth

32,24 m moulded

Draught

Summer: 12,60 m

Freeboard

5.640 mm

Depth

18,60 m moulded

Speed

14,5 knots

Built

2015

Keel laid

20/01/2015

Launch date

14/07/2015

Date of completion

03/09/2015

Builder

Imabari Shipbuilding Co., Ltd.

Imabari Shipyard 4-52 Koura-Cho 1-Chome,

Imabari City, 799-2195

Japan

Yard number

S-871

Hull material

Steel

Hull type

Single hull

Main engine

1x Hitachi/MAN-B&W 6S50ME-B9.3 - 6 cylinder 500 x 2.214 mm combustion engine 8.2620 kW / 11.233 bhp at 108,0 rpm

Manufacturer: Hitachi Zosen Corporation, Ariake Works

Propellers

1

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Fired exhaust gas boiler - 8,0 MPa

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

3x Main diesel generatorsets each 600 kW

Manufacturer: Taiyo Electric Co., Ltd.

Number of holds

5

Cargo hold capacity

74.637,93 m³

Number of hatches

5

Tank capacities

Lub oil: 107,80 m³

Ballast: 33.469,62 m³

Diesel oil: 215,39 m³

Fuel oil: 2.446,15 m³

Fresh water: 669,12 m³

Lifting equipment

2x Provision crane - SWL 0,9 t each

1xProvision crane - SWL 2,5 t

Manufacturer: Nantong Sekigahara Machinery Manufacturing Co., Ltd.

Cargo gear

4x Deck cranes - SWL 30,7 t each

Manufacturer: Manabe Zoki Co., Ltd.

Crew

28

Manager

Scorpio Commercial Management S.A.M.

Le Millenium 9 boulevard Charles III

Monaco-Ville

Monaco

Registered owner

Mac Lir Corporation

Latest data adjustment

21 June 2021
