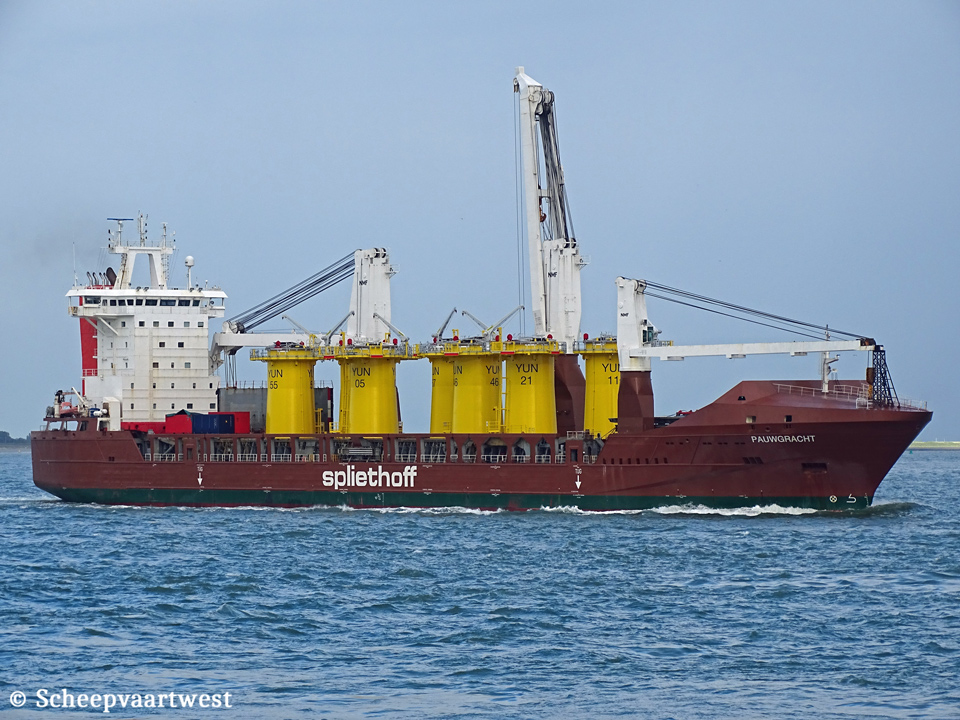

Pauwgracht IMO 9448308 01

Westerschelde 06 July 2020

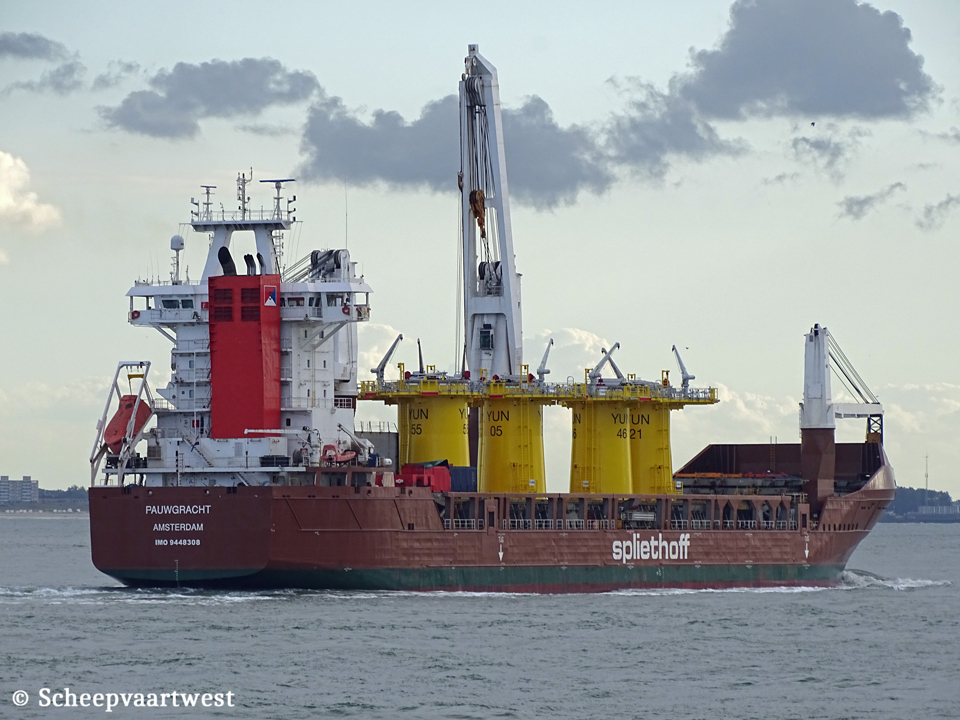

Pauwgracht IMO 9448308 02
Westerschelde 06/07/20













Name

PAUWGRACHT

Previous names

2010 Keel laid as: Beluga Passion

12/2010 - 11/2011 Beluga London

11/2001 HHL Richards bay

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

Heavy load / lift

IMO-number

9448308

Call sign

PCCI

Flag

The Netherlands

Port of registry

Amsterdam

Previous flags

12/2010 - 03/2019 Liberia, Monrovia - Call sign: D5CU8

GT

17.644 t

DWT

Summer: 19.328,7 t

NT

6.617 t

Number of 20ft containers

On deck: 488

In hold 424

Total: 912

Reefer plugs

100

Length

168,68 m overall

155,79 m between perpendiculars

Breadth

25,43 m extreme

24,20 m moulded

Draught

Summer: 9,50 m

Depth

13,85 m

Speed

Max: 17,0 knots

Built

2010

Keel laid

29/04/2010

Launch date

16/07/2010

Date of completion

01/12/2010

Builder

Hudong-Zhonghua Shipbuilding (Group) Co., Ltd.

Shanghai

China

Yard number

H1530A

Hull material

Steel

Number of decks

2

Main engine

1x MAN 7L58/64CD - 4 stroke single acting 7 cylinder combustion engine 9.800 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired

1x Thermal oil heater, exhaust heated

Shaft generator

1x 1.550 kW

Generators

3x Caterpillar C32 ACERT main diesel generatorsets each 994 kW

Emergency generator

1x 645 DSBIG diesel generatorset 200 kW

Bow thruster

1x 800 kW

Number of holds

2x Double skinned, boxshaped

Cargo hold capacity

Hold 1: abt. 4?275 m³ / 50.993 ft³

Hold 2: abt. 22.062 m³/ 779.230 ft³

Total: abt. 26.337 m³ / 930.223 ft³

Hold ventilation

6 Air change per hour

Number of hatches

2

Hatch 1: 23,28 m (22,94 m opening) x 14,26 m (13,76 m opening)

Hatch 2: 83,57 m (82,40 m opening) x 19,46 m (18,66 m opening)

Hatch type

Hydraulic folding type, combinable w/pontoons

Tween deck

Hold 1: 22,94 m x 13,76 m

Hold 2: 82,40 m x 18,66 m

Lower hold

Hold 1: 22,94 m x 13,76 m / 9,56m

Hold 2: 82,40 m x 18,66 m

Floor space

Tanktop:

Hold 1: 281 m²

Hold 2:1.332 m²

Tweendeck:

hold 1: 281 m²

Hold 2: 1.458 m²

Weather deck: 2.200 m²

Max permitted loads

Weather deck hatch covers: 5,0 t/m²

Tweendeck hatch covers: 3,5 t/m²

Tanktop: 18,0 t/m²

Tank capacities

Ballast: 11.849,7 m³

Freshwater 200 m³

HFO: abt. 1.500 m³

MGO: abt. 200 m³

Anchor equipment

Length: 605,00 m

Diameter: 66 mm

Cargo gear

3x NMF deck cranes (2x starboard, 1x portside):

2x SWL 700 t ( SWL combinable up to 1.400

1x SWL 180 t

Crew size

20

Manager

Spliethoff's Bevrachtingskantoor B.V.

Amsterdam

The Netherlands

Previous managers

12/2010 - 03/2011 Beluga Fleet Management G.m.b.H & Co. K.G., Bremen - Germany

03/2011- 11/2011 Liberty Blue Shipmanagement G.m.b.H. & Co. KG, Leer - Germany

11/2011 - 03/2019 Hansa Heavy Lift G.m.b.H., Hamburg - Germany

Registered owner

Rederij Pauwgracht

Amsterdam

The Netherlands

Previous names & owners

12/2010 - 03/2011 Beluga London - Beluga Shipping G.m.b.H., Bremen - Germany

03/2011 - 03/2019 HHL Richards Bay- Hansa Heavy Lift UG (haftungsbeschränkt) & Co. KG ms HHL Richards Bay, Hamburg - Germany

03/2019 - 02/2020 Pauwgracht - B.V. Firmanten Pauwgracht, Amsterdam - The Netherlands

Latest data adjustment

17 May 2021
