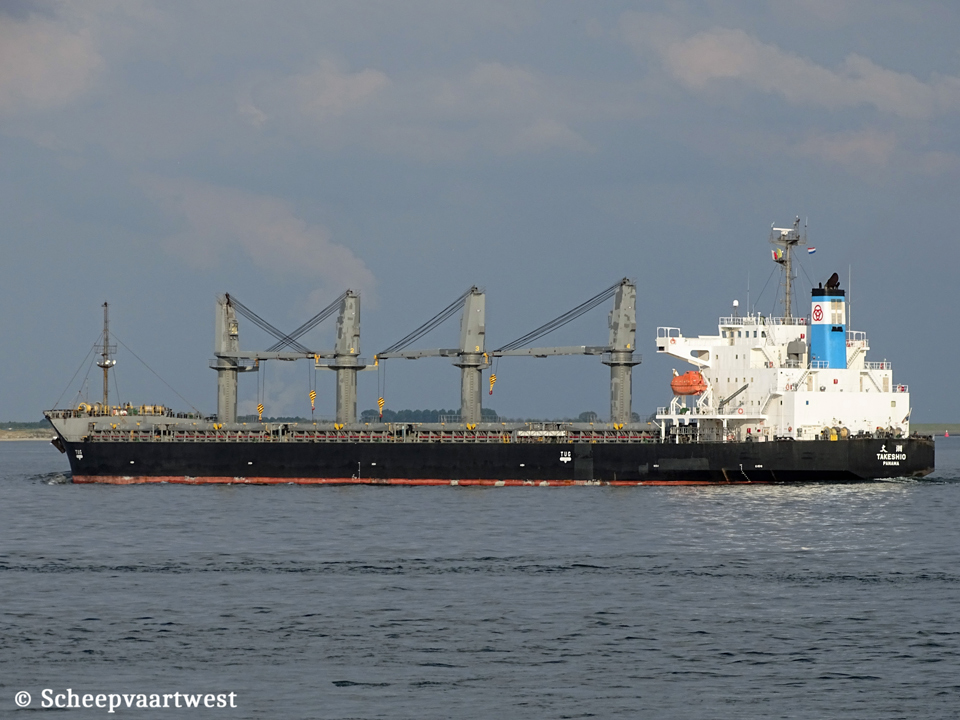

Takeshio IMO 9526162 01

Westerschelde 06 June 2019



Name

TAKESHIO

Type

Bulk carrier - Strengthened for heavy cargo loading

Main products

Grains, coal, ore, sulphur, cement, limestone, steel products and lumbers

IMO-number

9526162

Call sign

3FDZ5

Flag

Republic of Panama

Port of registry

Panama City

GT

23.855 t registered

DWT

Summer: 38.494 t

NT

11.814 t registered

Length

184,75 m

Breadth

31,0 m

Draught

Summer: 10,02 m

Moulded L x B x D

177,00 x 30,60 x 14,50 m

Registered L x B x D

177,81 x 30,60 x 14,50 m

Freeboard

Summer: 4.525 mm

Speed

16,0 knots

Built

2012

Keel laid

16/12/2010

Launch date

23/04/2012

Date of completion

28/03/2012

Builder

Naikai Zosen Corporation Setoda Shipyard

Onomichi

Japan

Yard number

752

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x Hitachi/MAN-B&W 6S46MC-C (Mark 7) - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 6.780 kW at 111,0 rpm

Manufacturer: Hitachi Zosen Corporation Ariake Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 472 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,70 MPa

Evaporation: 2,30 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Generatorsets total 1.280 kVA

Number of holds

5

Cargo hold capacity

Bale: 46.315 m³

Grain: 47.235 m³

Number of hatches

5

Tank capacities

Fuel oil: 2.231 m³

Fresh water: 371 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Crew size

25

Manager

MUR Shipping BV

Prismatrium

Hogehilweg 18

1101 CD Amsterdam

The Netherlands

ISM Manager

Interorient Shipmanagement (Singapore) Pte. Ltd.

51 Goldhill Plaza, #23-08/10

Singapore 308900

Republic Of Singapore

Registered owner

Peony Shipholding SA

C/o Pacific Carriers Ltd.

Kim Seng Promenade

Singapore 237994

Republic of Singapore

Latest data adjustment

10 May 2021
