Westerschelde 30 June 2019 |
|
Name |

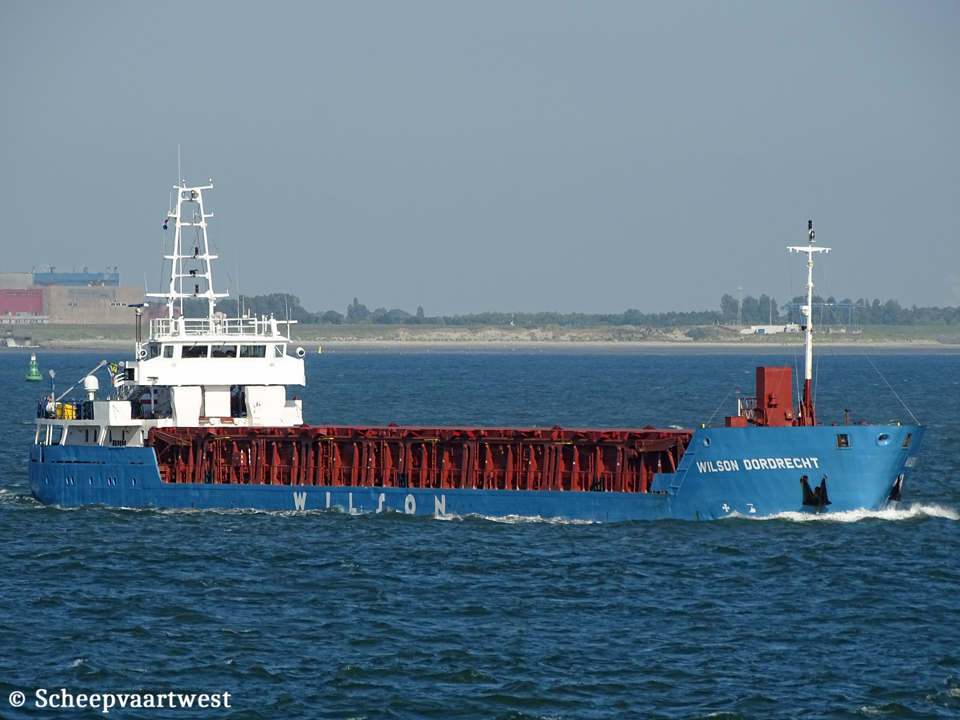

WILSON DORDRECHT |
|
Previous names |
1996 - 09/2005 Svenja 09/2005 - 11/2007 Countess Julia 11/2007 - 2019 Kine |
|
Type |
General cargo vessel - Equipped for carriage of containers |
|
IMO-number |
9145140 |
|
Call sign |
8PAR2 |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
Previous flags |
1996 - 2007 Germany 2007 - 2019 Bahamas, Nassau - Call sign: C6WT4 |
|
GT |
2.061 t |
|
DWT |
3.006 t |
|
DWCC |
Summer: 2.850 t Winter: 2.908 t |
|
NT |
1.161 t |
|
Number of 20ft containers |
In hold: 72 On deck: 48 Total: 120 |
|
Length |
88,56 m overall 84,96 m registered |
|
Breadth |
11,35 m registered |
|
Draught |
Summer: 4,95 m Winter: 4,85 m |
|
Keel to antenna |
Fwd/aft: 19,50 / 23,00 m Fwd/aft: 12,50 / 12,70 m - lowered mast |
|
Air draft |
19,20 m ballast |
|
Forecastle |
6,46 m |
|
Poop |
16,80 m |
|
Depth |
6,40 m |
|
Speed |
10,5 knots |
|
Built |
1996 |
|
Keel laid |
08/09/1995 |
|
Launch date |
29/03/1996 |
|
Date of completion |
25/05/1996 |
|
Builder |
Slovenske Lodenice A.S. Rolnickej Skoly 1519 945 25 Komarno Slovak Republic |
|
Yard number |
1710 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight compartments |
4 |
|
Movable bulkheads |
2x Full hold height, 10 position |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz SBV6M628 - 4 stroke 6 cylinder 240 x 280 mm combustion engine 1.125 kW at 900 rpm Reduced power: 600 kW Year of manufacture: 1995 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Propellers |
1x Solid propeller - aft at 264 rpm |
|
Boilers |
1x Water heater, oil fired - 4,0 bar |
|
Electric installations |
1x Plant 380/220 V - 85 kVA 1x Plant 380/220 V - 85 kVA 1x Plant 380 V - 85 kVA |
|
Generators |
2x Main diesel generatorsets each 85 kVA |
|
Emergency generator |
1x Diesel generatorset 85 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x JASTRAM BU40 Transverse thruster 175 kW, forward |
|
Number of Hold |
1x Box 57,50 m x 9,00 x 8,06 m |
|
Cargo hold capacity |
Grain: 4.167,7 m³ / 147.192 ft³ |
|
Number of Hatch |
1 57,50 m x 9,01 m |
|
Hatch covers |
MacGregor folding type |
|
Max permitted loads |
Deck/hatch cover: 1,6 t/m² Tanktop: 12,0 t/m² |
|
Tank capacities |
Water ballast: 1.152 m³ MGO: 135 m³ |
|
Anchor equipment |
3x Anchors weight each 1.440 kg Chain length: 412,50 m Diameter: 30 mm |
|
Crew |
7 |
|
Crew size |
9 |
|
Manager |
Wilson Dhip amanagement AS Bergen Norway |
|
Registered owner |
Wilson Shipowning AS C/o Wilson Euro Carriers AS Bergen Norway |
|
Previous names & owners |
1996 - 09/2005 Svenja - Krey Schiffahrts GmbH & Co ms "Svenja" KG 11/2007 - 2019 Kine- Vaagebulk IV KS |
|
Latest data adjustment |
03 May 2021 |
