Breb Countess IMO 9421166 01

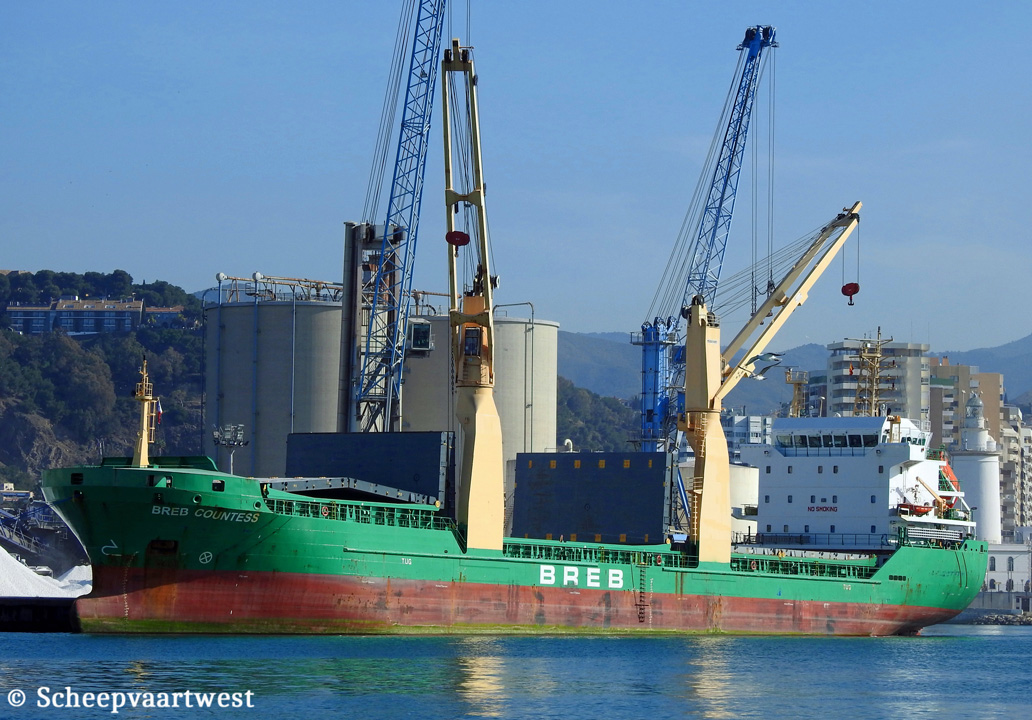

Malaga, Spain 11 March 2021



Name

BREB COUNTESS

Previous names

2009 Build as: Miamidiep

09/ 2009 - 08/2017 UBC Montego Bay

Type

Geared multi-purpose dry cargo ship - Strengthened for heavy cargo - Singledecker - Fitted for carriage of dangerous goods

IMO-number

9421166

Call sign

CQIR2

Flag

Portugal

Port of registry

Madeira

Previous flags

2009 - 2014 The Netherlands , Groningen - Call sign: PBUP

2014 - 2017 Cyprus, Limassol - Call sign: 5BSA3

GT

5.630 t

DWT

Summer: 7.811,82 t

NT

2.883 t

Length

108,20 m overall

103,90 m between perpendiculars

Breadth

18,50 m extreme

18,20 m moulded

Draught

Summer: 7,01 m

Depth

9,00 m

Speed

Service: 9,5 knots

Max: 14,6 knots

Built

2009

Keel laid

17/06/2008

Launch date

02/04/2009

Date of completion

28/08/2009

Delivery date

14/09/2009

Builder

Nanjing Huatai Shipyard Co., Ltd.

Nanjing

China

Yard number

HT06-4-09

Hull material

Steel

Main engine

1x MaK 6M32C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 2.999 kW / 4.080 bhp

Manufacturer: M.A.K Maschinenbau Kiel GmbH., Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, composite AQ-16

Generators

2x MAN D2876 LE301 main diesel generatorsets each 390 kW

Emergency generator

1x MAN D2866 E diesel generatorset 130 kW

Bow thruster

1x 280 kW

Number of cargo holds

3

Hold 1: 27,30 x 15,20 x 9,09 m

Hold 2: 29,40 x 15,20 x 9,09 m

Hold 3: 18,90 x 12,20 x 11,13 m

Cargo hold capacity

Hold 1: 2.772,00 m³ / 97.892,30 ft³

Hold 2: 3.903,10 m³ / 137.836,70 ft³

Hold 3: 3.616,40 m³ / 127.712,00 ft³

Total: 10.291,5 m³ / 363.441 ft³

Number of hatches

3

Hatch 1: 25,70 x 15,20 x 0,75 m

Hatch 2: 22,40 x 15,20 x 0,75 m

Hatch 3: 17,90 x 15,20 x 0,75 m

Hatch type

Folding type

Max permitted loads

Tanktop: 15,0 t/m²

Hatch 1: 2,20 t/m²

Hatch 2 & 3: 2,50 t/m²

Tank capacities

Fuel oil: 418,3 m³

MDO: 67,8 m³

Ballast: 2.512,7 m³

Fresh water: 69,1 m³

Anchor equipment

Length: 495,00 m

Diameter: 46 mm

Cargo gear

2x MacGregor deck cranes, portside - SWL 36,0 t each, at 26,00 m outreach

Combinable: 72,0 t

2x Peiner-grabs with 8,0 m³

Crew

11

Manager

Briese Dry Cargo GmbH & Co. KG

Hafenstraße 12

26789 Leer

Germany

Previous managers

09/2009 - 03/2012 Feederlines B.V., Groningen - The Netherlands

03/2012 -08/2017 Intership Navigation Co. Ltd., Limassol - Cyprus

Operator

BREB GmbH & Co. KG

Kapitän-Alexander-Str. 16

D-27472 Cuxhaven

Germany

Registered owner

BREB Schifffahrts GmbH & Co. KG MS "Kugelbake"

Leer

Germany

Previous names & owners

09/2009 - 08/2017 UBC Montego Bay - Beheermaatschappij UBC Montego Bay B.V., Groningen - The Netherlands

Latest data adjustment

21 March 2021
