Westerschelde 12 December 2019 |
|
Name |

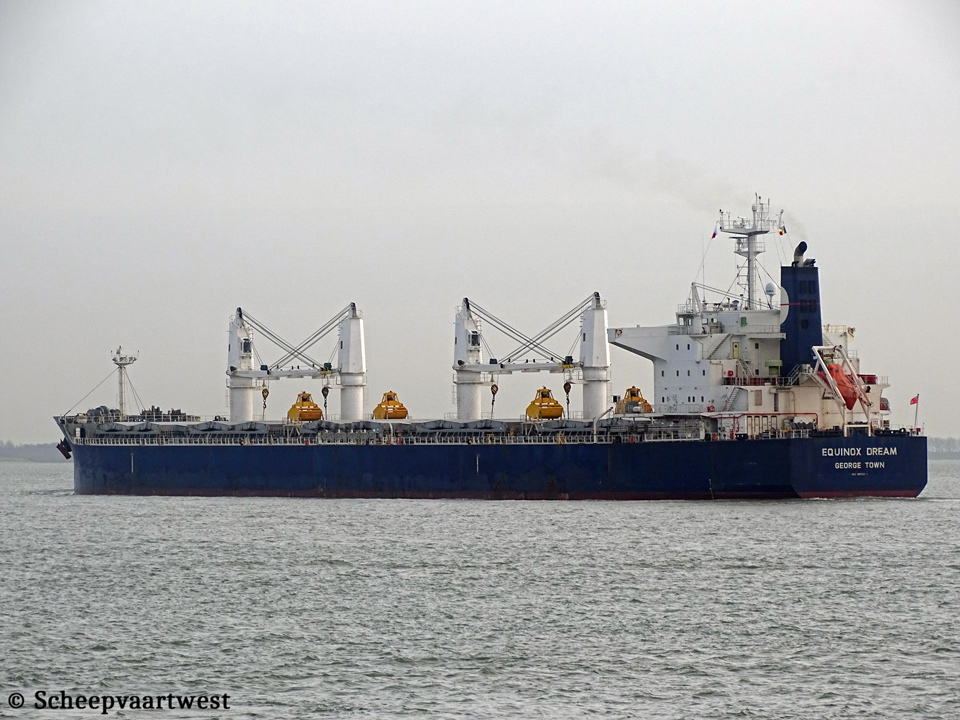

EQUINOX DREAM |
|
Type |
Geared grab fitted bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9503964 |
|
Call sign |
ZGBS8 |
|
Flag |
Cayman Islands |
|
Port of registry |
George Town |
|
GT |
33.232 t registered |
|
DWT |
Summer: 58.680 t |
|
NT |
19.143 t registered |
|
Length |
197,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,68 m |
|
Moulded L x B x D |
194,00 x 32,26 x 18,10 m |
|
Registered L x B x D |
197,00 x 32,26 x 18,10 m |
|
Freeboard |
5.477 mm |
|
Depth |
18,10 m moulded |
|
Speed |
Max: 15,8 knots |
|
Built |
2011 |
|
Keel laid |
09/11/2010 |
|
Launch date |
23/05/2011 |
|
Date of completion |
25/06/2011 |
|
Builder |
Nantong Cosco KHI Ship Engineering Co., Ltd. China |
|
Yard number |
NE082 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Dalian/MAN-B&W -6S50MC-C - 2 Stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.630 kW / 11.750 bhp at 116,0 rpm Manufacturer: Dalian Marine Diesel Co.,Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 3,25 t/h Manufacturer: Aalborg Industries Limited. |
|
Generators |
4x Diesel generatorsets total 2.410 kVA |
|
Number of hold |
5 Hold 1: 18,27 x 18;60 m Hold 2-5: 20,88 x 18,60 m |
|
Cargo hold capacity |
Grain: 73.679 m³ / 2.601.964 ft³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.214 m³ Fresh water: 391 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Grabs: 12,5 t each |
|
Manager |
Equinox Maritime Ltd. Leof. Kifisias 331 Kifisia 145 61 Greece |
|
Registered owner |
East Star Maritime Ltd. Care of Equinox Maritime Ltd. |
|
Latest data adjustment |
09 March 2021 |
