Westerschelde 18 June 2018 |
 |
|
| Westerschelde 18/09/18 | |
|
Name |

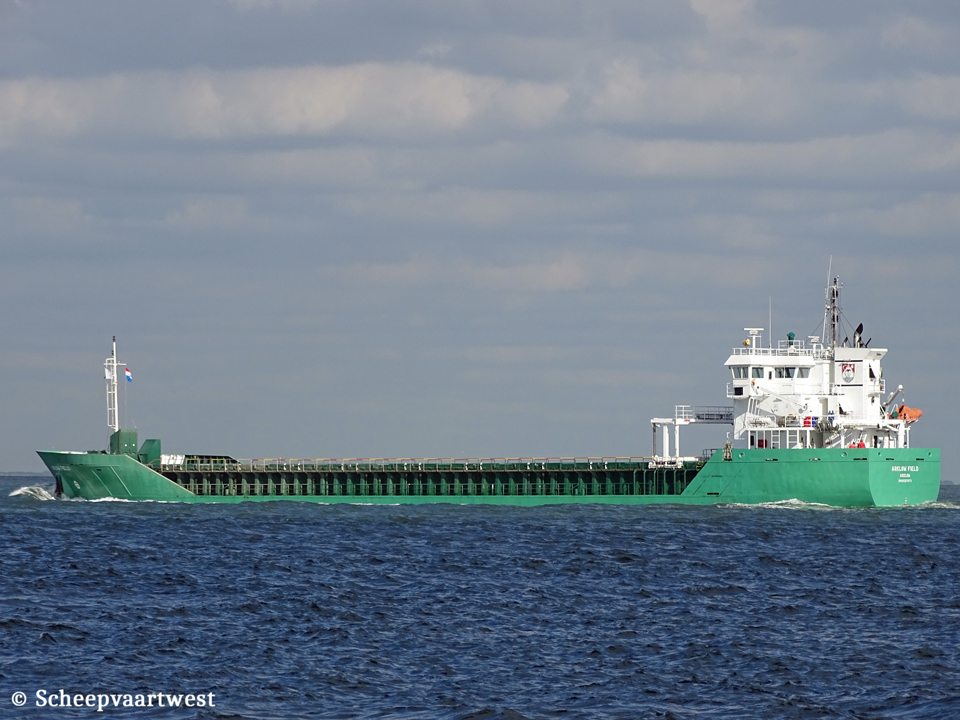

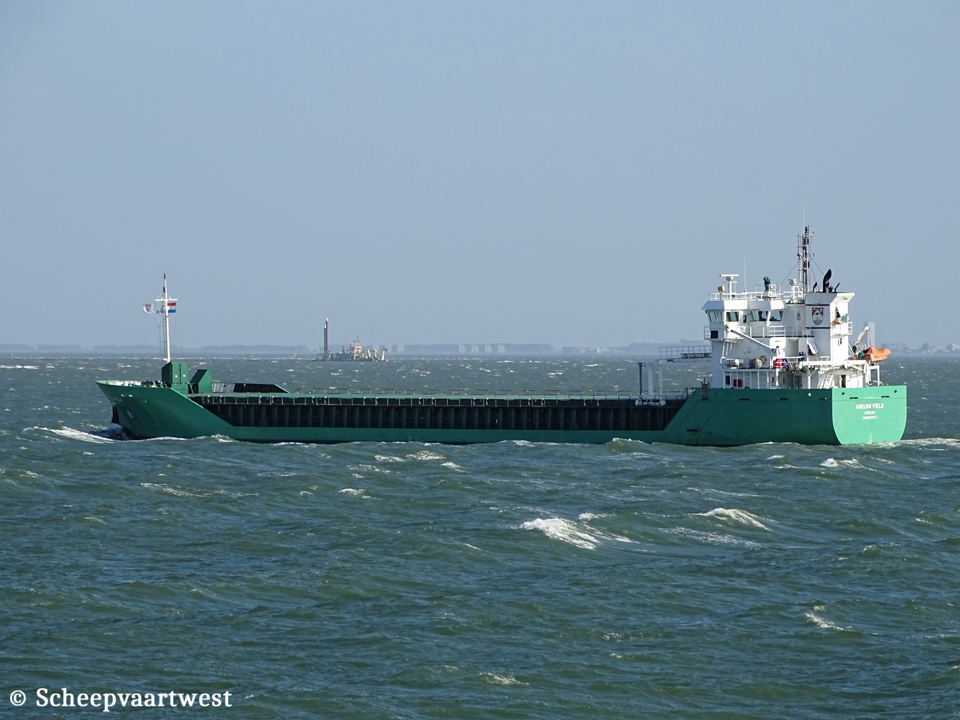

ARKLOW FIELD |
|
Type |
General cargo ship - Heavycargo |
|
IMO-number |
9527673 |
|
Call sign |
EIKQ4 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.998 t |
|
DWT |
Summer: 4.853,5 t Winter: 4.734,5 t |
|
NT |
1.673 t |
|
Displacement |
6.479 t |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,40 m moulded 14,50 m extreme |
|
Draught |
Summer: 6,28 m Winter: 6,14 m Ballast: 3,8 m |
|
Air draft |
Min: 21,70 m |
|
Freeboard |
1.088 mm |
|
Depth |
7,35 m moulded |
|
Speed |
12,5 knots |
|
Built |
2011 |
|
Date of completion |
31/03/2011 |
|
Builder |
Astilleros De Murueta S.A. Guernica Spain |
|
Yard number |
286 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Movable bulkheads |
2x Portable bulkheads may be placed in 10 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L27/38 - 4 stroke 6 cylinder 270 x 380 mm combustion engine 2.040 kW / 2.772 hp at 800 rpm Build: 25/02/2010 Builder: MAN Diesel A/S, Frederikshaven - Denmark |
|
Propelling system |
1x Screw propeller controllable pitch - aft at 154 rpm |
|
Boilers |
1x CHO Viessmann 6;30 m² 4,0 bar |
|
Shaft generator |
1x Shaft alternator Stamford |
|
Generators |
2x Guascor SH74TAB-SG diesel engines each 175 kW at 1.500 rpm connected with Stamford HCM434C2 generators each 190 kVA |
|
Emergency generator |
1x Guascor H33TSG diesel engine 50 kW at 1.500 rpm connected with Stamford UCM224G2 generator 60 kVA |
|
Bow thruster |
1x Electric bow thruster 250 kW |
|
Number of holds |
1 51,30 x 11,70 x 8,43 m |
|
Cargo hold capacity |
6.056 m³ / 213.855,53 ft³ incl. bulkheads 6.074 m³ / 214.491,16 ft1 excl. bulkheads |
|
Hold ventilation |
Mechanical Ventilation 6 changes/h |
|
Number of hatches |
1 |
|
Hatch type |
Coops & Nieborg pontoon system |
|
Max permitted loads |
Hatch cover: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 2.030 t HFO: 165 t Gad oil: 37 t Fresh water: 46,8 t Lub oil: 12,1 t |
|
Crew size |
7 |
|
Manager |
Arklow Shipping North Quay Arklow Ireland |
|
Owner |
Arklow Shipping North Quay Arklow Ireland |
|
Latest data adjustment |
05 March 2021 |
