Spijkenisse 13 July 2020 |
|
Name |

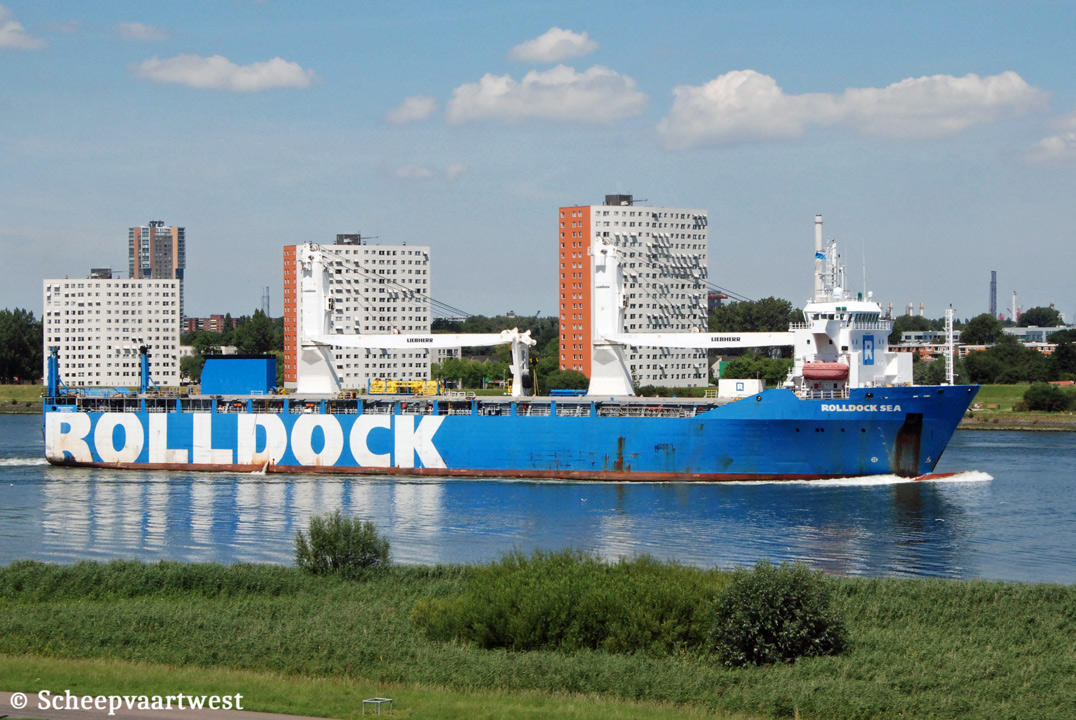

ROLLDOCK SEA |
|
Type |
Semi-submersible heavy lift ro-ro multi purpose dry cargo ship - Equipped for carriage of containers - Equipped for carriage of ro-ro-cargo - Strengthened for heavy cargo |
|
IMO-number |
9404704 |
|
Call sign |
PBPF |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
12.802 t |
|
DWT |
Summer: 6.879,78 t |
|
NT |
3.841 t |
|
Number of 20ft containers |
830 |
|
Length |
140,66 m overall 130,20 m between perpendiculars |
|
Breadth |
24,08 m extreme |
|
Draft |
Max: 5,67 m Min: 4,50 m |
|
Depth |
5,90 m to main deck |
|
Speed |
Max: 16,0 knots |
|
Built |
2011 |
|
Keel laid |
26/03/2007 |
|
Launch date |
17/04/2010 |
|
Delivery date |
24/05/2011 |
|
Builder |
Larsen & Toubro Ltd. Heavy Engineering Division Hazira Works Surat India |
|
Yard number |
81002 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x Wärtsilä 9L32 - 4 stroke single acting9 cylinder 320 x 400 mm combustion engines total 9.000 kW / 12.230 bhp at 750 rpm Manufacturer: Wärtsilä NSD Finland OY, Turku - Finland |
|
Propellers |
2x Controllable pitch propellers |
|
Boilers |
2x Thermal oil heater, exhaust heated AKH 0,6/50 1x Thermal oil heater, oil fired KOH 0,5/25 |
|
Shaft generator |
2x 875 kVA |
|
Generators |
3x Caterpillar C18 DI-TTA - 4 stroke 6 cylinder 145 x 183 mm diesel generatorsets each 530 kW / 625 kVA |
|
Emergency generator |
1x Caterpillar 3406C DI-TA diesel generatorset 305 kVA |
|
Bow thruster |
1x Wärtsilä 700 kW |
|
Number of holds |
1 116,20 x 19,00 x 8,10 m |
|
Hold capacity |
17.000 m³ |
|
Ro-Ro stern ramp |
19,00 x 9,50 m excluding 2,00 m flaps Capacity: Allowing RO-RO cargo upto 4.000 t unit weight depending on cargo configuration |
|
Submerged draft of vessel |
12,50 m |
|
Submerged draft in hold |
6,60 m |
|
Max permitted loads |
Tanktop: 12,0 t/m² Hatch covers: 7,0 t/m² |
|
Anchor equipment |
Length: 577,50 m Diameter: 56 mm |
|
Cargo gear |
2x Liebherr cranes - SWL 350 t each Combi: 700 t Main hoist: 350 t @ 18,00 m & 200 t @ 33,00 m Aux. hoist: 45 t @ 36,20 m |
|
Crew |
16 |
|
Manager |
RollDock Shipping B.V. Fascinatio Boulevard 1242 2909 VA Capelle aan den IJssel The Netherlands |
|
Registered owner |
Rolldock NB 2 B.V. Rotterdam The Netherlands |
|
Latest data adjustment |
10 February 2021 |
