Westerschelde 11 June 2020 |
|
Name |

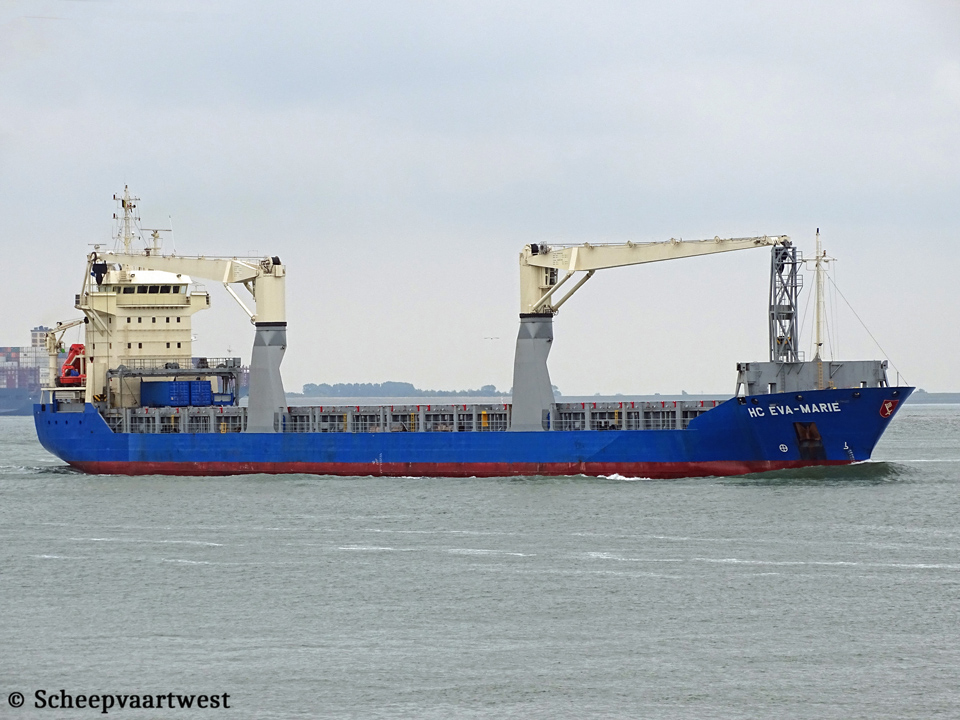

HC EVA-MARIE |
|
Previous names |
2007 Launch as: Yepa 10/2007 - 10/2007 Maxima 10/2007 - 04/2008 Nordana Maxima 04/2008 - 11/2013 Maxima |
|
Type |
Multi-purpose geared dry cargo ship strengthened for heavy cargo and equipped for carrying container |
|
Main products |
Bulk cargo, heavy lift cargo, general cargo, dangerous goods and project cargo |
|
IMO-number |
9369071 |
|
Call sign |
V2GM7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
2007 - 2007 Antigua & Barbuda, St. John’s - Call sign V2C48 2007 - 2010 Netherlands Antilles, Willemstad - Call sign: PJZZ 2010 - 2013 Curaçao, Willemstad - Call sign: PJZZ |
|
GT |
7.878 t |
|
DWT |
Summer: 11.104 t |
|
NT |
3.909 t |
|
Number of 20ft containers |
In hold: 302 On deck: 269 Total: 671 |
|
Container capacity 14t |
421 |
|
Reefer plugs |
60 |
|
Length |
145,63 m overall 139,33 m between perpendiculars |
|
Breadth |
18,36 m extreme 18,25 m moulded |
|
Draught |
Summer: 7,45 m |
|
Depth |
10,30 m moulded |
|
Speed |
14,2 knots |
|
Built |
2007 |
|
Delivery date |
08/10/2007 |
|
Builder casco |
Damen Shipyards Yichang Yichang China |
|
Builder completion |
B.V. Scheepswerf Damen Gorinchem The Netherlands |
|
Yard number |
567303 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M32C - 4 stroke single acting 9 cylinder 320 x 480 mm combustion engine 4.320 kW / 5.873 bhp at 600 rpm Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
3x Caterpillar 3412C - 4 stroke 12 cylinder 137 x 152 mm diesel generatorsets each 382 kW |
|
Bow thruster |
650 kW |
|
Number of holds |
2 Hold 1: 38,96 x 13,15 x 11,05 m Hold 2: 65,42 x 13,15 x 11,05 m all heights without tweendeck |
|
Cargo hold capacity |
Bale/Grain: Hold 1: abt 189.556 ft³ / 5.368 m³ Hold 2: abt 333.329 ft³ / 9.439 m³ total: 14.694 m³ / 518.900 ft³ without tweendecks |
|
Number of hatches |
Hatch 1: 38,96 x 13,15 m Hatch 2: 65,42 x 13,15 m |
|
Hatches type |
16x Pontoons |
|
Floor space |
Weatherdeck / Tweendeck / Tanktop Hold1: 365 m² / 350 m² / 315 m² Hold2: 673 m² / 708 m² / 731 m² |
|
Max permitted loads |
Tanktop: abt 20,0 t/m² Tweendeck load: 3,5 t/m² Weatherdeck load: 1,75 t/m² |
|
Cargo gear |
2x Liebherr cranes starboardside mounted, each of abt 80,0 t lifting capacity at 16,00 m outreach Combinable upto 160 t |
|
Crew |
12 |
|
Manager |
IMM Shipping GmbH & Co. K.G. Hamburger Str. 131 22926 Ahrensburg Germany |
|
Previous managers |
2007 - 2007 Intersee Schiffahrtsgesellschaft mbH. & Co K.G. (Hermann Schöning), Haren/Ems - German Federal Republic 2007 - 2013 Transship Management C.V., Emmen - The Netherlands |
|
Registered owner |
HC Eva-Marie Schifffahrts UG (haftungsbeschrankt) & Co. KG. Ahrensburg Germany |
|
Previous names & owners |
10/2007 - 10/2007 Maxima - Yepa Schiffahrts G.m.b.H & Co. KG., Haren/Ems - Germany 10/2007 - 04/2008 Nordana Maxima - Maxima Shipping B.V., Willemstad (NA) - Netherlands Antilles 04/2008 - 10/2010 Maxima - Maxima Shipping B.V., Willemstad (NA) - Netherlands Antilles 10/2010 - 11/2013 Maxima - Maxima Shipping B.V., Willemstad (Curaçoa) - Curaçoa |
|
Latest data adjustment |
07 December 2020 |
