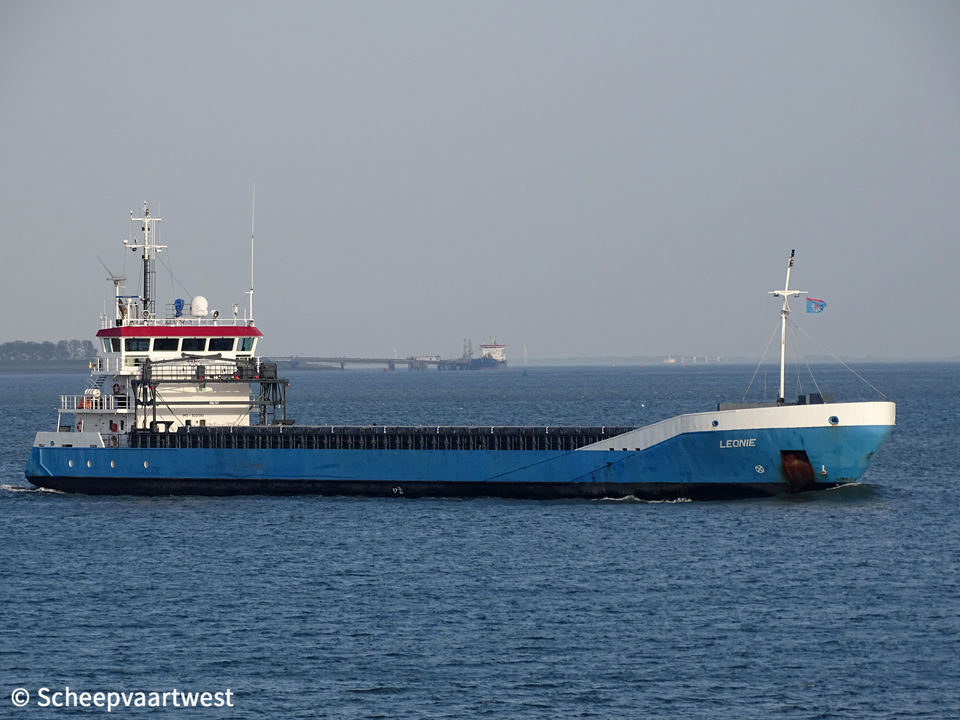

Leonie IMO 9331361 01

Westerschelde 17 April 2020

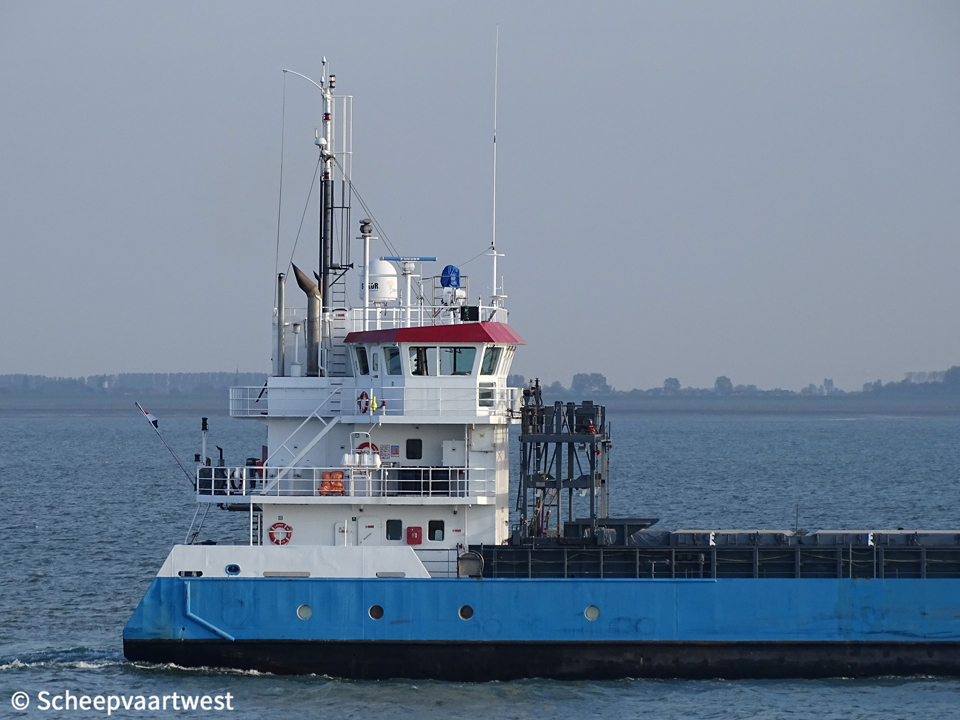

Leonie IOM 9331361 02
Westerschelde 17/04/20













Name

LEONIE

Type

Multi-purpose Singledecker, open hatch fully box, double skinned

Strengthened for heavy cargoes - Container cargoes

IMO-number

9331361

Call sign

PHLE

Flag

The Netherlands

Port of registry

Spijk

GT

2.528 t

DWT

Summer: 3.638 t

DWCC

Summer: 3.350 t

NT

1.053 t

Number of 20ft containers

157

Length

88,99 m overall

84,95 m between perpendiculars

Breadth

12,50 m moulded

Draught

Max: 5,30 m

Air draft

22,45 m in ballast

Depth

8,00 m moulded

Speed

Max: 13,0 knots

Service: 105 knots

Built

2007

Launch date

11/03/2007

Date of completion

13/09/2007

Builder cargo

Leda d.o.o.

Korcula

Croatia

Builder completion

Peters Scheepswerf B.V.

Kampen

The Netherlands

Yard number

1208

Hull material

Steel

Hull type

Double skinned

Continuous decks

1

Main engine

1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder combustion engine 1.800 kW / 2.413 bhp at 1.500 rpm

Propellers

1x Controllable pitch propeller

Bow thruster

250 kW

Number of holds

1x Fully box and double skinned

60,00 x 10,30 x 8,15 m

Cargo hold capacity

Grain a bale: 4.927 m³ / 174.063 ft³

Hold ventilation

6x Air changes per hour basis empty hold

Hold is fitted with dehumidifier system

Number of hatches

1

60,00 x 10,30 m

Tank capacities

MGO: 285 m³

Water ballast: 1.466 m³

Fresh water: 25 m³

Manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Registered owner

Jan H.M. van Dam

Spijk

The Netherlands

Latest data adjustment

28 October 2020
