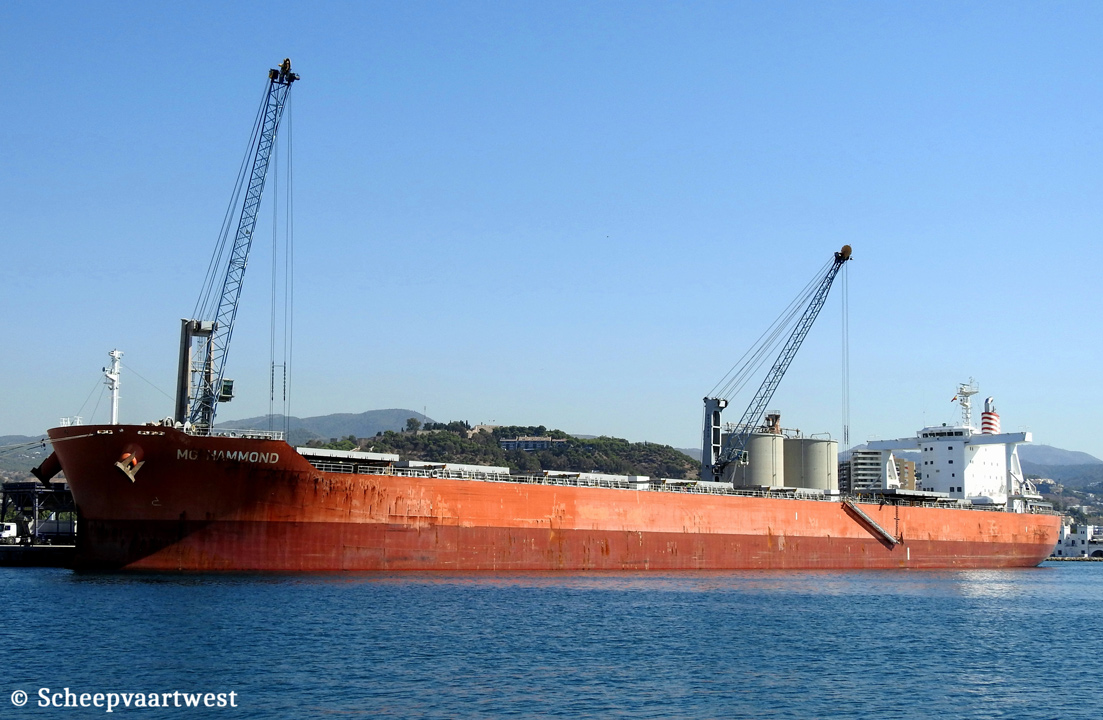

MG Hammond IMO 9748045 01

Malaga, Spain 07 September 2020



Name

MG HAMMOND

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9748045

Call sign

3FMJ5

Flag

Republic of Panama

Port of registry

Panama City

GT

45.252 t registered

DWT

84.858 t

NT

28.894 t registered

Length

228,96 m overall

Breadth

35,00 m moulded

Draught

Summer: 14,47 m

Moulded L x B x D

223,00 x 35,00 x 19,90 m

Registered L x B x D

223,42 x 35,00 x 19,90 m

Freeboard

Summer: 5.480 mm

Depth

19,90 m moulded

Speed

Service: 14,5 knots

Max: 15,9 knots

Built

2016

Keel laid

28/04/2015

Launch date

02/10/2015

Date of completion

15/01/2016

Builder

Imabari Shipbuilding Co., Ltd., Saijo Shipyard

Japan

Yard number

8178

Hull material

Steel

Main engine

1x MAN-B&W/Hitachi 6S60ME-C7 - 2 Stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 9.000 kW at 82,0 rpm

Manufacturer: Hitachi Zosen Corporation Ariake Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 570 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 3,30 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Main diesel generatorsets each 480 kW

Number of cargo holds

7

Cargo hold capacity

Grain: 100.702,88 m³

Tank capacities

Fuel oil: 3.141,72 m³

Fresh water: 384,38 m³

Manager

World Marine Co., Ltd.

Kanpai Building 9F 22-27, Higashi Gotanda 5-Chome,

Shinagawa-ku

Tokyo 141-0022

Japan

Registered owner

Taiei Naviera SA

Latest data adjustment

23 November 2020
