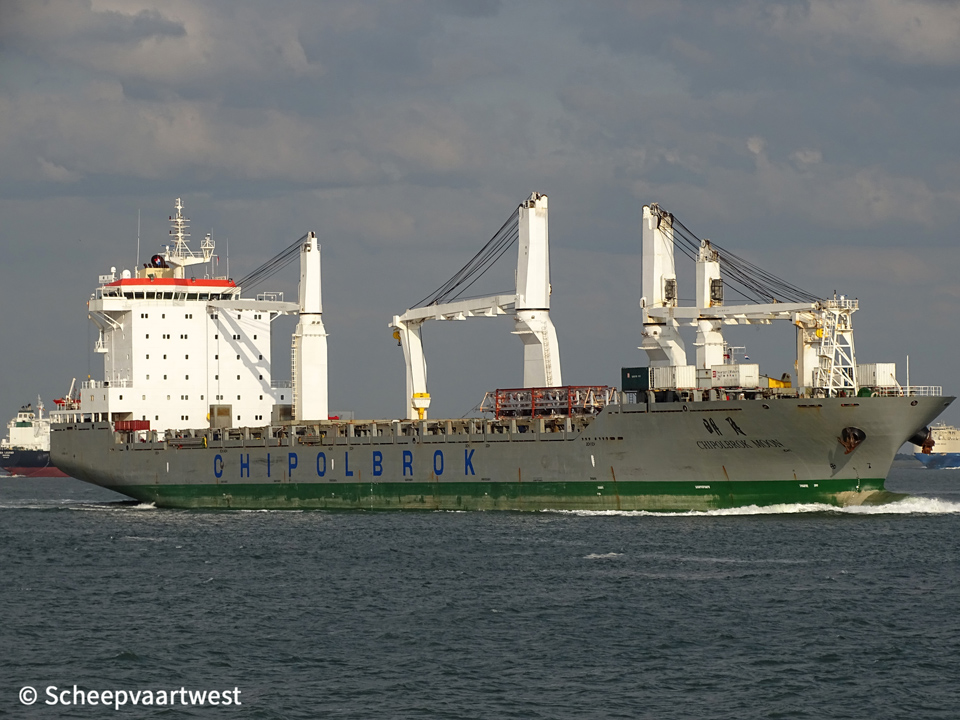

Chipolbrok Moon 01

Westerschelde 06 August 2019

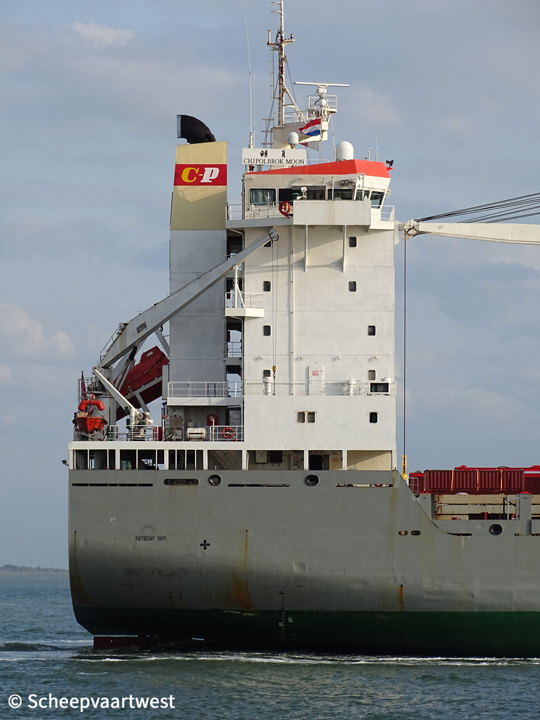

Chipolbrok Moon 02
WS 06/08/19













Name

CHIPOLBROK MOON

Type

General dry cargo ship - Equipped with container securing arrangement - Strengthened for heavy cargoes

IMO-number

9272216

Call sign

VRZT3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

24.167 t

DWT

Summer: 30.435 t

NT

10.714 t

Number of 20ft containers

On deck: 1.108

In hold: 796

Total: 1.904

Reefer capacity

50

Length

199,80 m overall

189,00 m between perpendiculars

Breadth

27,80 m moulded

Draught

Summer: 10,30 m

Forecastle

44,50 m

Poop

20,25 m

Freeboard

4.524 mm

Depth

15,50 m moulded

Speed

Max: 19,2 knots

Built

2004

Date of completion

30/04/2004

Builder

Shanghai Shipyard

China

Yard number

SS193

Hull material

Steel

Hull type

Double hull

Bulkheads

7

Main engine

1x HHI/Sulzer 7RT-Flex60C - 2 stroke 7 cylinder combustion engine 16.520 kW at 114,0 rpm

Build: 01/05/2003

Builder: Hyundai Heavy Ind. Co., Ltd. Engine& Machinery Division, Ulsan - South Korea

Propellers

1x Fixed propeller

Generators

3x AMG 450 L8 diesel generatorsets each 960 kW - 450

Bow thruster

1x 900 kW

Number of holds

9

Cargo hold capacity

NO.1 Lower Hold: 1.594,77 m³

NO.1 Lower Tweendeck: 1.144,68 m³

NO.1 Upper Tweendeck: 2.638,54 m³

NO.2 Hold(P): 4.067,36 m³

NO.2 Hold(S): 4.067,36 m³

NO.3 Hold(P): 5.271,69 m³

NO.3 Hold(S): 5.271,69 m³

NO.4 Hold(P): 5.226,69 m³

NO.4 Hold(S): 5.226,69 m³

NO.5 Lower Hold(P): 803,26 m³

NO.5 Lower Hold(S): 805,49 m³

NO.5 Lower Tweendeck(P): 831,98 m³

NO.5 Lower Tweendeck(S): 837,56 m³

NO.5 Upper Tweendeck(P): 1.173,79 m³

NO.5 Upper Tweendeck(S): 1.181,37 m³

Total: 40.142,92 m³

Number of hatches

15

4x 31,60 x 10,50 m

2x 25,28 x 10,50 m

1x 18,96 x 19,17/12,95 m

1x 18,96 x 16,06/8,92 m

1x 18,96 x 12,95/5,05 m

2x 12,64 x 11,45 m

2x 12,64 x 10,15/7,68 m

2x 12,64 x 10,15 m

Tank capacities

Ballast: 11.591 t

Fuel oil: 2.741 t

Diesel oil: 175,4 m³

Lub oil: 142,6 m³

Fresh water: 275,5 m³

Cargo gear

2x MacGregor cranes - SWL 320,0 t each

2x MacGregor cranes - SWL 50,0 t each

Grabs: 20,0 t

Crew size

28

Manager

Chipolbrok Shanghai

55 Yan An Road E

Shanghai

China

Operator

Chinese Polish Joint Stock Shipping Company

Registered owner

Chipolbrok Moon Maritime Co.,Ltd .

Latest data adjustment

27 September 2020
