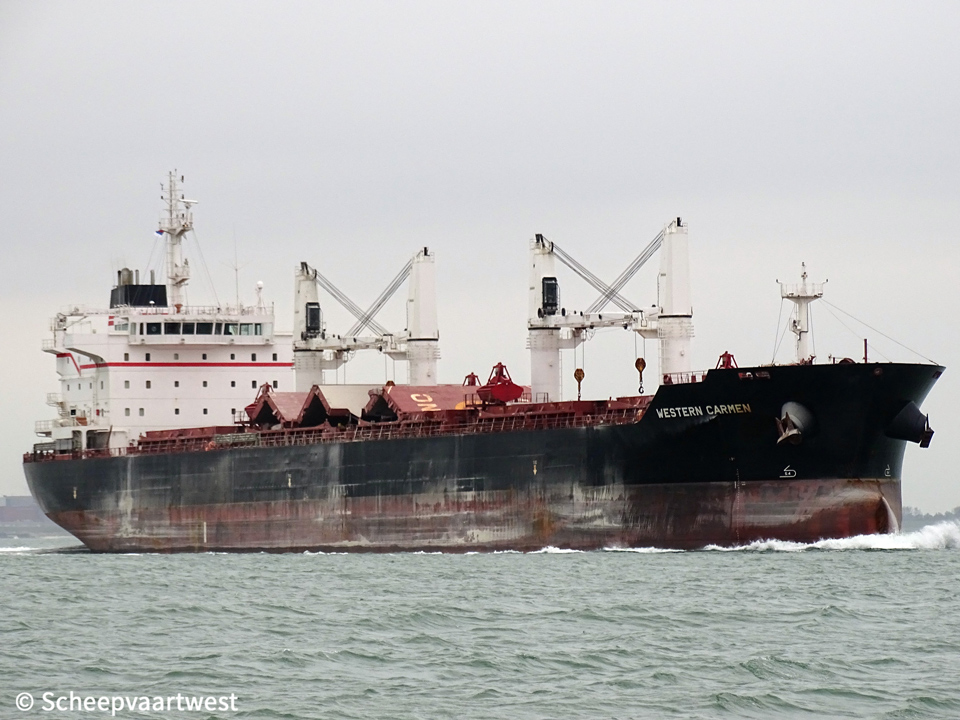

Western Carmen 01

Westerschelde 28 October 2016



Name

WESTERN CARMEN

Type

Bulk carrier - Handymax

IMO-number

9609720

Call sign

5BVZ3

Flag

Cyprus

Port of registry

Limassol

GT

22.668 t

DWT

Summer: 37.000 t

NT

11.856 t

Length

187,00 m overall

178,00 m between perpendiculars

Breadth

28,60 m

Draught

Summer: 10,40 m

Freeboard

5.216 mm

Depth

15,60 m

Speed

Max: 14,3 knots

Built

2013

Keel laid

15/11/2012

Launch date

14/01/2013

Date of completion

30/04/2013

Builder

Hyundai Mipo Dockyard Co., Ltd.

South Korea

Yard number

6112

Hull material

Steel

Hull type

Single hull - Double bottom

Watertight compartments

8

Continuous decks

1

Main engine

1x HHI/MAN-B&W 6S46 MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.700 kW / 10.462 hp at 120,0 rpm

Build: 12/1/2012

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div. , Ulsan - South Korea

Propellers

1x Screw propeller solid - aft at 120,0 rpm

Boilers

1x CHM 238,86 m² / 8,8 bar

Generators

3x Main diesel generatorsets each 675 kVA - 540 kW - 781 hp

Emergency generator

1x Diesel generatorset 150 kVA - 120 kW - 177 hp

Number of holds

5

Total capacity of holds

Hold 1: grain: 9.004,2 m³ / bale: 8.689,1 m³

Hold 2: grain: 10.434,2 m³ / bale: 10.069,0 m³

Hold 3: grain: 10.088,7 m³ / bale: 9.735,6 m³

Hold 4: grain: 10.444,5 m³ / bale: 10.078,9 m³

Hold 5: grain: 9.715,5 m³ / bale: 9.375,5 m³

Total: grain: 49.687,1 m³ / bale: 47.948,1 m³

Number of hatches

5

Hatch 1: 14,22 x 15,90 m

Hatches 2-5: 18, 96 x 15,90 m

Max permitted loads

Tanktop:

Hold:1,3,5: 18,9 t/m²
Hold: 2,4: 15,8 t/m²

Tank capacities

Fuel oil: 1.486,8 m³

MDO: 243,7 m³

Ballast: 12.412,9 m³

Fresh water: 222,0 m³

Lifting equipment

2x Provision crane - SWL 3,0 t each

Cargo gear

4x Deck cranes: - SWL 30,5 t each

Crew size

19

Manager

Westlake SA

Eue Du Rhone 30

1204 Geneva

Switzerland

Registered owner

Svarga Marine Limited

Care of Westlake SA

Eue Du Rhone 30

1204 Geneva

Switzerland

Latest data adjustment

15 September 2020
