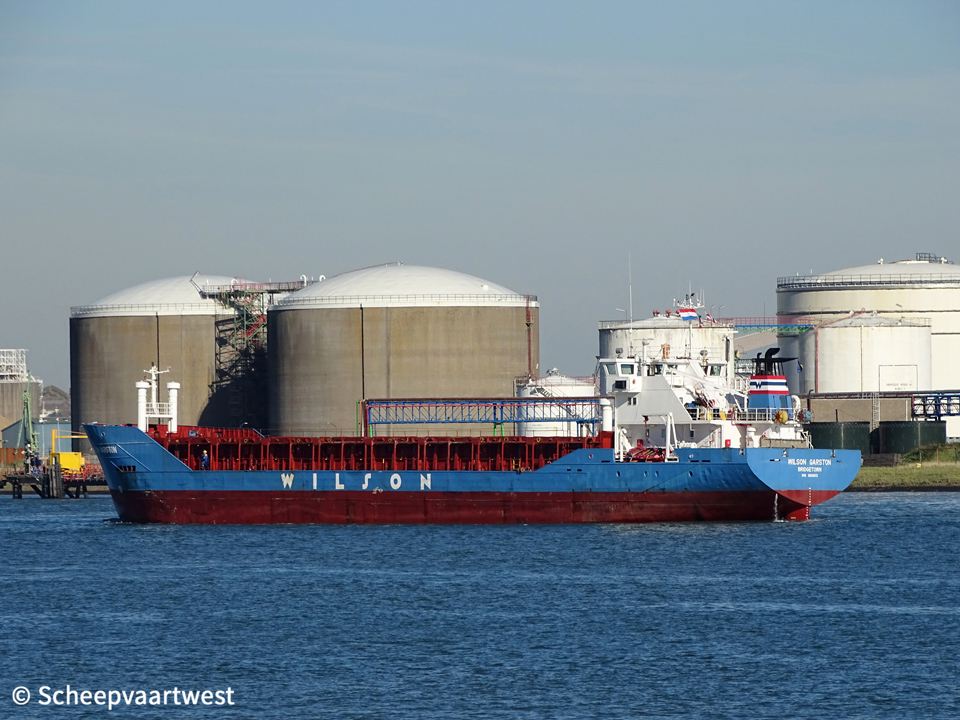

Wilson Garston 01

Westerschelde 26 September 2018



Name

WILSON GARSTON

Previous names

1989 - 05/2003 Pionier

10/2003 - 10/2005 Hanseatic Sun

Type

General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9000833

Call sign

8PSO

Flag

Barbados

Port of registry

Bridgetown

GT

2.270 t

DWT

Summer: 3.560 t

Winter: 3.415 t

NT

1.196 t

Number of 20ft containers

In hold: 94

On deck: 88

Total: 182

Length

82,30 m overall

78,90 m between perpendiculars

Breadth

12,58 m extreme

Draught

Summer: 5,71 m

Winter: 5,57 m

Keel to top antenna fwd/aft

21,20 m / 24,20 m

16,20 m / 18,20 m

Depth

7,20 m moulded

Speed

11,0 knots

Built

1989

Keel laid

11/04/1989

Launch date

02/09/1989

Date of completion

01/10/1989

Builder

Schiffsw. Hugo Peters Wewelsfleth Peters & Co. GmbH

Wewelsfleth

Germany

Yard number

631

Hull material

Steel

Main engine

1x Wärtsilä-Wichmann 6L28B - 6 cylinder combustion engine 1.200 kW / 1.631 bhp at 600 rpm

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired

Shaft generator

1x 750kVA

Generators

1x Scania DS 11 - 4 stroke 6 cylinder 127 x 145 diesel generatorset 250 kW at 1.800 rpm

Emergency generator

1x Deutz F6L 912 - 4 stroke 6 cylinder 100 x 120 diesel generatorset 88 kW at 1.800 rpm

Builder: Klöckner-Humboldt-Deutz AG

Bow thruster

1x Jastram type 20F - 160 kW

Number of holds

1

53,40 x 10,20 x 8,15 m

Cargo hold capacity

Bale/grain:

4.392 m³ / 155.102 ft³

Number of hatches

1

52,20 x 10,20 m

Hatch type

Multi - stacking rolling covers, system piggy back (Macor Marine)

Max permitted loads

Deck/hatch covers: 1,54 t/m²

Tanktop: 11,1 t/m²

Tank capacities

Ballast: 1.411,5 m³

MGO: 215 m³

Anchor equipment

Length: 412,50 m

Diameter: 30 mm

Manager

Wilson Ship Management AS

Bergen

Norway

Registered owner

Wilson Shipowning AS

C/o Wilson Euro Carriers AS

Bergen

Norway

Previous names & owners

1989 - 05/2003 Pionier - MS Pionier Wolter Schiffahrtsges. mbH & Co., Wewelsfleth - Germany

10/2003 - 10/2005 Hanseatic Sun - Hanseatic Schiffahrts GmbH & Co - Gibraltar

Latest data adjustment

12 September 2020
