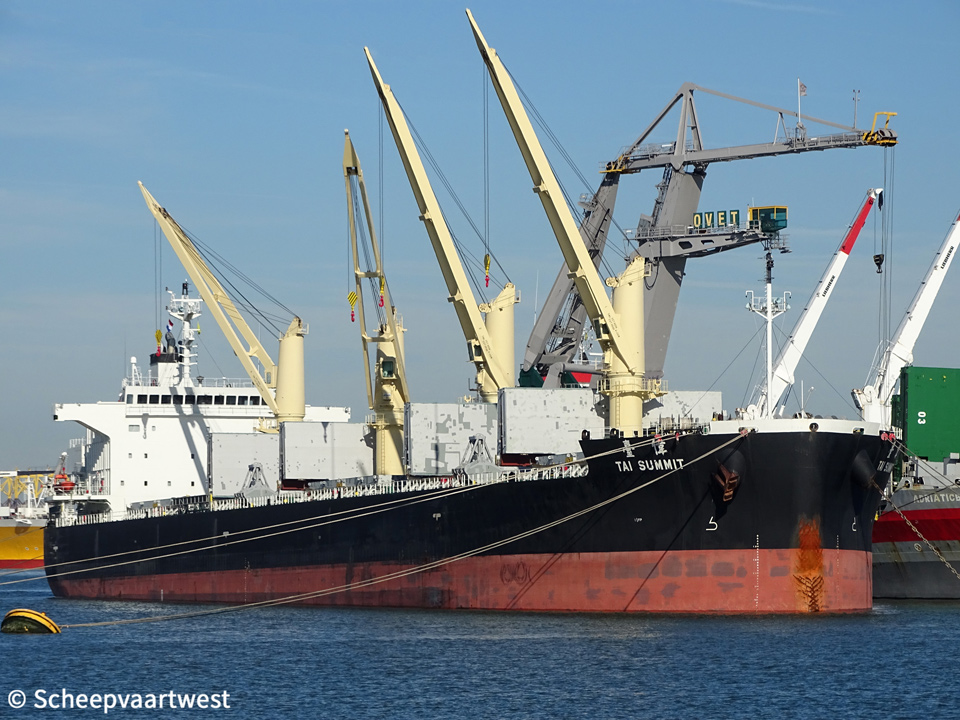

Tai Summit 01

Vlissingen 26 September 2018



Tai Summit 02
Vlissingen 26/09/18













Name

TAI SUMMIT

Type

Bulk carrier - Carriage of dangerous goods - Handymax

IMO-number

9727144

Call sign

3FZX4

Flag

Republic of Panama

Port of registry

Panama City

GT

34.009 t

Suez: 34.968,1 t

DWT

Summer: 60.618 t

NT

19.892 t

Suez: 31.916,75 t

Panama: 28.178,31 t

Displacement

70.903 t

Length

199,98 m overall

196,00 m between perpendiculars

Breadth

32,26 m moulded

Draught

Summer: 12,85 m

Freeboard

5.536 mm

Speed

Max: 14,3 knots

Built

2016

Keel laid

15/09/2015

Launch date

18//12/2013

Delivery date

18/04/2016

Builder

Oshima Shipbuilding Co., Ltd.

1605-1 Oshima-Cho

Saikai City, 857-2494

Japan

Yard number

10771

Hull material

Steel

Hull type

Double bottom

Main engine

1x Mitsui/MAN-B&W 6S50ME-B9.3 - 6 cylinder 500 x 2.214 mm combustion engine 7.260 kW at 99,0 rpm

Manufacturer: Mitsui Engr. & Shipbuilding Co., Ltd.

Propellers

1x Fixed pitch solid keyless propeller - 4 blades

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary boiler - 6,9 Mpa

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

3x Main diesel generatorsets each 570 kW

Manufacturer: Taiyo Electric Co., Ltd.

Number of holds

5

Cargo hold capacity

Grain: 76.578 m³

Bale: 75.096 m³

Number of hatches

5

Tank capacities

Fuel oil: 2.042 m³

Ballast: 33.688 m³

Fresh water: 369 m³

Diesel oil: 21 m³

Lube oil: 97,6 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manufacturer: Iknow Machinery Co., Ltd.

Crew

23

Registered owner

Tai Shing Maritime Co., SA

c/o Taiwan Navigation Co Ltd, 29, Jinan Road, Section 2, Zhongzheng District, Taipei City, 10054, China

Republic of Taiwan

Latest data adjustment

11 September 2020
