Name |

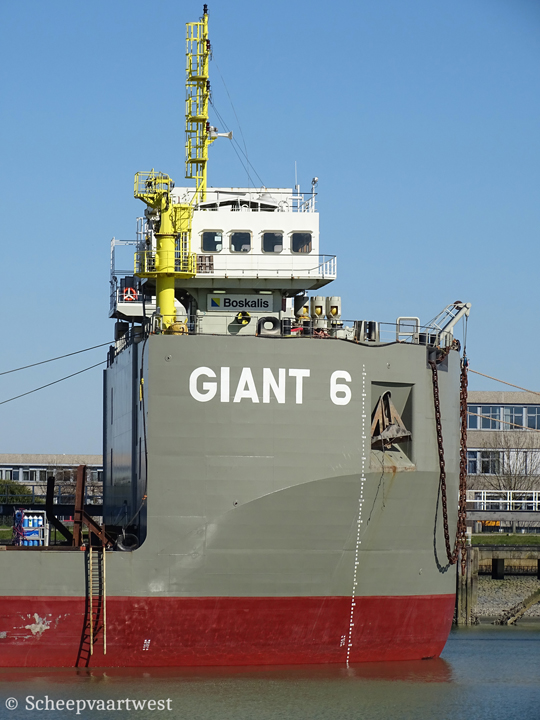

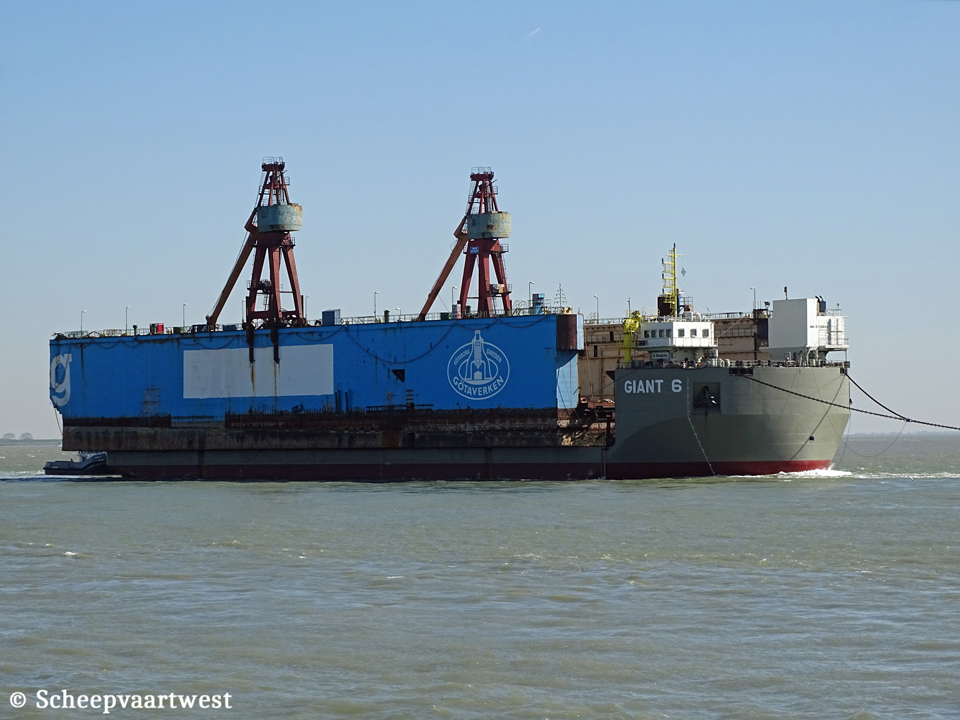

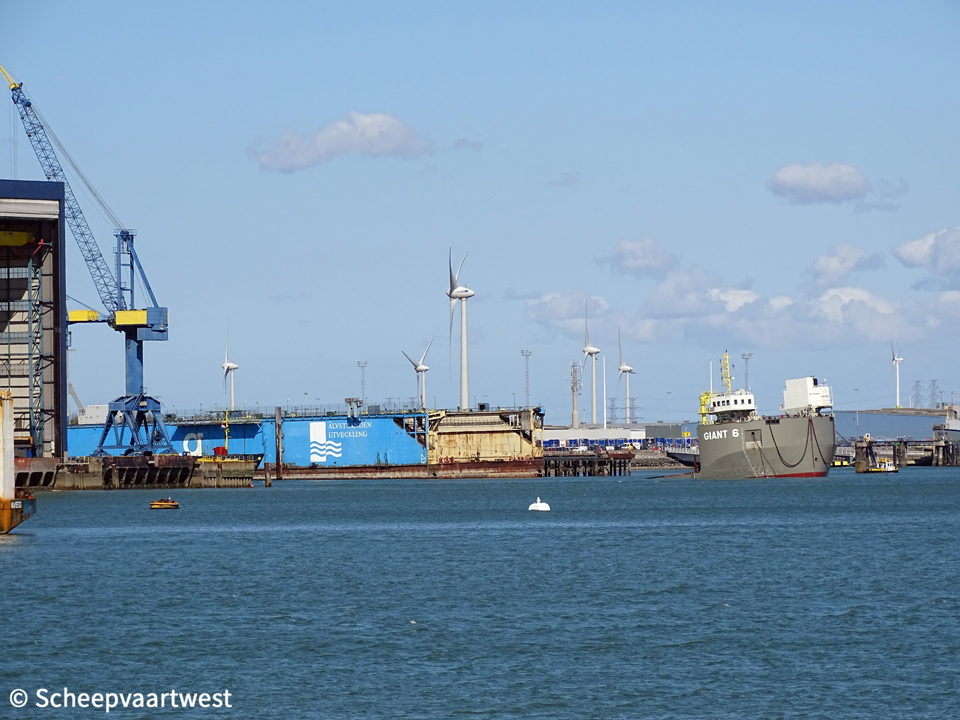

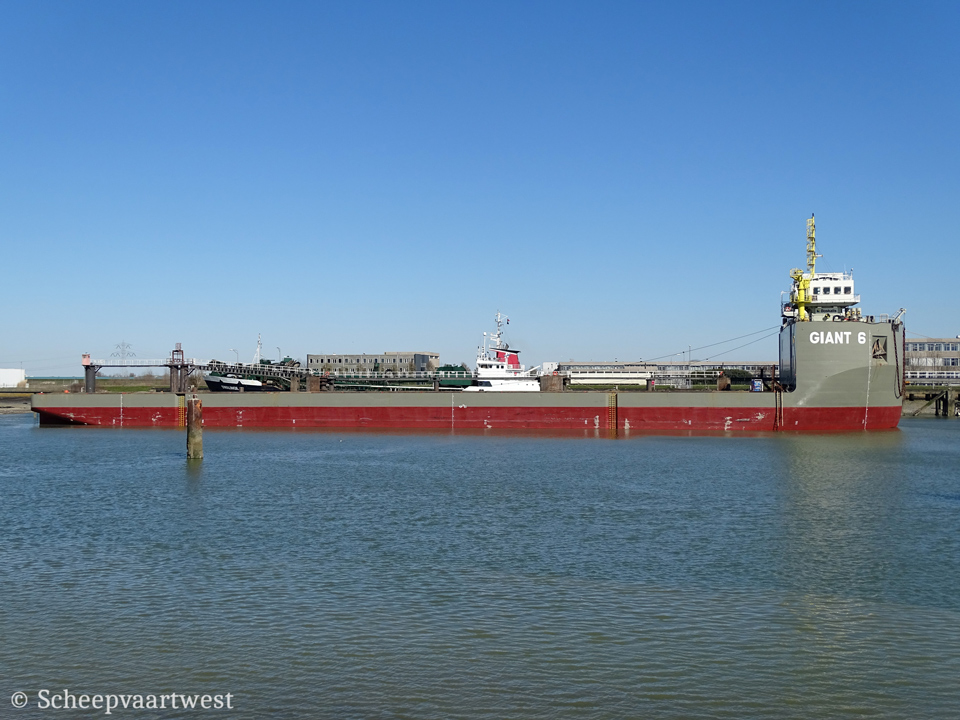

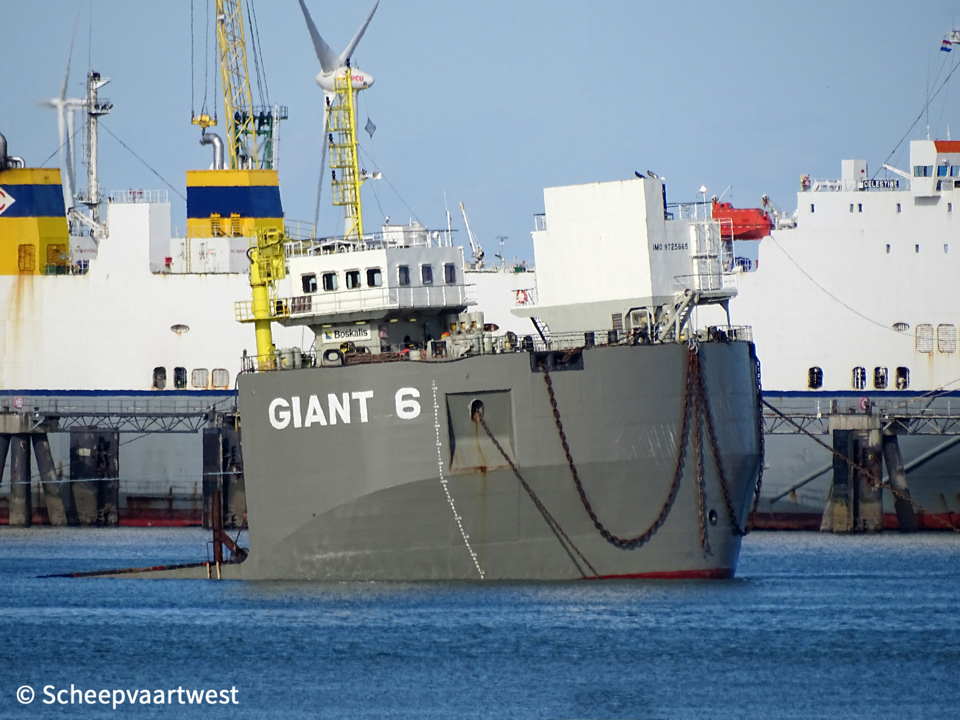

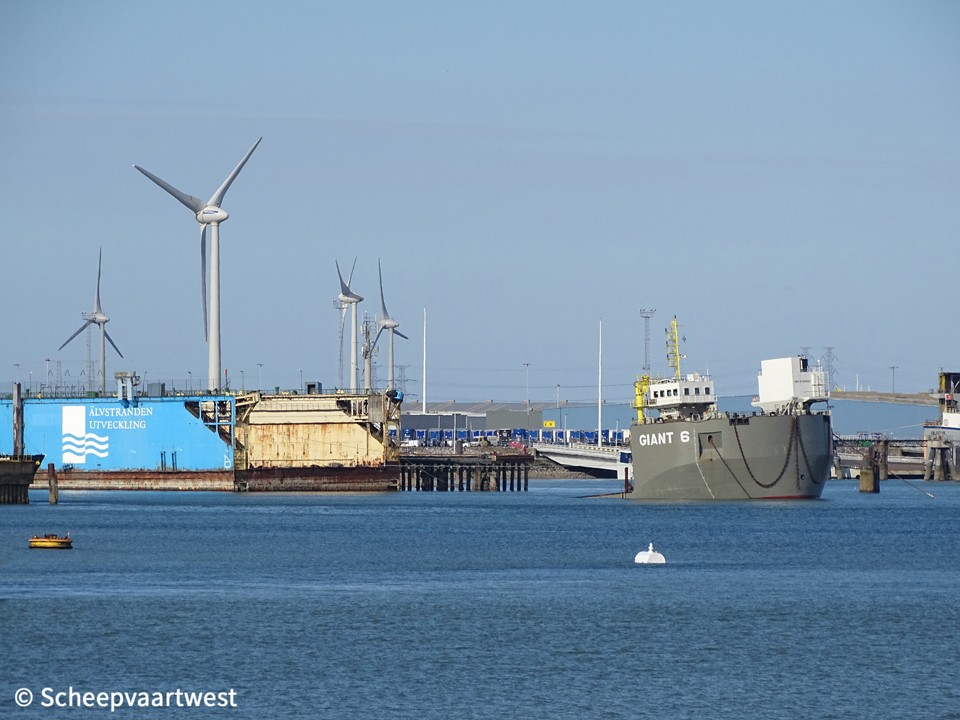

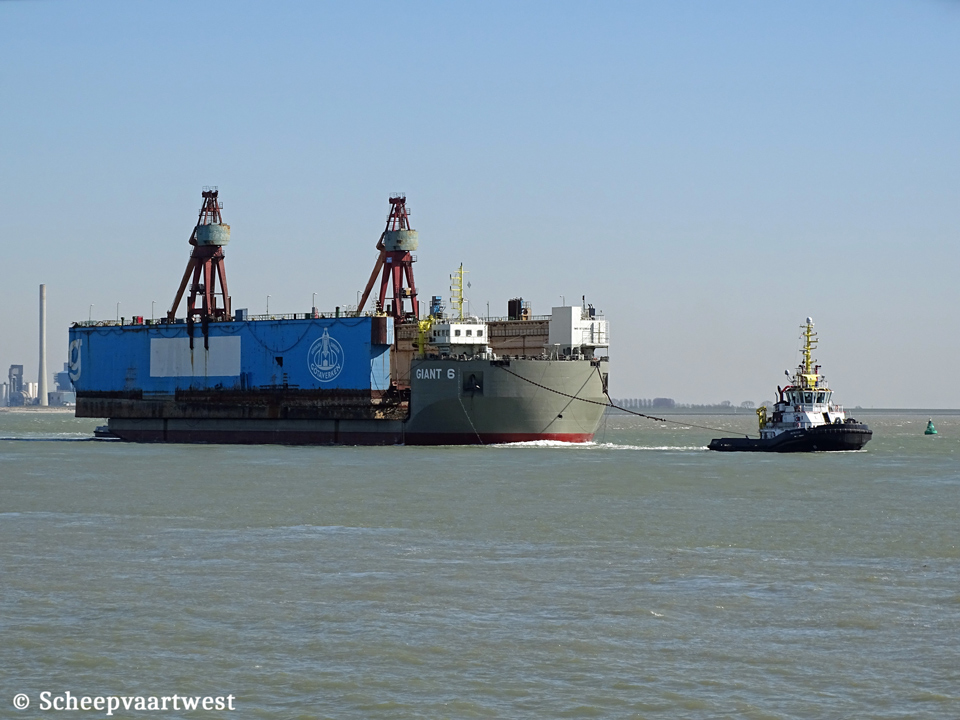

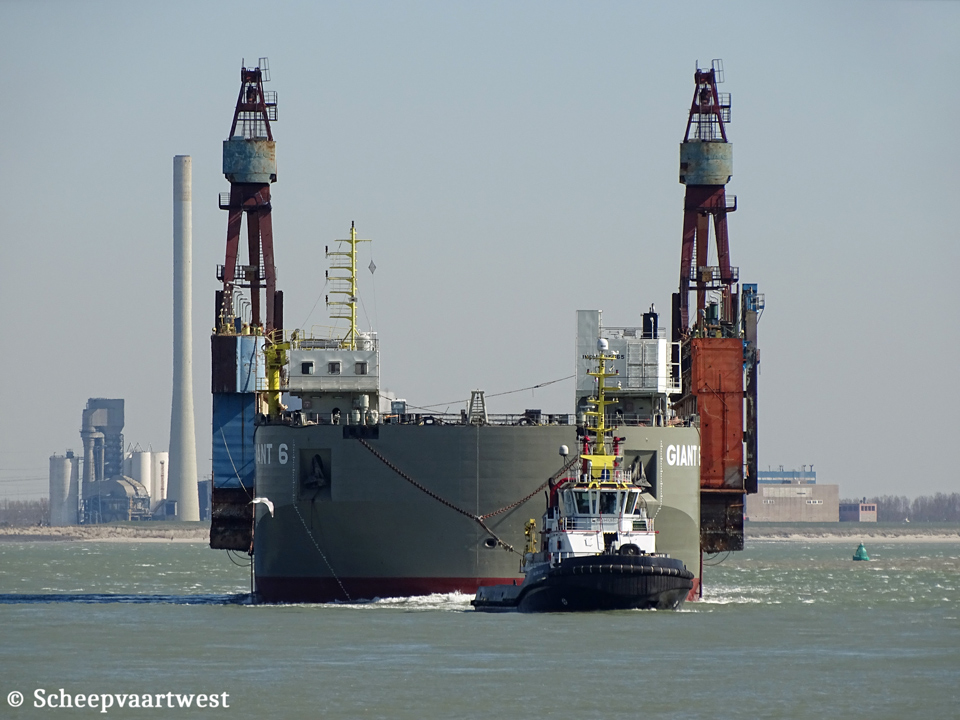

GIANT 6 |
|
Type |
Semi-submersible barge - Submersible to a maximum draught of 17,00 m - Deck cargo pontoon |
|
IMO-number |
9725665 |
|
Call sign |
9V3132 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
28.357 t |
|
DWT |
Summer: 21.000 t |
|
Lightship |
7.250 t |
|
Length |
137,00 m |
|
Breadth |
36,00 m |
|
Draught |
1,87 m empty 6,45 m loaded |
|
Depth |
8,50 m |
|
Built |
2015 |
|
Builder |
Keppel Nantong Shipyard Nantong China |
|
Yard number |
H043 |
|
Hull material |
Steel |
|
Deck equipment |
Anchor / Mooring winch: 2x Located inside housing Anchor: 2x HHP anchor 4.200 kg Chain: 220,00 m, 76 mm chain U3 Line pull: 2x 300 kN @ 10,00 m/min Steel wire rope: 200,00 m - Diameter 40 mm Store crane: 1x Tated 3,0 t @ 8,00 m radius |
|
Deck area |
4.500 m³ |
|
Free deck length |
120,00 m |
|
Deck load |
20,0 t/m² |
|
Submerging particulars |
Submersible draught aft :17,00 m Submersible draught forward: 17,00 m Grounding draught aft: 20,00 m Removable buoyancy tanks |
|
Main towing bridle |
Stud link chain: 2x 25,00 m 76 mm U3 + triangle plate Bridle recovery: A-frame with winch |
|
Ballast system |
Type: Diesel-electric pumps unmanned pump rooms redundant ballast system Pump capacity max: 6.400 m³/h (4x 1.600 m³/h) Main generator: 2x 445 kW Auxiliary generator: 65 kW Ballast water treatment: 2x 500 m³/h |
|
Accommodation |
Spacious control room on top deck with all ballast controls and good view on main deck and surroundings Below a mess room and kitchen with toilet and 4 beds All accommodation is fully air-conditioned |
|
Manager |
Smit Singapore Republic of Singapore |
|
Owner |
Royal Boskalis Westminster N.V. 3350 AA Papendrecht The Netherlands |
|
Latest data adjustment |
26 August 2020 |
