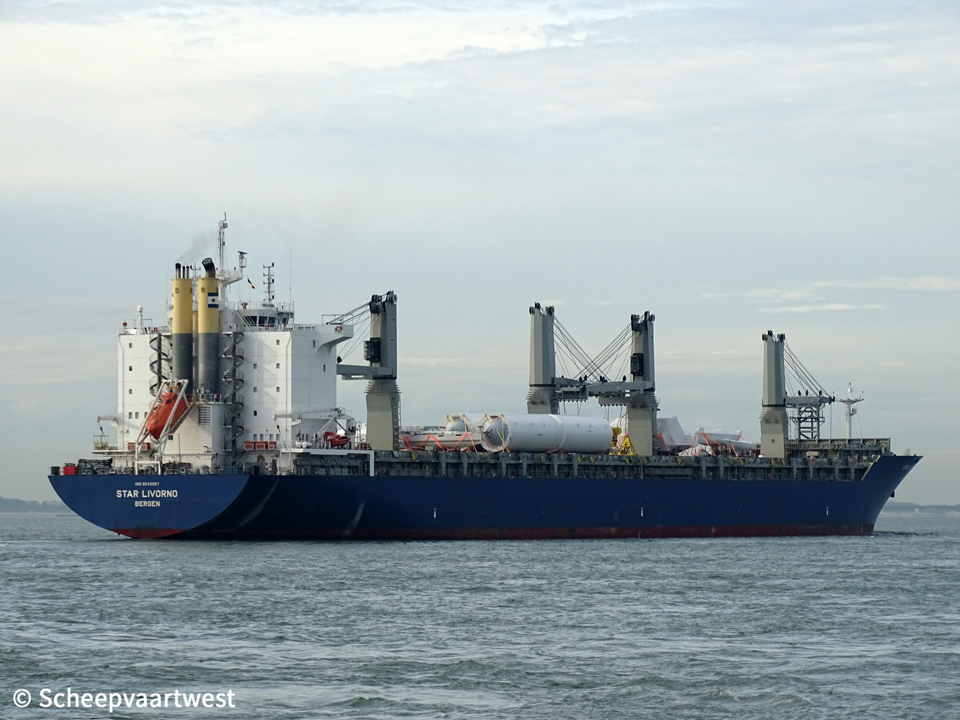

Star Livorno 01

Westerschelde 03 November 2015



Name

STAR LIVORNO

Type

Open hatch general cargo carrier - Containers arranged in holds and on deck

Main products

Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes

IMO-number

9593907

Call sign

LAQM7

Flag

Norway

Port of registry

Bergen

GT

37.447 t

DWT

Summer: 50.700 t

NT

15.619 t

Number of 20ft containers

1.411

Length

204,36 m overall

194,03 m between perpendiculars

Breadth

32,31 m extreme

32,26 m moulded

Draught

Max: 12,64 m

Air draft

Max: 51,11 m

47,00 m mast folded

Depth

19,00 m to main deck

Speed

Max: 15,5 knots

Built

2013

Keel laid

25/01/2013

Launch date

03/05/2013

Date of completion

18/07/2013

Builder

Hyundai Mipo Dockyard Co., Ltd.

South Korea

Yard number

8080

Hull material

Steel

Hull type

Single hull double bottom

Continuous decks

1

Main engine

1x MAN-B&W/Hyundai 5S60ME-C8.1 - 5 cylinder combustion engine:

MCR: 10.780 kW at 95,2 rpm

NSR: 9.090 kW at 90,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired - 7 kg/cm² (0,59MPa)

Steam production: 1.600 kg/h

1x Auxiliary boiler, exhaust gas heated - 7 kg/cm² (0,59MPa)

Steam production: 1.200 kg/h

Manufacturer: KANGRIM Heavy Industries Co., Ltd.

Generators

3x Hyundai Himsen 5H21/32 - 4 stroke 5 cylinder 210 x 320 mm diesel engine each 950 kW at 900 rpm connected with HFC7 506-84K generators each 1.125 kVA / 900 kW

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Norhavn Gasi 8-06E (Engine: SISU) - 225 kVA / 180 kW

Compressed air receivers

2x Sperre XW150 main air compressors each 165 m³/h capacity at 30 bar.(3 Mpa)

1x Atlas Copco GA37VSD-175-60 working air compressor 388 m³/h capacity at 7,0 bar (0,7 Mpa)

1x Sperre XA030 emergency air compressor 35 m³/h capacity at 30 bar.(3 MPa)

Bow thruster

1x HHI -EMD type HSC-21K - 1.545 kW

Number of holds

9x Box-shaped cargo holds

Cargo hold capacity

Bale:

No. 1: 4.522 m³

No. 2: 5.959 m³

No. 3: 14.298 m³

No. 4: 6.932 m³

No. 5: 6.932 m³

No. 6: 14.298 m³

No. 7: 6.557 m³

No. 8: 5.398 m³

No. 9: 1.886 m³

Total: 66.773 m³

Hold ventilation

Hold 1-2: 6 air changes per hour

Hold 3-8: 2 air changes per hour

Number of hatches

9

Fresh water generator

1x Alfa Laval AQUA-100-HW - 30 m³/24h

Max permitted loads

Weather deck hatch covers: 3,6 t/m²

Tween decks: 5,5 t/m²

Tank top, hold 2 to 8: 28,0 t/m²

Tank top, hold 9: 5,5 t/m²

Tank capacities

Ballast: 20.365 m³

Anchor equipment

Length: 660,00 m

Lifting equipment

Diameter: 78 mm

Cargo gear

4x Deck cranes - SWL 75,0 t each

Accommodation

Total of 29 persons

Manager

Grieg Star AS

Grieg Star

Bryggegata 6, 4th floor

NO-0250 Oslo

Norway

Operator

Grieg Star

Owner



Registered owner

Grieg Shipping II AS

Bergen

Norway

Latest data adjustment

19 August 2020
