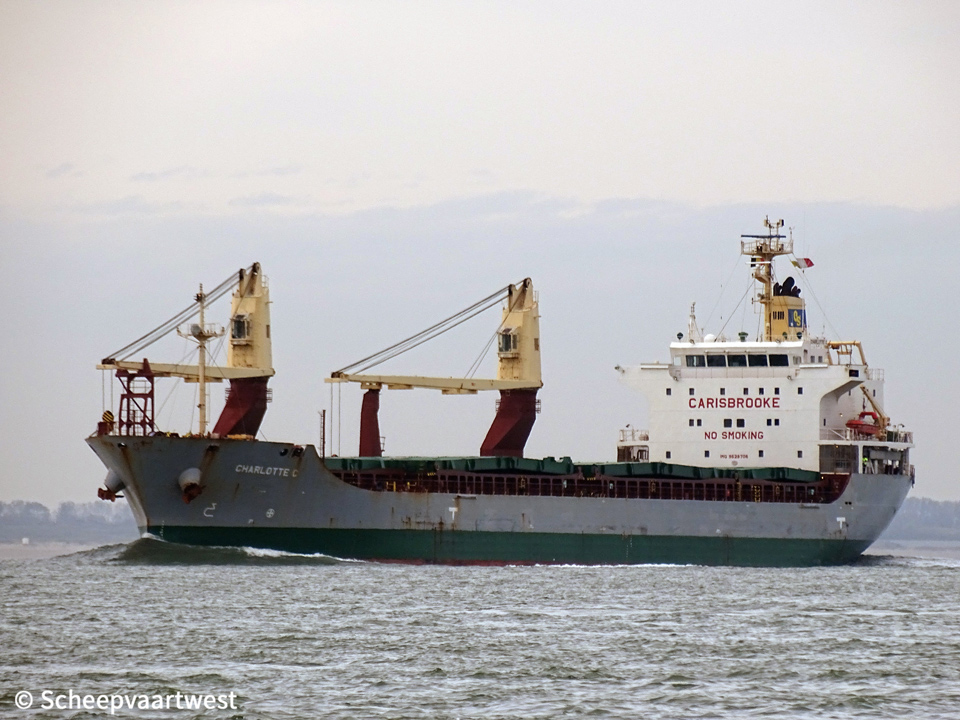

Charlotte C 01

Westerschelde 03 November 2015



Name

CHARLOTTE C

Type

General cargo ship - Heavy cargo

IMO-number

9528706

Call sign

2CGT3

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

9.177 t

DWT

Summer: 13.538 t

Number of 20ft containers

172

Length

136,40 m overall

126,40 m between perpendiculars

Breadth

21,20 m

Draught

Max: 8,35 m

Freeboard

2.973 mm

Depth

11,30 m

Speed

Max: 14,6 knots

Built

2009

Keel laid

21/04/2008

Launch date

15/06/2008

Date of completion

18/09/2009

Builder

Kyokuyo Shipbuilding & Iron Works

Shimonoseki

Japan

Yard number

491

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

1

Main engine

1x Makita/MAN-B&W 7S35MC MK7 - 2 stroke 7 cylinder 350 x 1.400 mm combustion engine 5.180 kW / 7.042 bhp at 173,0 rpm

Build: 19/03/2009

Builder: Makita Corporation, Takamtsu - Japan

Propellers

1x Solid propeller - aft at 173,0 rpm

Boilers

1x CHO 17,30 m²

1x CHR 69,80 m²

Generators

3x Daihatsu 5DC17 main diesel generatorsets 500 kVA - 400 kW - 598 hp

Emergency generator

1x Mitsui BF6L913C diesel generatorset 125 kVA - 100 kW - 186 hp

Bow thruster

1x 526 kW

Number of holds

4

Hold 1: 19,40 x long (17,60 m aft / 5,60 m fore)

Hold 2: 24,80 x 17,60 m (open hatch box)

Hold 3: 24,80 x 17 60 m (open hatch box)

Hold 4: 17,40 x long (17.60 m fore / 8,40 m aft)

Cargo hold capacity

Grain / Bale:

Hold 1 : 3.290 / 3.215 m³

Hold 2 : 5.140 / 5.140 m³

Hold 3 : 5.140 / 5.140 m³

Hold 4 : 3.430 / 3.375 m³

Total : 17.000 / 16.870 m³

Number of hatches

4

Hatch 1: 16,10 x 12,60 m

Hatch 2: 24,85 x 17,60 m

Hatch 3: 24,80 x 17,60 m

Hatch 4: 15,80 x 17,60 m

Tank capacities

Heavy fuel oil : 1.020 m³

Gas oil : 110 m³

Ballast water : 3.990m³

Fresh Water : 120 m³

Cargo gear

2x Electro hydraulic starboard side cranes - SWL 30,0 t each
2x 10 m³ grabs each

Crew size

14

Manager

Carisbrooke Shipping

Owner

Carisbrooke Shipping UK Cowes (Isle Of Wight)

United Kingdom

Renamed

2016 Sider London

Malta, Valletta - Call sign: 9HA4398

Owner: Nova Marine Carriers SA

Latest data adjustment

19 August 2020
