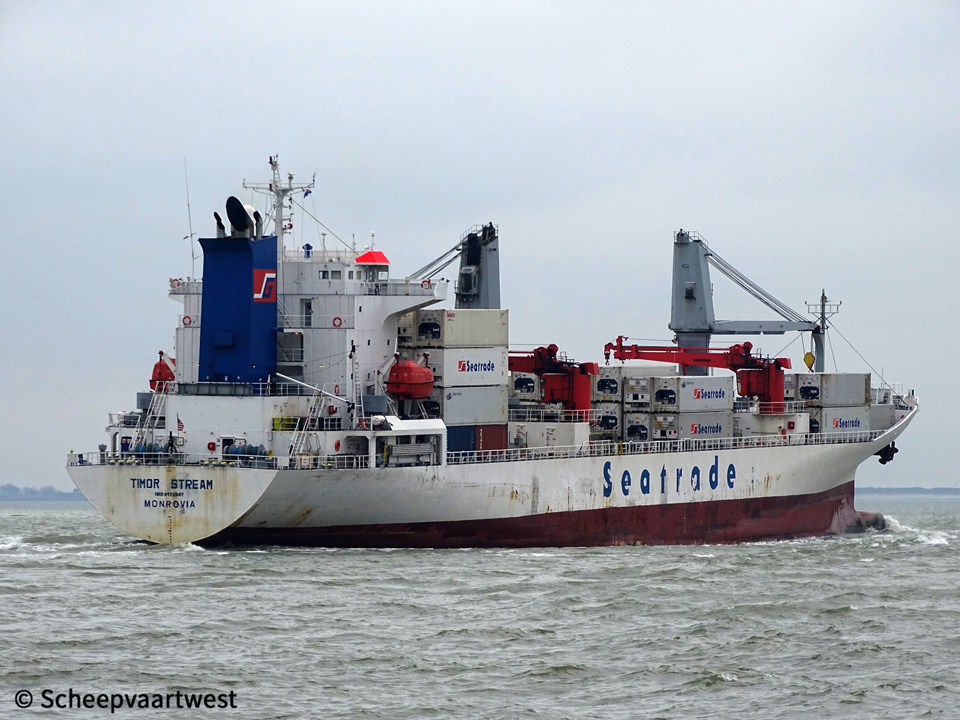

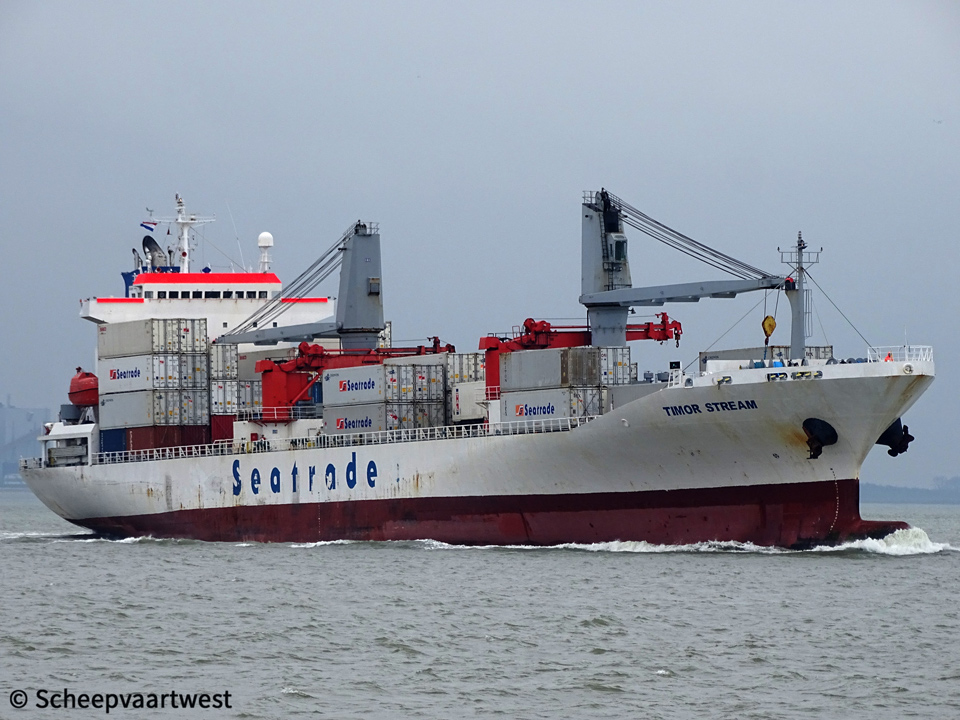

Westerschelde 23 March 2018 |
 |
| Westerschelde 23/03/18 |
|
Name |
TIMOR STREAM |
|
Previous names |
1998 - 2006 Stream Express |
|
Type |
Refrigerated cargo ship - Equipped for carriage of containers |
|
IMO-number |
9172947 |
|
Call sign |
A8IN9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
9.307 t |
|
DWT |
Summer: 11.014 t |
|
NT |
4.983 t |
|
Number of 20ft containers |
284 |
|
Reefer capacity |
126 |
|
Length |
150,00 m overall 138,5 m between perpendiculars |
|
Breadth |
22,00 m |
|
Draught |
Max: 9,28 m |
|
Freeboard |
4.064 mm |
|
Depth |
13,30 m |
|
Speed |
Service: 14,9 knots Max: 20,5 knots |
|
Built |
1998 |
|
Keel laid |
16/04/1998 |
|
Launch date |
29/06/1998 |
|
Date of completion |
11/09/1998 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. Hachinohe Japan |
|
Yard number |
318 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x B&W/Hitachi Zosen 8S50MC-C - 2 stroke 8 cylinder 500 x 2.000 mm combustion engine 12.620 kW / 17.146 hp at 127,0 rpm Builder: Hitachi Shipbuilding & Engineering, Tamana-gun, Kumamoto - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 127,0 rpm |
|
Boilers |
1x CHR 122,00 m² - 10,2 bar 1x CHO 18,00 m² - 5,1 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 110 V Frequency: 60 Hz |
|
Generators |
4x Main diesel generatorsets each 1.000 kVA - 800 kW - 1.200 hp |
|
Emergency generator |
1x Diesel generatorset 40 kVA - 32 kW - 54 hp |
|
Number of holds |
4 |
|
Hold capacity |
535.109 ft³ / 15.152 m³ |
|
Number of hatches |
4 |
|
Number of compartments |
16 |
|
Cargo hatchways |
4 7,00 x 8,00 m each |
|
Deck area |
6.003,8 m² |
|
Cooling sections |
8 different temperatures |
|
temperature range |
Plus 15°C / minus 25°C |
|
Tank capacities |
Fuel: 1.461,6 t Ballast water: 1.509,0 t Fresh water: 256,0 m³ |
|
Lifting equipment |
2x Cranes - SWL 40,6 t 2x Cranes - SWL 8,0 t |
|
Manager |
Triton Schiffahrts GmbH Leer Germany |
|
Operator |
Seatrade Reefer Chartering N.V. C/o Branch office Atlantic House Noorderlaan 147 2030 Antwerp Belgium |
|
Registered owner |
Triton Schiffahrts GmbH Hafenstrasse 6 26789 Leer Germany |
|
Previous owners |
1998 - Stream Express - Halcyon Sg SA 2005 - Stream Express - Timor Stream Sg Co SA 2005 - Stream Express - Stream Express BV |
|
Renamed |
12/2018 Frio Star Republic of Panama; Panama City - Call sign: H9FY Owner: Solmar Shipping SA Manager: FSC Frigoship Chartering GmbH |
|
Latest data adjustment |
16 August 2020 |
