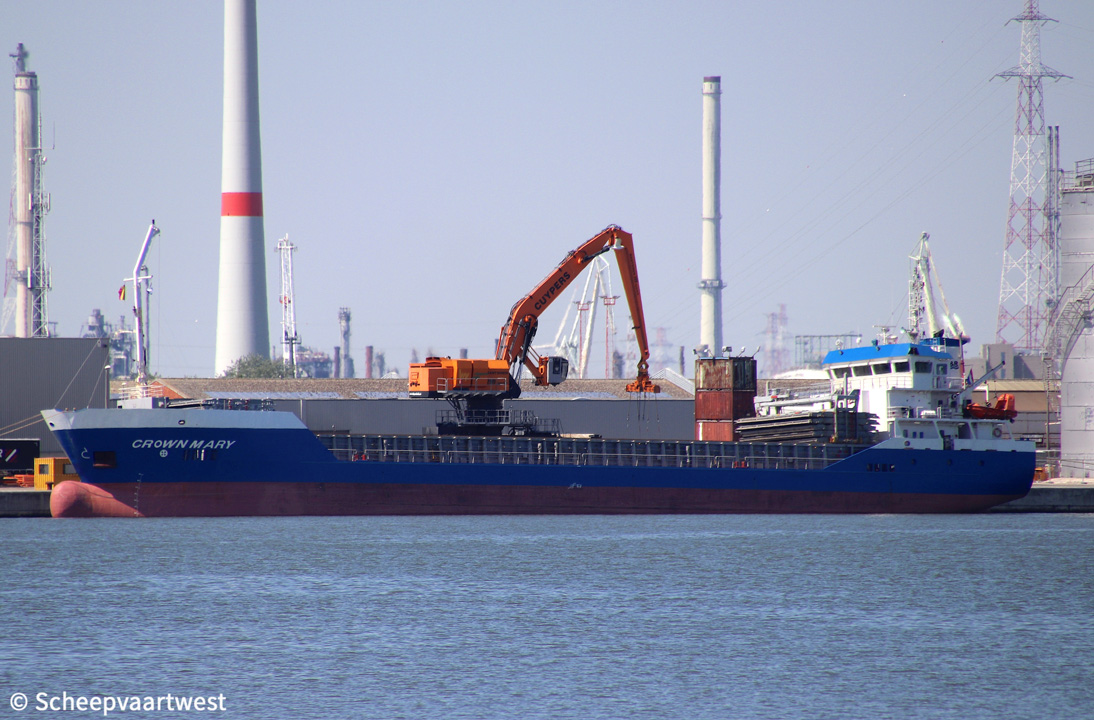

Crown Mary 01

Antwerpen 06 May 2020

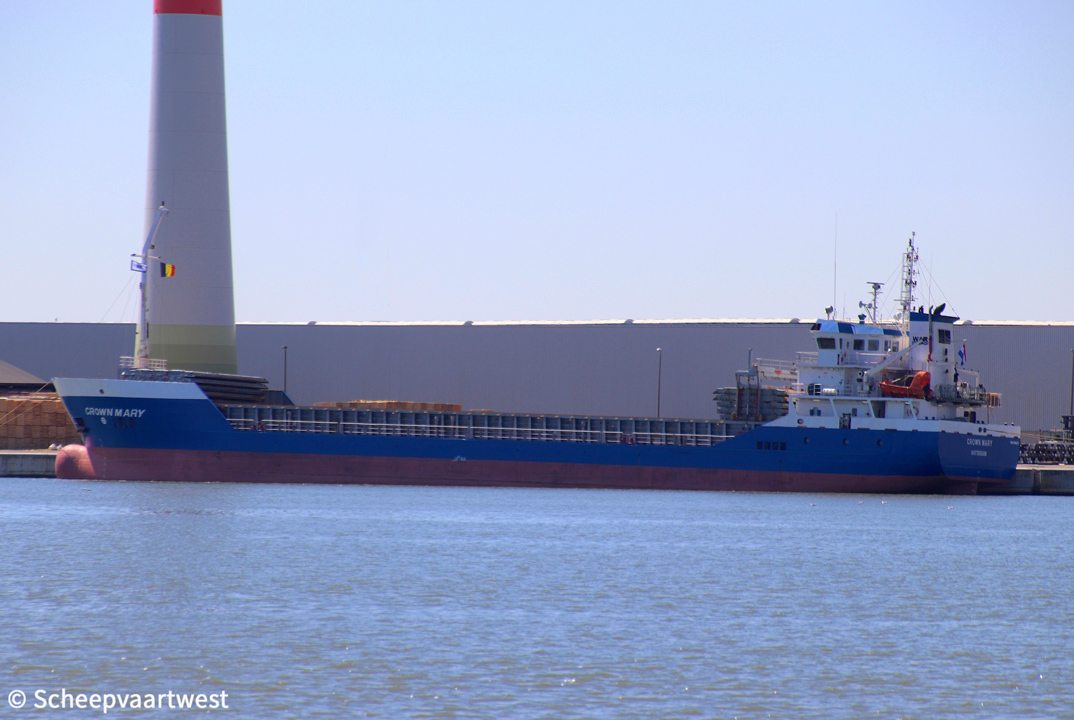

Crown Mary 02
Antwerpen 06/05/20













Name

CROWN MARY

Type

General cargo ship - Heavycargo - Equipped for carriage of containers

Box type / flush tweendecker

IMO-number

9466219

Call sign

PBUL

Flag

The Netherlands

Port of registry

Rotterdam

GT

2.622 t

DWT

Summer: 3.500 t

NT

1.421 t

Number of 20ft containers

163

Number of 40ft containers

76

Length

88,30 m overall

83,44 m between perpendiculars

Breadth

12,90 m

Draught

Max: 5,40 m

Ballast: 4,00 m

Air draft

Loaded: 20,00 m

Ballast: 21,50 m

Freeboard

1.614 mm

Depth

7,00 m

Speed

12,5 knots

Built

2010

Launch date

23/03/2009

Date of completion

03/02/2010

Builder

Anqing Zhouyang Shipbuilding Co.,Ltd.

China

Yard number

ZY3500-06-01

Hull material

Steel

Watertight compartments

4

Movable bulkheads

4x Half high movable bulkheads or 2 full bulkheads

Continuous decks

1

Main engine

1x ABC 12DZC - 4 stroke single acting 12 cylinder 256 x 310 mm combustion engine 2.208 kW / 3.000 hp at 800 rpm

Builder: Anglo Belgian Corporation NV, Gent - Belgium

Propellers

1x Screw propeller solid- aft at 190 rpm

Boilers

1x CHR Apparate- und Kessel 46,00 m² / 10,0 bar

1x CHO Apparate- und Kessel 12,20 m² / 10,0 bar

Generators

1x Diesel generatorset 287 kVA - 230 kW - 332 hp

1x Diesel generatorset 287 kVA - 230 kW - 352 hp

Number of holds

1

59,50 x 10,60 x 8,33 m

Hold capacity

180.000 ft³ with out bulkheads

177.300 ft³ with bulkheads

Timber capacity

5.000 m³

Number of hatches

1

59,50 x 10,60 m

Max permitted loads

Tanktop: 12,0 t/m²

Tweendeck: 2,5 t/m²

Hatches: 1,60 t/m²

Tank capacities

HFO: 240 m³

MGO: 48 m³

Ballast: 1.590 m³

Manager

W & R Shipping B.V.

Daltonstraat 33

3335 LR Zwijndrecht

The Netherlands

Registered owner

Crown Mary Shipping BV

Daltonstraat 33

3335 LR Zwijndrecht

The Netherlands

Latest data adjustment

14 July 2020
