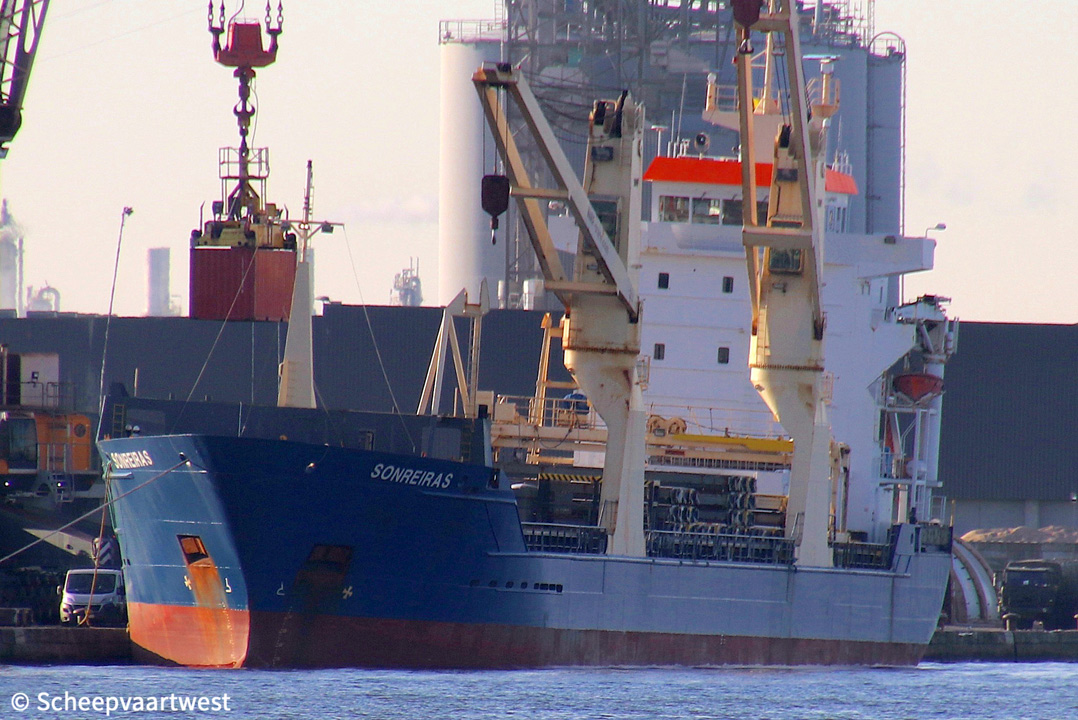

Sonreiras 01

Antwerpen 06 January 2020



Name

SONREIRAS

Previous names

2007 Built as Victoriadiep

12/2007 - 01/2011 OSC Victoriadiep

01/2011 - 06/2019 Victoriadiep

Type

Multi-purpose cargo ship - Tweendecker - Geared - strengthened for heavy cargoes - container cargoes in all holds and on all hatch covers

IMO-number

9351153

Call sign

EAZF

Flag

Spain

Port of registry

Santa Cruz de Tenerife

Previous flags

2007 - 2019 The Netherlands, Groningen - Call sign: PHMM

GT

5.057 t

DWT

Summer: 7.450 t

NT

2.681 t

Number of 20ft containers

On hatch: 201

In hold: 174

Total: 375

Number of 40ft containers

On hatch: 59 + 19 TEU

In hold: 84

Total: 143 - 19 TEU

Container capacity 14t

235

Length

119,98 m overall

113,65 m between perpendiculars

Breadth

15,20 m moulded

Draught

Summer: 7,45 m

Depth

8,45 m to main deck

Speed

Max: 15,0 knots

Service: 13,0 knots

Built

2007

Date of completion

17/12/2007

Builder casco

Zaliv Shipyards

Kerch

Ukraine

Builder completion

Bodewes Scheepswerven B.V.

Hoogezand

The Netherlands

Yard number

658

Hull material

Steel

Continuous decks

1

Main engine

1x MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.840 kW

Manufacturer: M.A.K. Caterpillar, Kiel - Germany

Propellers

1x Pitch propeller

Generators

3x Scania DI1262-M09 P main diesel generatorsets each 265 kW

Emergency generator

1x Diesel generatorset 76 kW

Bow thruster

330 kW

Number of holds

2

Hold capacity

Hold 1: .4.306 m³ / 152.060 ft³

Hold 2: 5.288 m³ / 186.737 ft³

Total: 9.594 m³ / 338.797 ft³

Hold ventilation

10 Air changes per hour

Number of hatches

2

Hatch 1: 27,22 x 12,65 m

Hatch 2: 41,46 x 12,65 m

Hatch type

Pontoon type

Max. permitted loads

Tanktop: 25,0 t/m²

Tweendeck: 3,5 t/m²

Hatchcover: 1,75 t/m²

Tank capacities 98%

HFO: 561 m³

MGO: 80 m³

Fresh water: 50 m³

Water ballast: 3.313 m³

Cargo gear

2x Cranes - SWL 60,0 t each
Max. outreach: 25,00 m

Crew complement

12

Manager

Naviera de Galicia S.A. (NAVIGASA)

La Coruña

Spain

Previous managers

Feederlines B.V., 9735 AD Groningen - The Netherlands

Owner

Naviera de Galicia S.A. (NAVIGASA)

La Coruña

Spain

Previous owners

08/2007 - 12/2007 Victoriadiep - Beheermaatschappij Victoriadiep B.V., Groningen - The Netherlands

12/2007 - 01/2011 OSC Victoriadiep - Beheermaatschappij Victoriadiep B.V., Groningen - The Netherlands

01/2011 - 07/2016 Victoriadiep - Beheermaatschappij Victoriadiep B.V., Groningen - The Netherlands

07/2016 - 2019 Victoriadiep - Sormano Victoria, B.V.Groningen - The Netherlands

Latest data adjustment

03 July 2020
