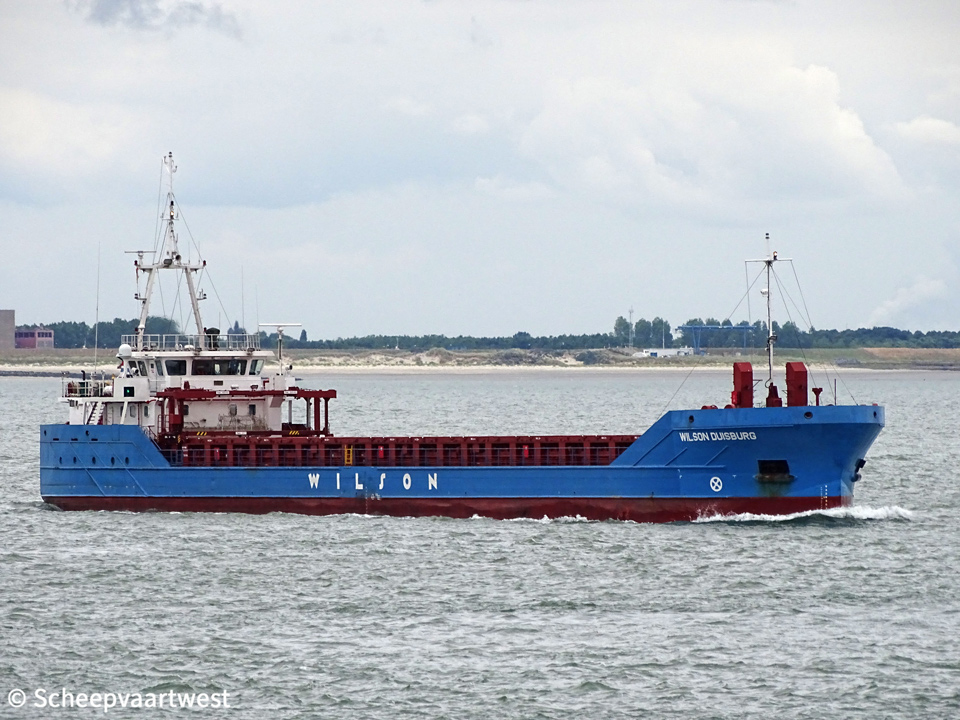

Wilson Duisburg 01

Westerschelde 15 July 2019

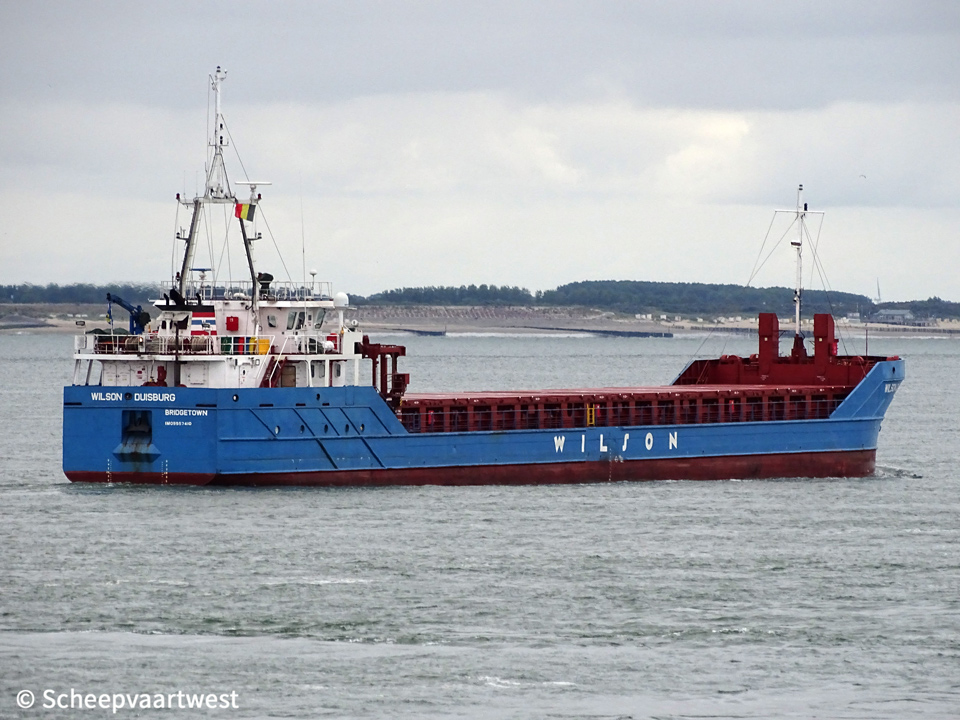

Wilson Duisburg 02
Westerschelde 15/07/19













Name

WILSON DUISBURG

Type

General dry cargo ship - Container (single deck)

IMO-number

9557410

Call sign

8PMH

Flag

Barbados

Port of registry

Bridgetown

Previous flags

Antigua & Barbuda, St. John’s

GT

1.904 t

DWT

Summer: 2.535 t

Winter: 2.448 t

NT

878 t

Number of 20ft containers

In hold: 54

Length

87,91 m overall

84,98 m between perpendiculars

Breadth

11,45 m extreme

Draught

Summer: 4,10 m

Winter: 4,02 m

Keel to top antenna

Fwd / aft: 14,90 m / 23,30 m

Fwd / aft: 9,90 m / 17,80 m lowered mast

Air draft

Max: 20,30 m

Freeboard

1.708 mm

Depth

5,80 m moulded

Speed

Service: 9,0 knots

Max: 13,0 knots

Built

2018

Keel laid

30/06/2010

Date of completion

06/11/2018

Builder

WuXue Janda Shipbuilding Co., Ltd.

WuXue

China

Yard number

JD2013

Hull material

Steel

Movable bulkheads

2x Moveable bulkheads, 6 different positions + 2 storage positions aft

Main engine

1x ABC 6DZC - 6 cylinder combustion engine 1.325 kW / 1.801 bhp

Builder: Anglo Belgian Corporation NV, Gent - Belgium

Propellers

1x Mono-bock propeller

Generators

2x MAN D2866 LXE30 main diesel generatorset

Emergency generator

1x John Deere 6068HF279 diesel generatorset

Bow thruster

1x 150 kW

Number of holds

1

61,60 x 9,00 x 6,16 m

Cargo hold capacity

Grain & bale:

3.289 m³ / 119.681 ft³

Number of hatches

1

46,50 x 9,00 m

Hatch type

Pontoon, Gantry crane

Max permitted loads

On deck/hatch-cover: 1,5 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Water ballast: 1.613,88 m³

MGO: 176 m³

Anchor equipment

Length: 440,00 m

Diameter: 30 mm

Manager

Wilson Ship Management AS

Bergen

Norway

Operator

Wilson Eurocarriers AS

Bergen

Norway

Registered owner

Wilson Shipowning AS

Bradbenken 1

N-5835 Bergen

Norway

Latest data adjustment

30 June 2020
