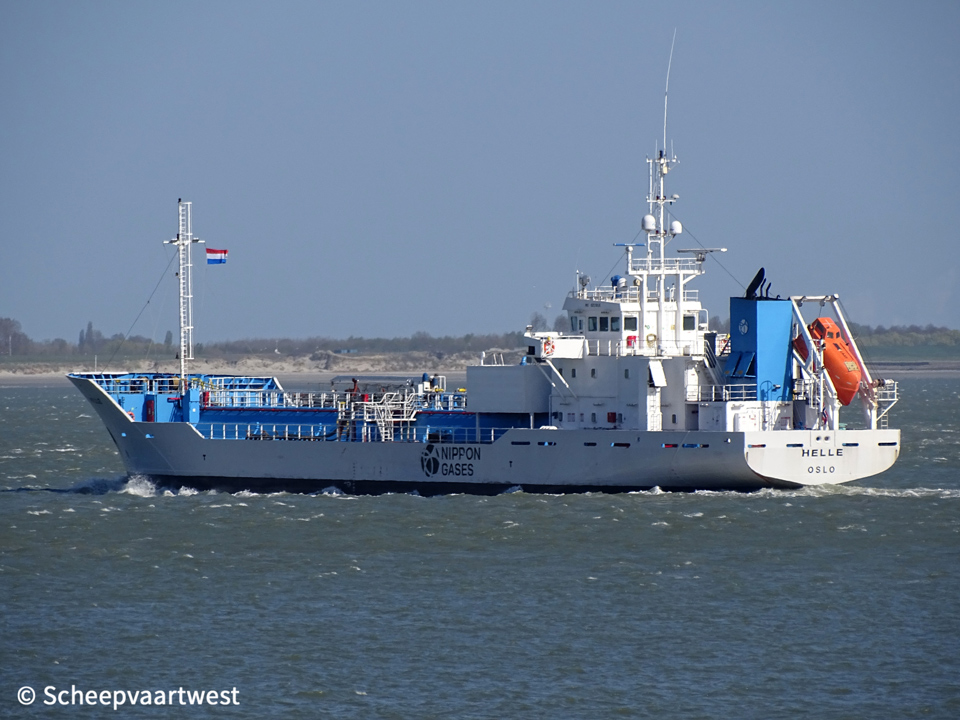

Westerschelde 13 April 2020 |
 |

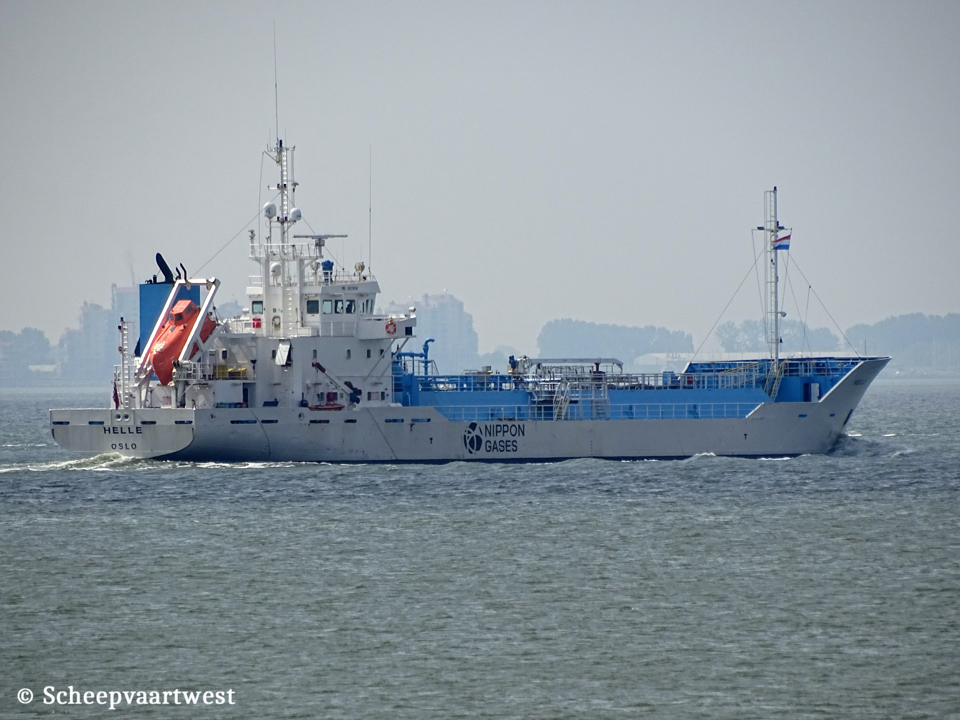

| Westerschelde 04/05/20 |
|
Name |
HELLE |
|
Previous names |
12/1999 - 11/2019 Coral Carbonic |
|
Type |
Liquefied CO2 gas tanker |
|
IMO-number |
9201906 |
|
Call sign |
LAJE8 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
Previous flags |
12/1999 - 11/2019 The Netherlands, Rotterdam - Call sign: PCFW |
|
GT |
1.825 t |
|
DWT |
Summer: 1.786 t |
|
NT |
547 t |
|
Length |
79,55 m overall 74,30 m between perpendiculars |
|
Breadth |
13,78 m extreme |
|
Draught |
Max: 4,00 m |
|
Depth |
6,55 m moulded |
|
Speed |
Service: 12,5 knots Max: 14,0 knots |
|
Built |
1999 |
|
Keel laid |
23/041999 |
|
Launch date |
18/08/1999 |
|
Date of completion |
03/12/1999 |
|
Builder |
Frisian Shipyard Welgelegen BV Harlingen The Netherlands |
|
Yard number |
512 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
2x Caterpillar 3306 main diesel generatorsets each 190 kW |
|
Emergency generator |
1x Sisu Diesel 420 DSG diesel generatorset 73 kW |
|
Bow thruster |
200 kW |
|
Cargo tank capacity |
CO2: 1.240 m³ |
|
Pumps |
1x Electric motor 129 kW vertical deepwell cargo pump 250 m³/h |
|
Min temp |
-40°C |
|
Tank capacities |
Ballast: 838,5 m³ |
|
Anchor equipment |
Length: 412,50 m Diameter: 30 mm |
|
Manager |
Larvik Shipping AS Elveveien 34 3262 Larvik Norway |
|
Previous managers |
12/1999 - 11/2019 Anthony Veder & Co, Rotterdam - The Netherlands |
|
Registered owner |
Nippon Gases Europe Ship AS Fredrik Selmers Vei 6 0663 Oslo Norway |
|
Group |
Taiyo Nippon Sanso Corporation |
|
Previous names & owners |
12/1999 - 11/2019 Coral Carbonic - Scheepvaartmaatschappij Coral Carbonic B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
20 May 2022 |
