Westerschelde 31 May 2016 |
|
Name |

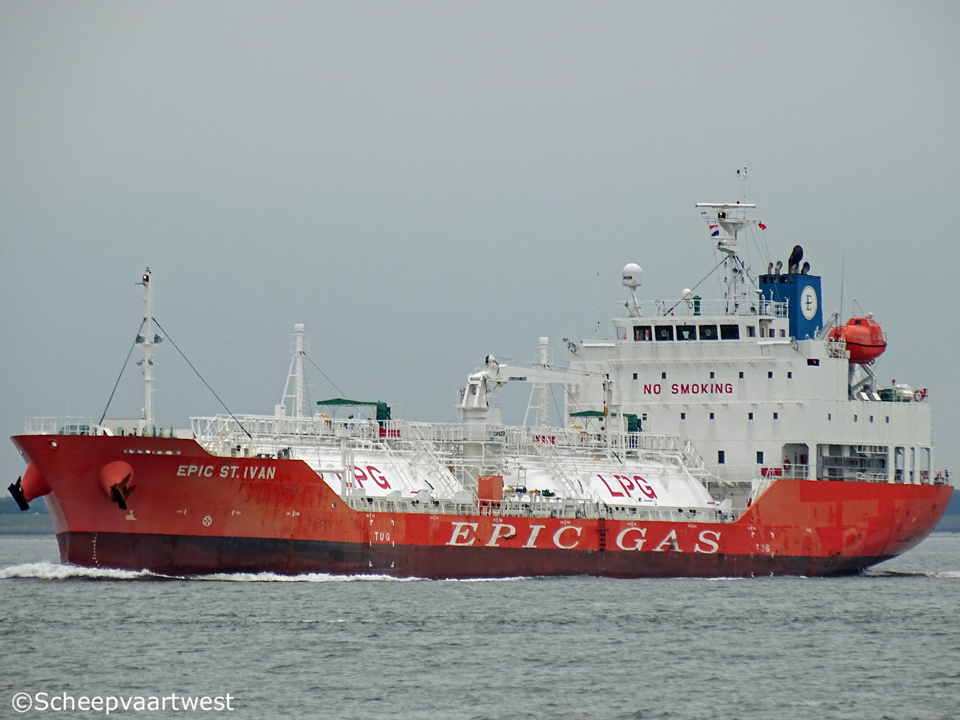

EPIC ST IVAN |
|
Type |
Liquefied gas tanker pressurized - LPG |
|
IMO-number |
9707194 |
|
Call sign |
9HA4347 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2015 - 2016 Republic of Singapore, Singapore City - Call sign: 9V2512 |
|
GT |
4.749 t registered |
|
DWT |
5.169 t |
|
NT |
1.425 t registered |
|
Length |
99,98 m overall |
|
Breadth |
18,00 m |
|
Draught |
Summer: 6,21 m |
|
Moulded L x B x D |
95,50 x 17,80 x 8,00 m |
|
Registered L x B x D |
95,57 x 17,80 x 8,00 m |
|
Freeboard |
1.825 mm |
|
Depth |
8,00 m moulded |
|
Speed |
Max: 14,9 knots |
|
Built |
2015 |
|
Keel laid |
19/09/2014 |
|
Launch date |
15/12/2014 |
|
Date of completion |
27/03/2015 |
|
Builder |
Kitanihon SHipbuilding Co., Ltd. |
|
Yard number |
583 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 5L35MC - 2 stroke single acting 5 cylinder 350 x 1.050 mm combustion engine 2.850 kW / 3.822 bhp at 185,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 300 mm |
|
Propellers |
1 |
|
Boilers |
Auxiliary vertical boiler - 8,0 bar Evaporation: 1,32 t/th Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Generators - 1.065 kVA |
|
Cargo tank capacity |
Liquid: 5.018,85 m³ |
|
Min temp |
-10°C |
|
Max pressure |
1,765 Mpa / 17,65 bar |
|
Tank capacities |
Fuel oil: 607,38 m³ Fresh water: 178,91 m³ |
|
Manager |
Epic Ship Management Pte. Ltd. Headquarters Singapore |
|
Registered owner |
Epic St. Ivan Pte. Ltd. |
|
Latest data adjustment |
10 March 2018 |
