Zeebrugge 22 May 2017 |
 |
| Zeebrugge 22/05/17 |
|
Name |

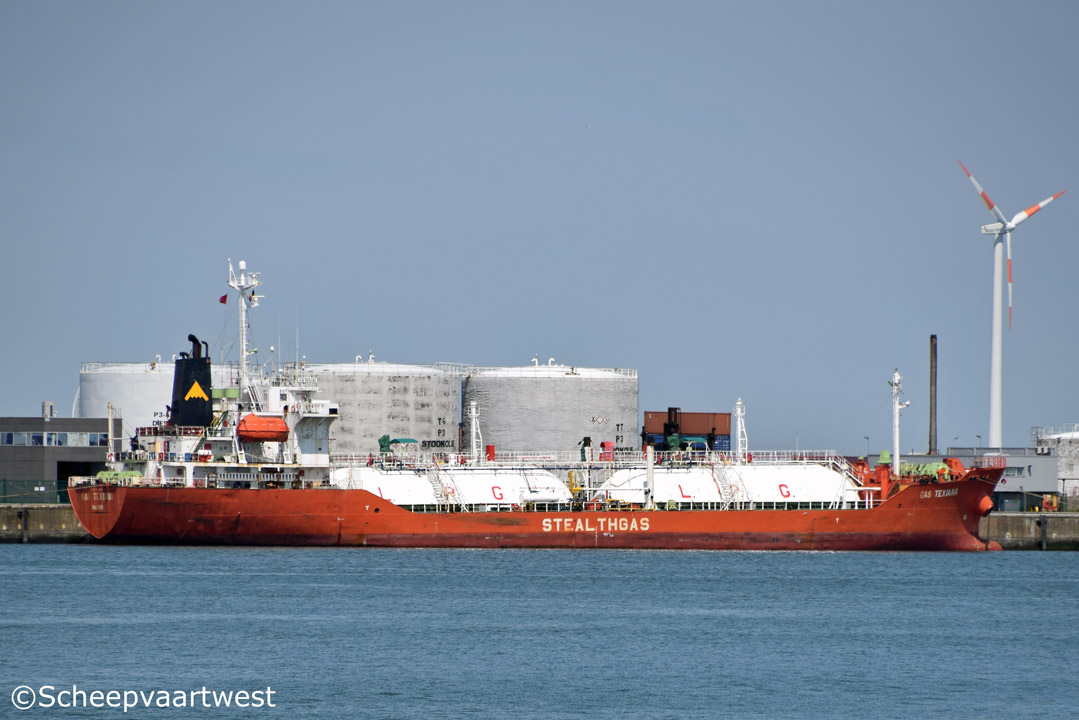

GAS TEXIANA |
|
Previous names |
1995 - 10.2000 Lady Erika 10.200 - 02.2012 Catterick |
|
Type |
Liquefied gas tanker / LPG moored at quay 102 |
|
IMO-number |
9134971 |
|
Call sign |
V7JG6 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
4.695 t registered |
|
DWT |
5.173,91 t |
|
NT |
1.409 t registered Suez: 4.520,18 t Panama: 4.003,56 t |
|
Length |
104,99 m overall 99,90 m between perpendiculars |
|
Breadth |
19,64 m |
|
Draught |
Summer: 5,51 m |
|
Depth |
7,70 m |
|
Speed |
14,6 knots |
|
Built |
1995 |
|
Date of completion |
22.11.1995 |
|
Builder |
Higaki Shipbuilding Co., Ltd. |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Kobe Diesel Mitsubishi - 2 stroke single acting 6 cylinder 370 x 880 mm diesel engine 3.780 kW at 202 rpm |
|
Propellers |
1 |
|
Boilers |
1x Natural circulation vertical water tube boiler Max pressure: 7,0 kg/cm² Evaporation: 717 kg/h (at feed water temperature 60°C) 1x Exhaust economiser Type: Forced circulation type multitudinous tube Evaporation: 400 kg/h (When M/E is running at 90% M.C.R. with feed water temperature 60°C and steam pressure 7 kg/cm² |
|
Generators |
2x Yanmar Diesel Engine 4 stroke single acting direct engine water cooled turbo charger coupled with Nishishiba Electric generatorsets each 350 kVA - 3 phase, 450V, 6 poles, 449 amp |
|
Emergency generator |
1x NFD 150-K 4 stroke diesel engine 11 kW coupled with generator Type: STB – WE10 Output 8 KW at 1.800 rpm |
|
Compressed air receivers |
2x Model: MH 108, Vertical 2 – stage compressed water cooled 25 kgf/cm² |
|
Number of cargo tanks |
100% / 98% Tank 1: 2.500,466 m³ / 2.450,457 m³ Tank 2: 2.500,948 m³ / 2?450,927 m³ Total: 5.001,414 m³ / 4.901,386 m³ |
|
Pumps |
2x Electrical motor each 120 kW driven deep well cargo pump, vertical centrifugal, multi-stage each 300 m³/h Builder: Niigata Worthington |
|
Bunker capacity 100% |
HFO: 531,94 t MGO: 98,6 t Fresh water: 280,62 t |
|
Lifting equipment |
2x Cranes - SWL 0,9 t each |
|
Crew |
16 |
|
Manager |
Stealthgas 14561 Kifisia |
|
Operator |
Brave MAritime Corporation Inc. |
|
Registered owner |
East Propane Inc. |
|
Latest data adjustment |
03 June 2017 |
