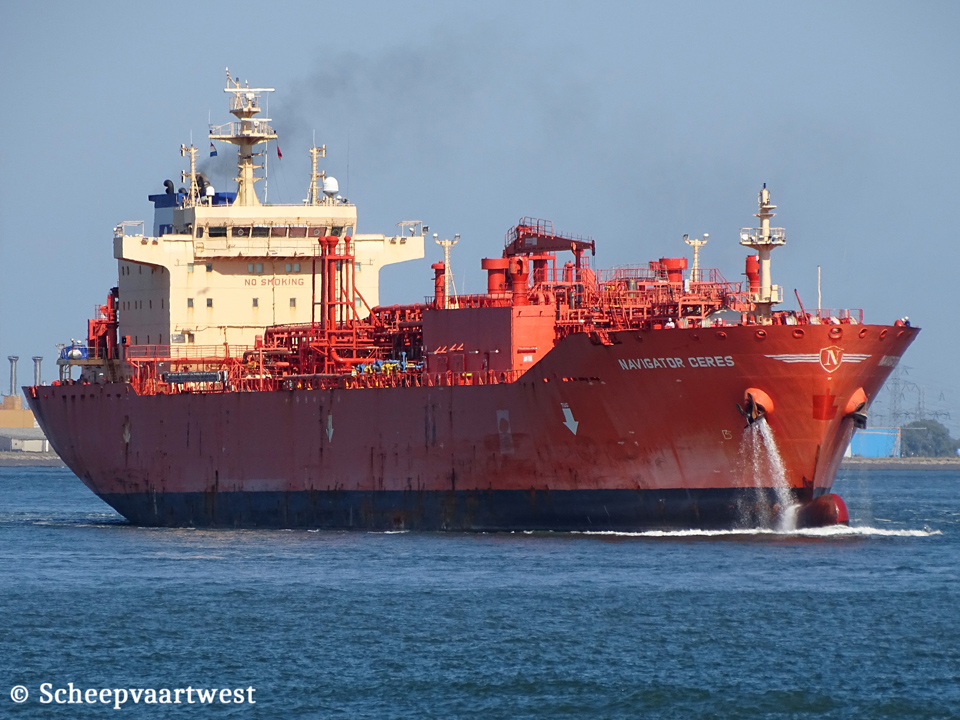

Westerschelde 10 June 2020 |
 |
 |
 |
 |
 |
||||

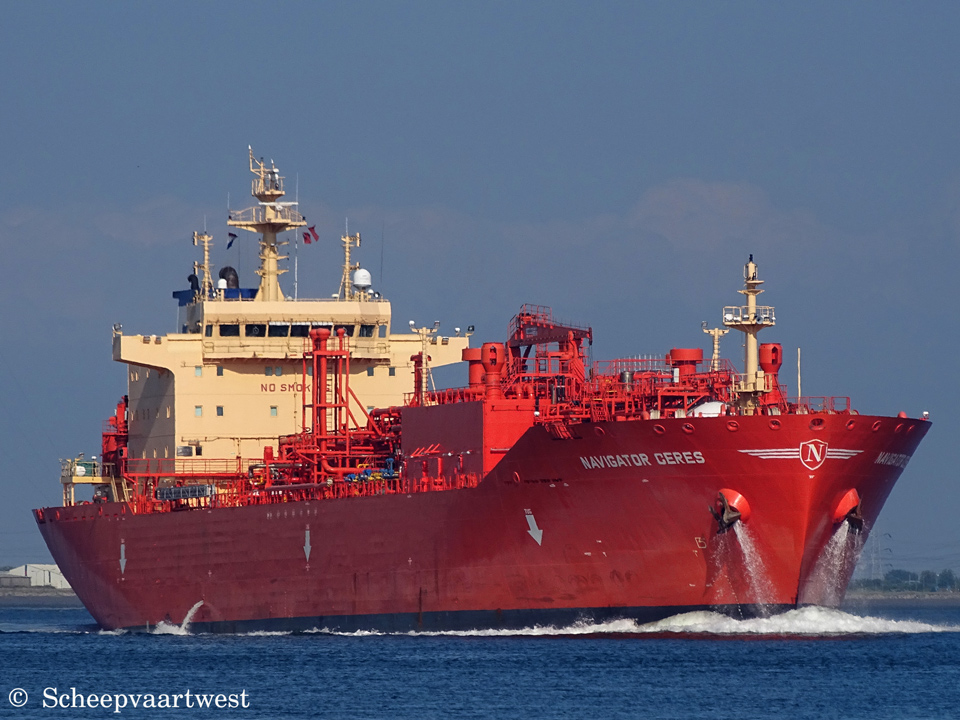

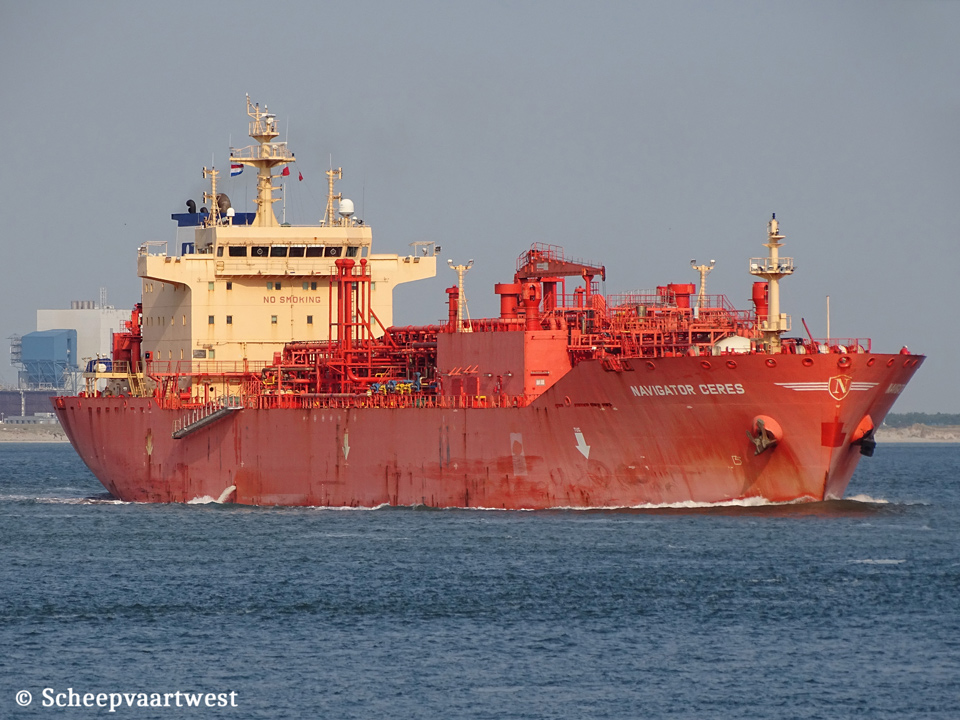

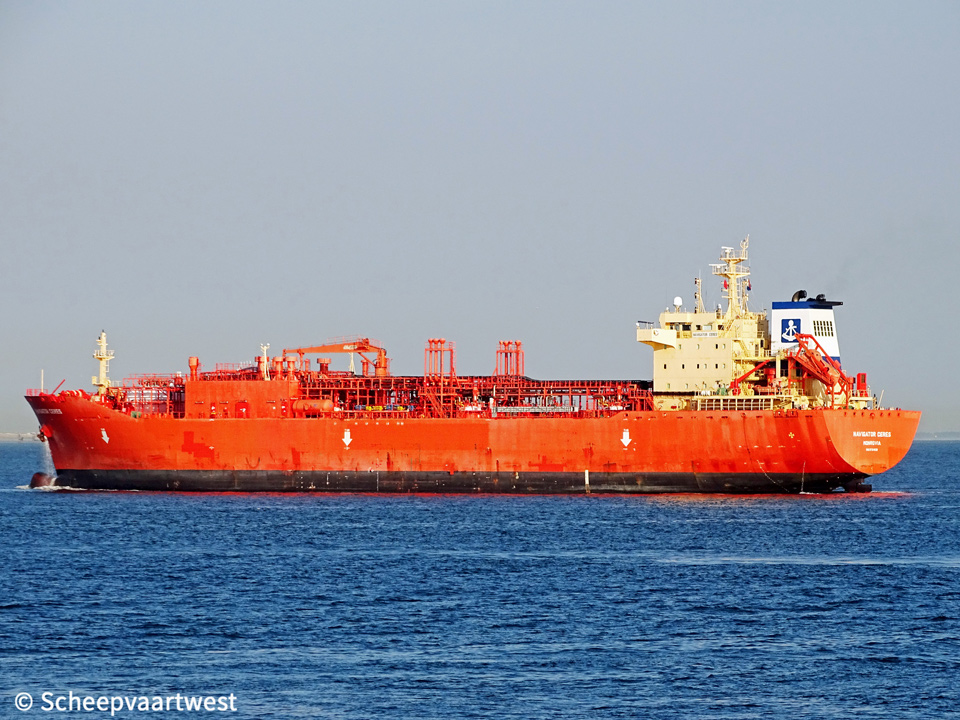

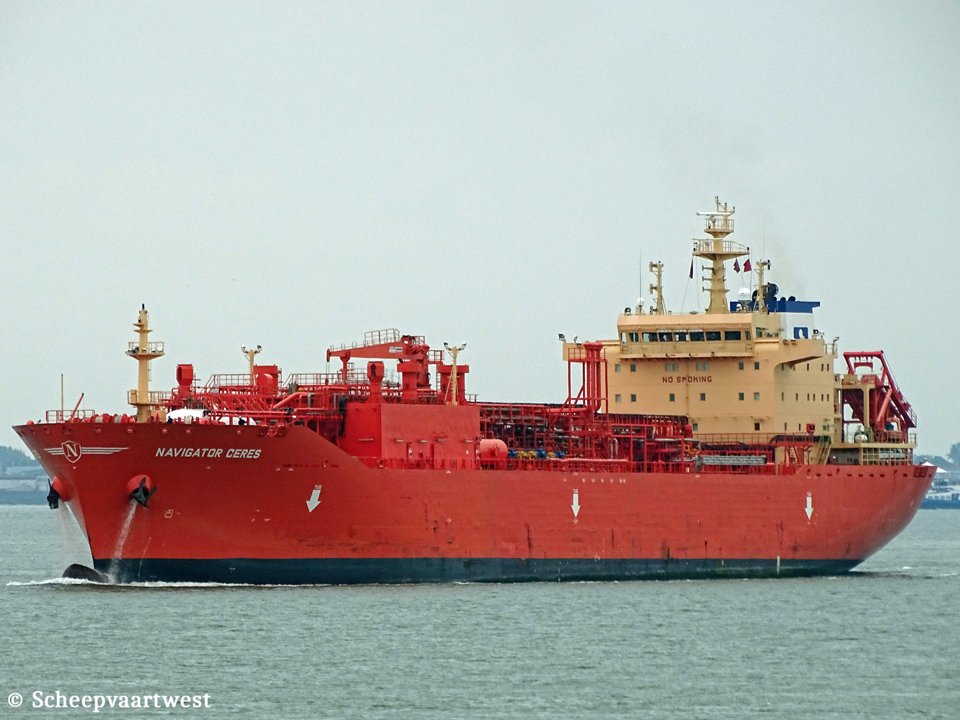

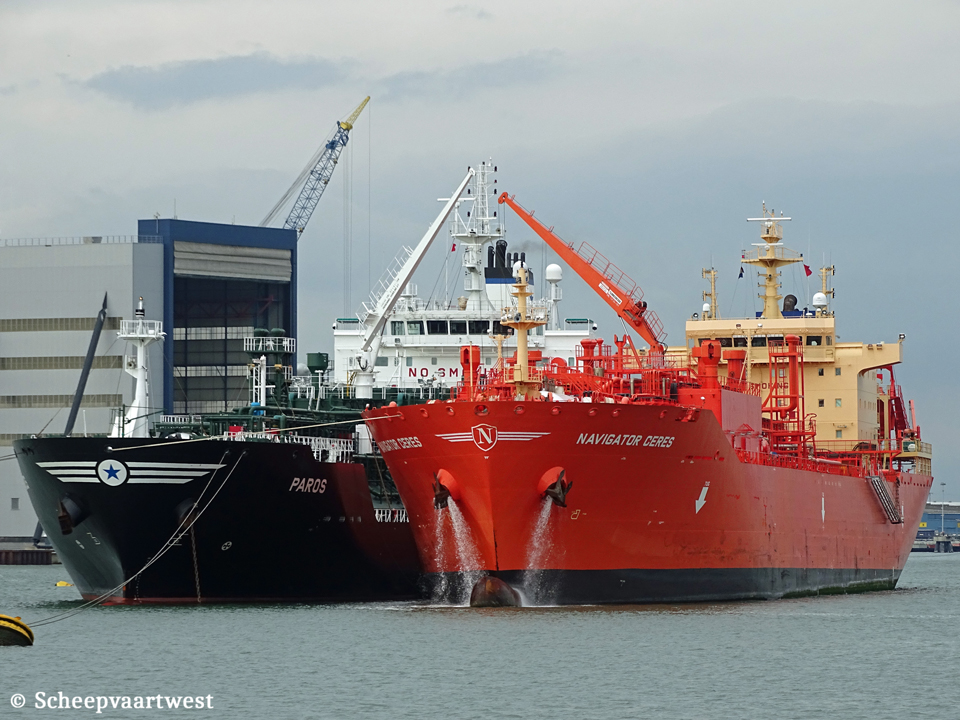

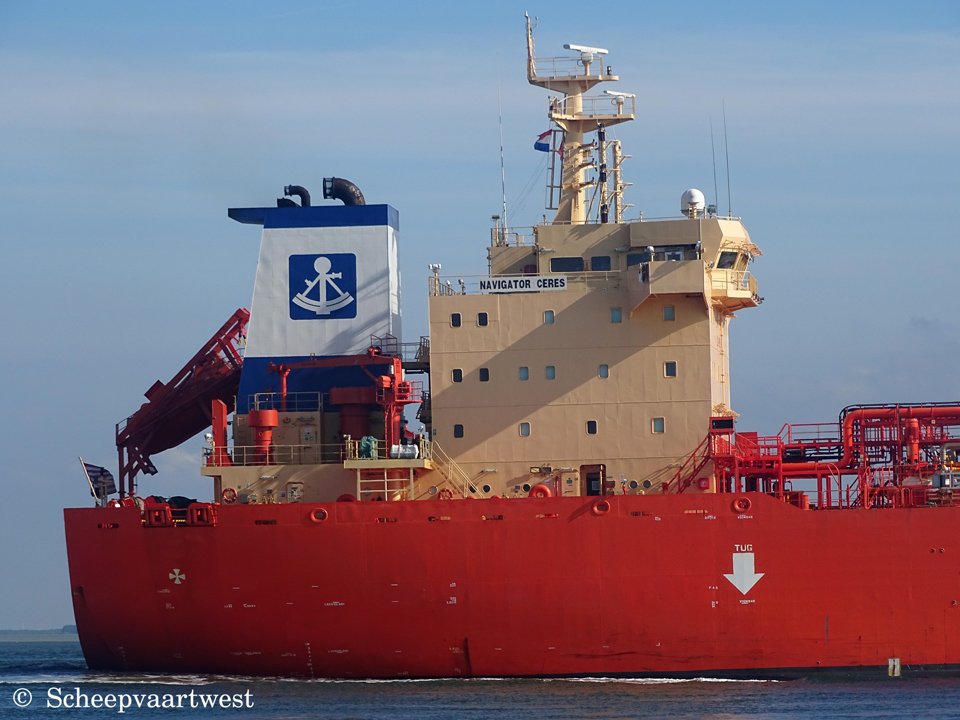

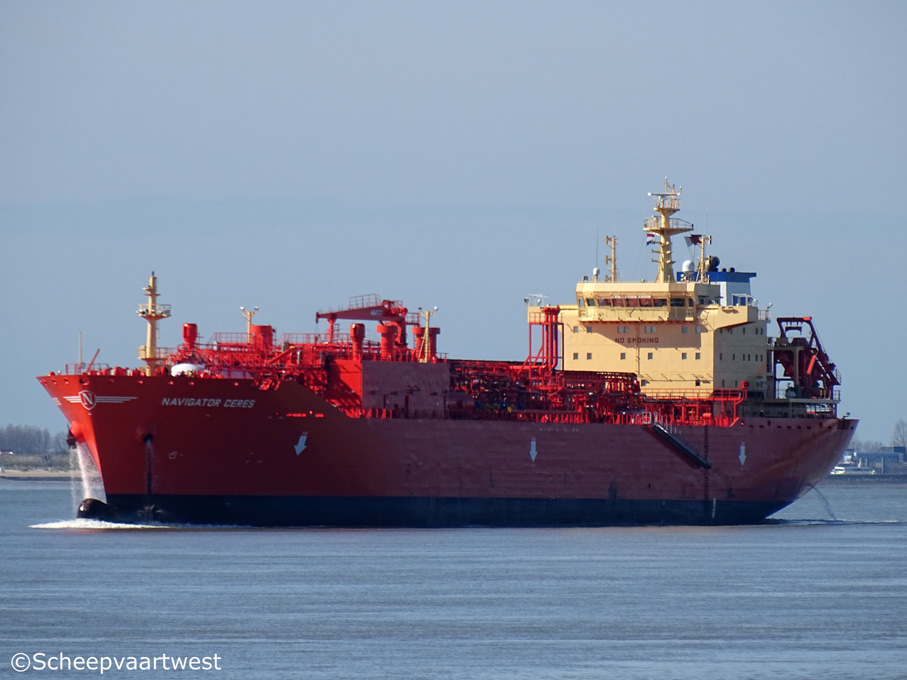

| Westerschelde 10/04/16 | Westerschelde 31/05/17 | Westerschelde 31/05/17 | Westerschelde 23/07/18 | Westerschelde 25/05/20 |
|
Name |
NAVIGATOR CERES |
|
Type |
Liquefied gas tanker - LPG |
|
Main products |
Ammonia - Butadiene - Butane - Propane - Propylene (pgm) - V.C.M |
|
IMO-number |
9704518 |
|
Call sign |
D5HE4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.208 t Suez: 18.771,2 t |
|
DWT |
Summer: 16.669t Winter: 16.009 t |
|
NT |
5.163 t Suez: 16.251,5 t Panama: 14.298 t |
|
Lightship |
9.431 t |
|
Displacement |
Summer: 26.091 t Winter: 25.441 t |
|
Length |
159,99 m overall 152,80 m between perpendiculars |
|
Breadth |
25,82 m extreme |
|
Draught |
Summer 9,40 m Winter: 8,20 m |
|
Keel - Top antenna |
42,40 m |
|
Freeboard |
Summer: 7.310 mm Winter: 7.510 mm |
|
Depth |
16,70 m moulded |
|
Speed |
Service: 16,0 knots |
|
Built |
2015 |
|
Keel laid |
14/11/2014 |
|
Launch date |
15/05/2015 |
|
Date of completion |
21/10/2015 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. China |
|
Yard number |
H2555 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x Hudong/MAN-B&W 6S50ME-C8.2 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 7.170 kW / 9.748 hp at 114,0 rpm |
|
Propellers |
1x Fixed pitch propeller - right handed 4 blades - diameter: 5.750 mm Manufacturer: Dalian Marine Propeller Co., Ltd., Dalian - China |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x Hudong/MAN 5L21/31 diesel generatorsets each 950 kW - 440 Volt 60 Hz |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M) diesel generatorset |
|
Number of cargo tanks |
4x Bi-lobe - Independent |
|
Cargo tank capacity |
22.000 m³ |
|
Number of deck tanks |
1 |
|
Deck tank capacity |
200,4 m³ |
|
Pumps |
8x Svanehoy deepwell type cargo pumps electric motor driven each 250 m³/h 2x Ballast pumps each 300 m³/h |
|
Min. temp |
-50°C |
|
Pressure |
5,30 bar |
|
Manifolds |
Distance from centre to bow: 73,20 m Distance from centre to stern: 86,80 m |
|
Tank capacities |
Ballast: 7.463,3 m³ Fuel oil: 1.278 m³ (98%) - 1.304 m³ (100%) Marine gas oil: 437,9 m³ (98%) - 451,4 m³ (100%) Fresh water: 220 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Lifting equipment |
1x McGregor hose handling crane - SWL 7,5 t @ 19,00 m 1× Stores handling crane starboard - SWL 2,0 t @ 8,00 m |
|
Commerical manager |
Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
ISM manager |
Northern Marine Management Ltd. Alba House, 2, Central Avenue, Clydebank Business Park Clydebank, G81 2QR United Kingdom |
|
Operator |
Navigator Gas 21 Palmer Street London, SW1H 0AD United Kingdom |
|
Registered owner |
Navigator Ceres LLC Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Latest data adjustment |
01 February 2022 |
