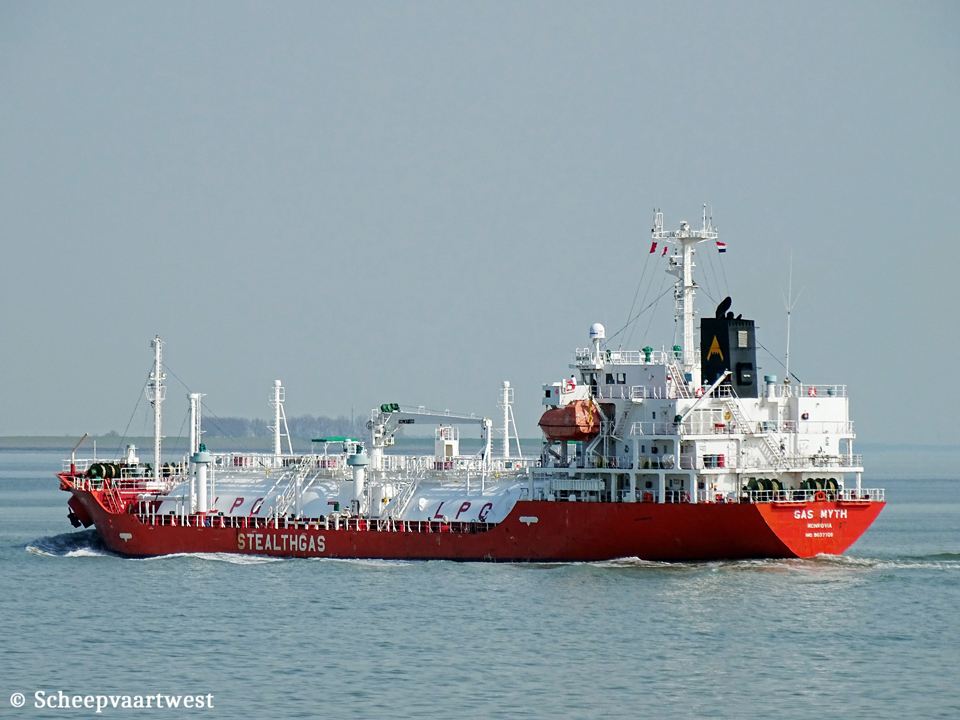

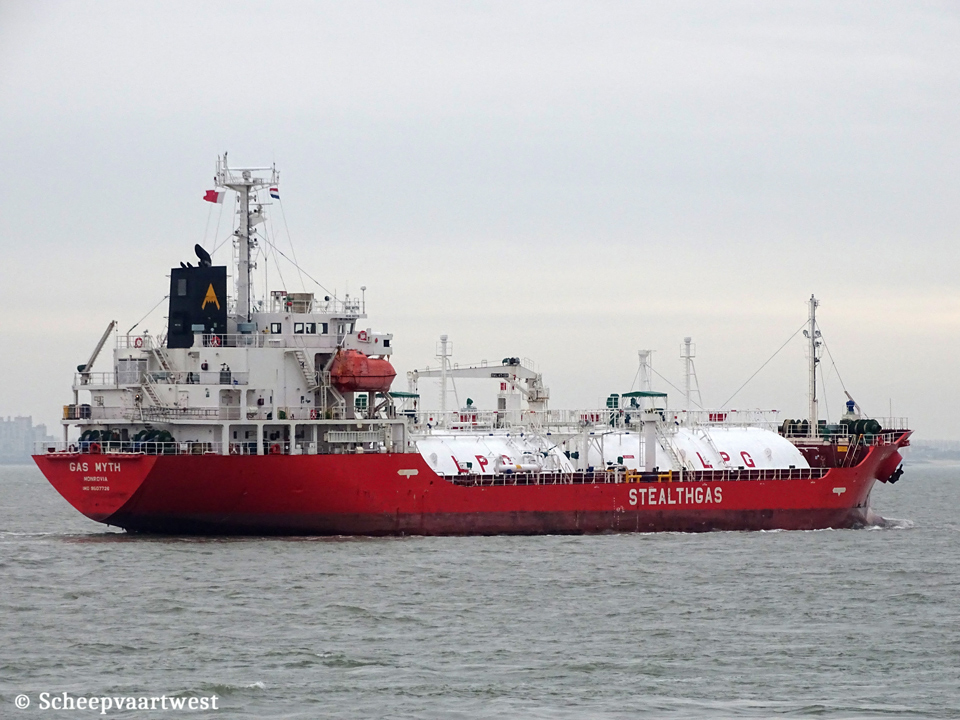

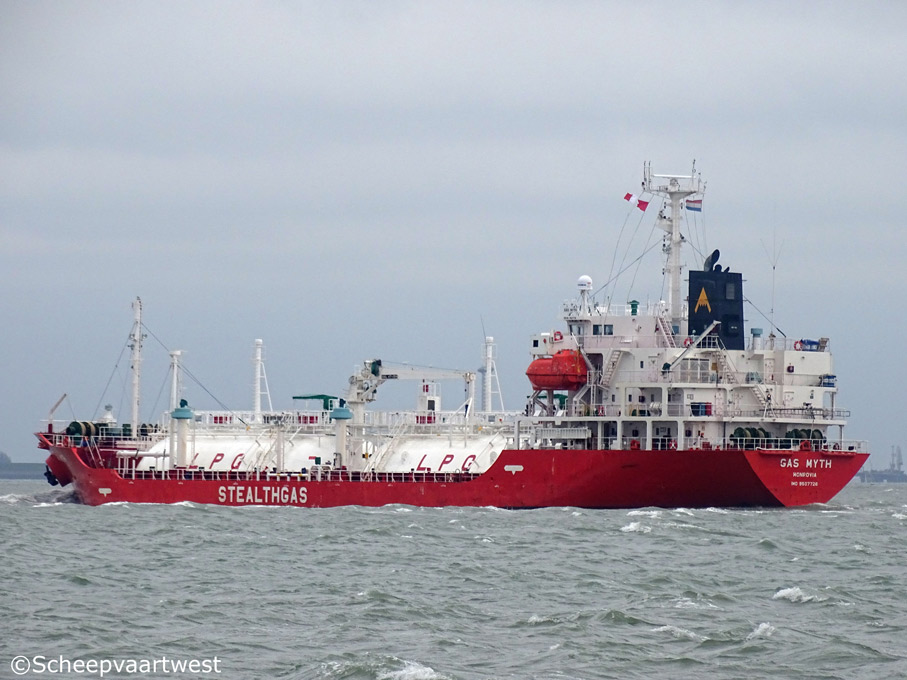

Westerschelde 05 July 2014 |
 |
 |
 |
 |
 |
 |
|||||

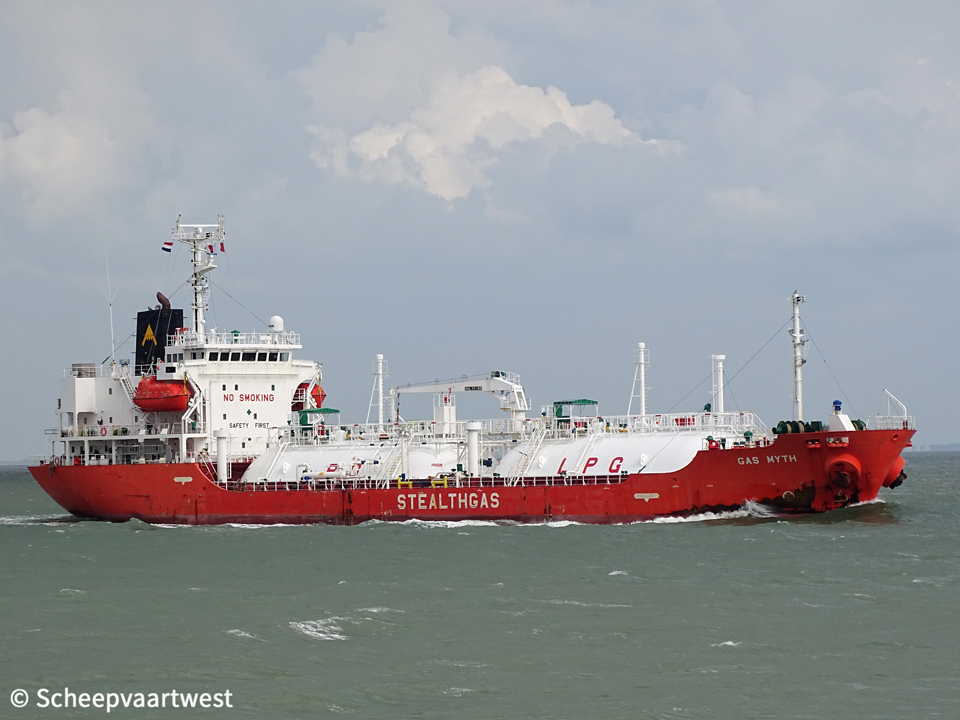

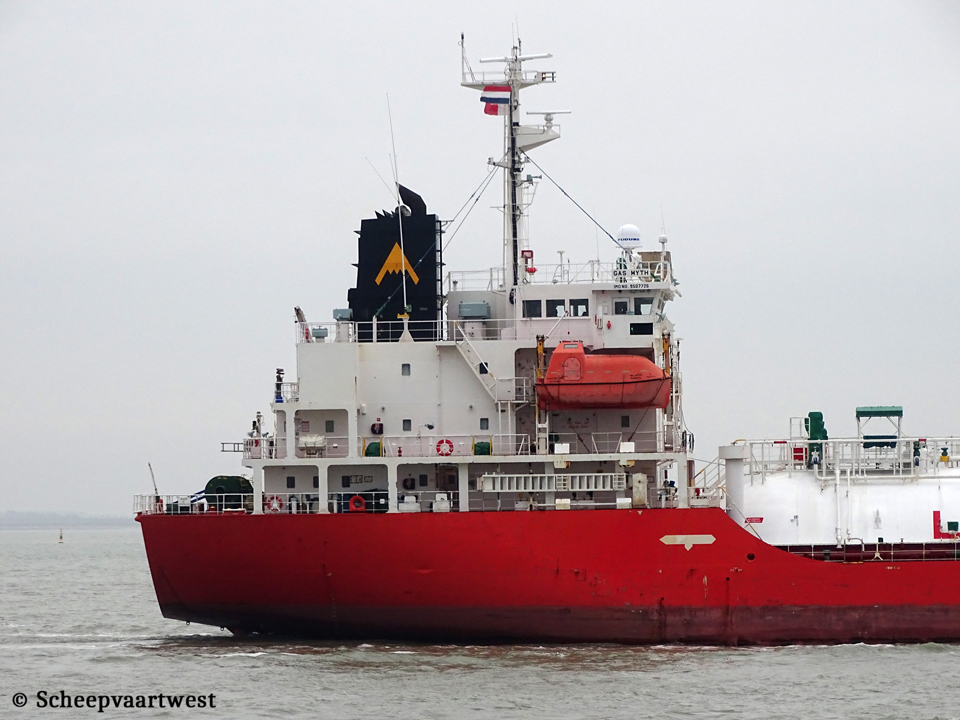

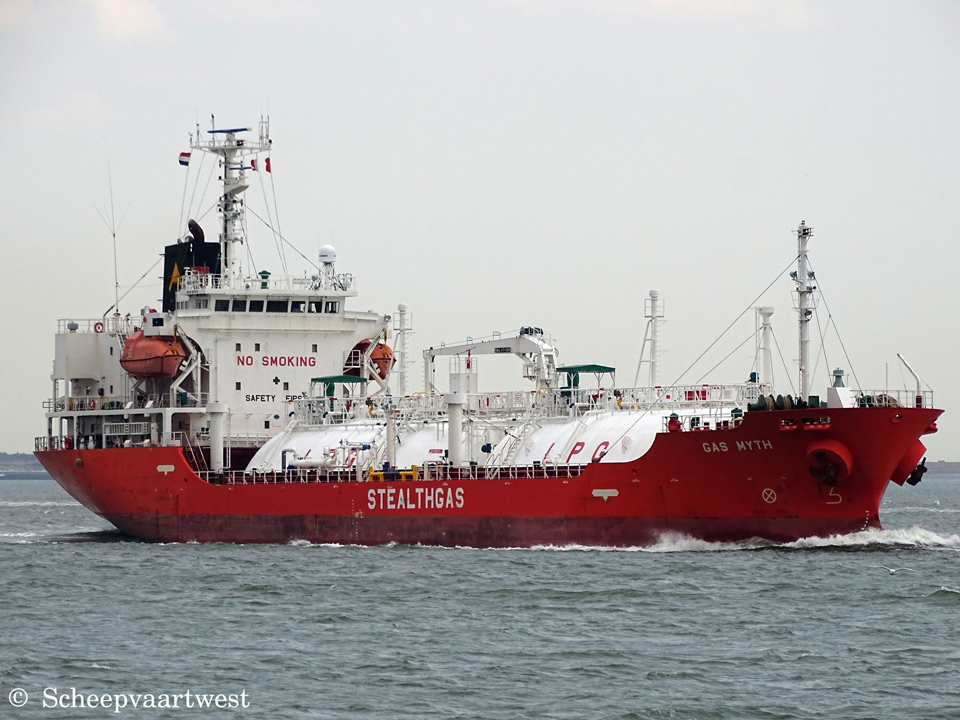

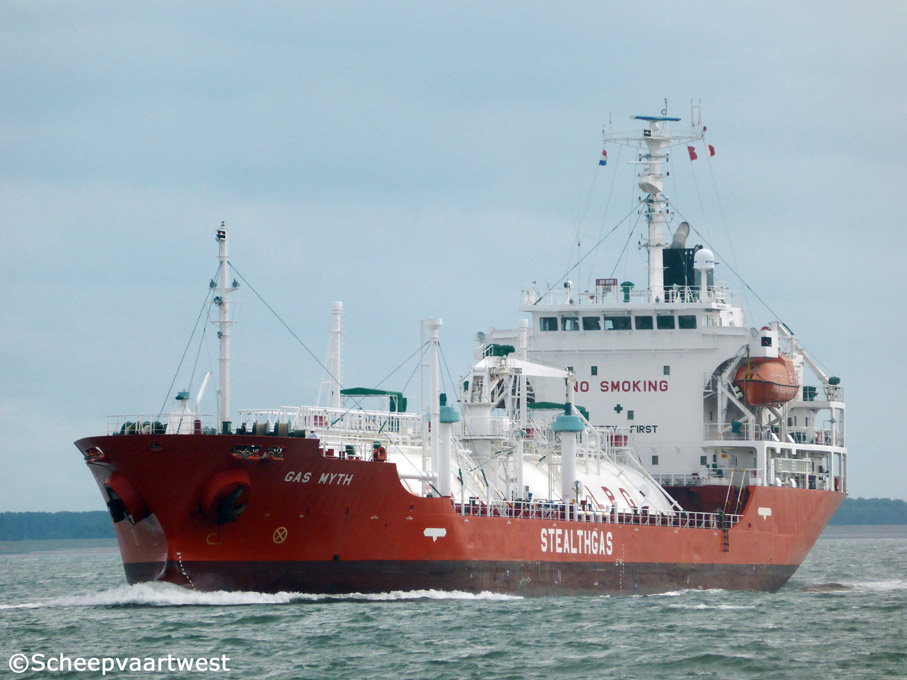

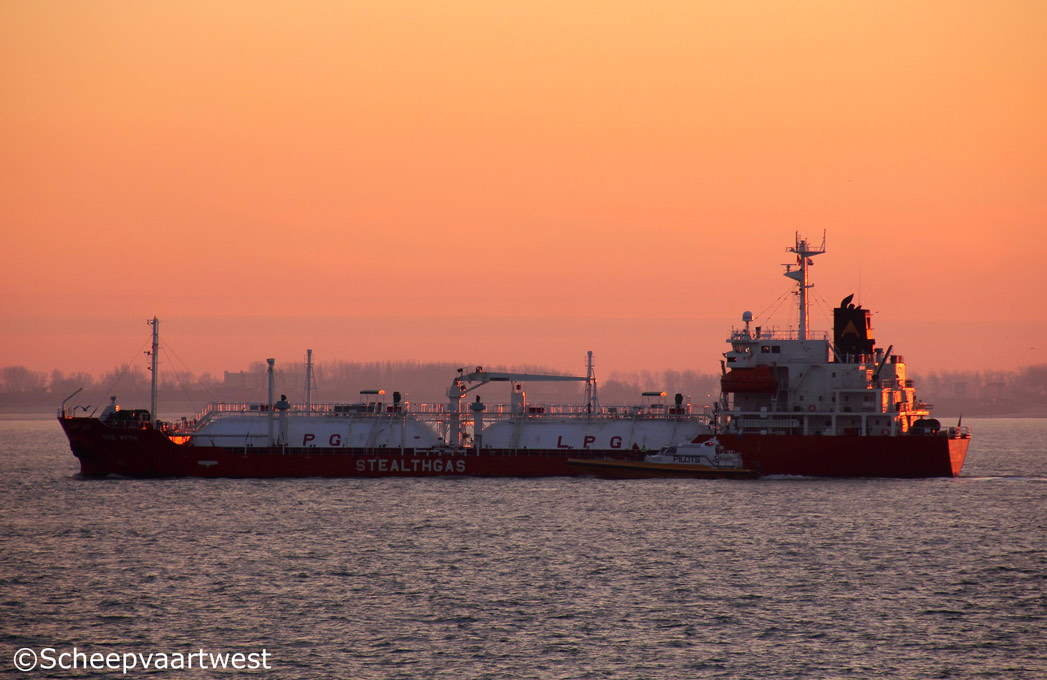

| Westerschelde 16/11/15 | Westerschelde 16/11/15 | Westerschelde 28/10/18 | Westerschelde 25/03/16 | Westerschelde 07/08/18 | Westerschelde 19/01/16 | |||||
 |
 |
 |
 |
|||||||

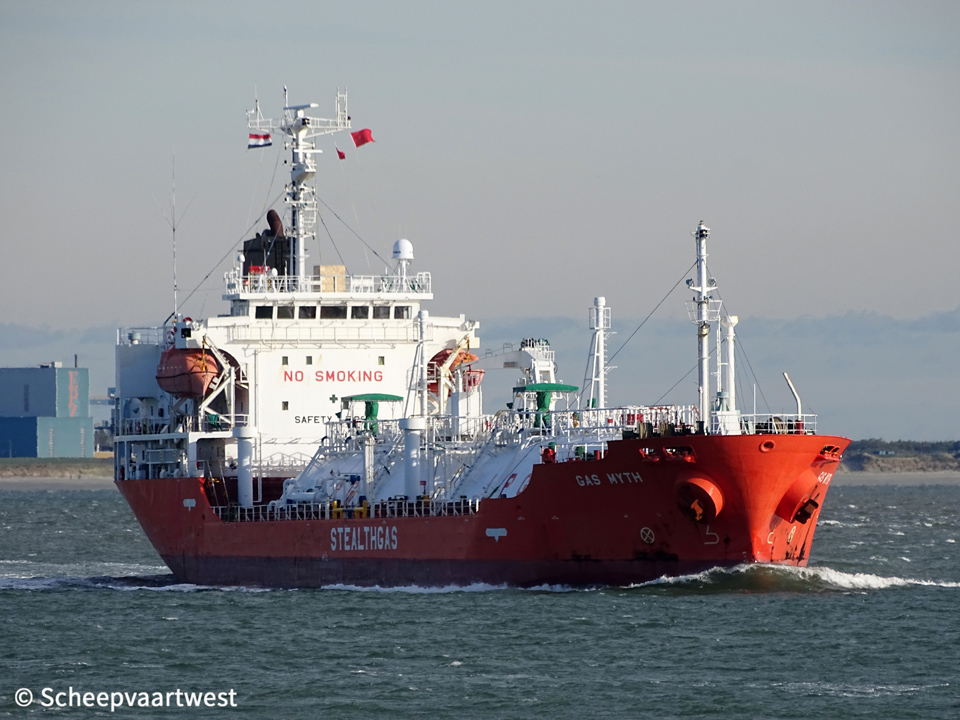

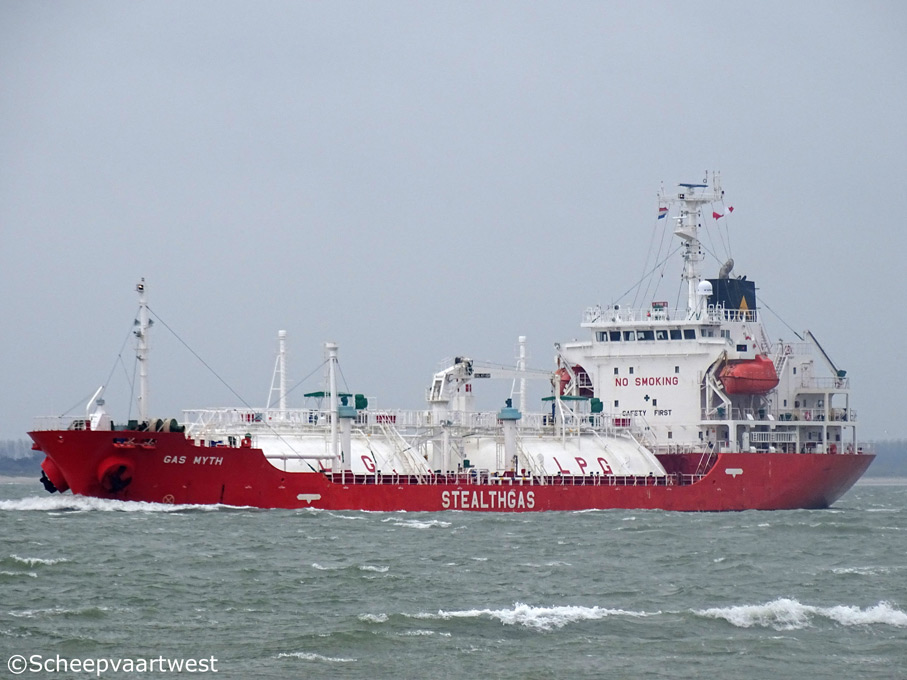

| Westerschelde 07/06/20 | Westerschelde 30/02/18 | Westerschelde 30/02/18 | Westerschelde 14/04/16 | |||||||
|
Name |
GAS MYTH |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9507726 |
|
Call sign |
A8YP9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
4.312 t registered Suez: 4.986,64 t |
|
DWT |
Summer: 5.004 t |
|
NT |
1.381 t registered Suez: 4.016,51 t Panama: 3.682,35 t |
|
Length |
99,90 m overall 93,50 m between perpendiculars |
|
Breadth |
17,60 m |
|
Draught |
Summer: 6,15 m |
|
Keel to mast end |
33,67 m |
|
Freeboard |
1.868 mm |
|
Depth |
8,00 m moulded |
|
Speed |
15,0 knots |
|
Built |
2011 |
|
Keel laid |
15/12/2010 |
|
Launch date |
02/04/2011 |
|
Date of completion |
21/09/2011 |
|
Builder |
Kanrei Shipbuilding Co., Ltd. 676 Satoura-Cho Satoura Aza Ebisu Naruto-City Tokushima Pref. 772-0021 Naruto-City, 772-0021 Japan |
|
Yard number |
K421 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
16 |
|
Main engine |
1x Mitsui/MAN-B&W 5L35MC - 2 stroke 5 cylinder 350 x 1.050 mm combustion engine 3.250 kW / 4.419 hp at 210 rpm Manufacturer: Makita Corporation |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Unfired exhaust gas boiler - 14,0 bar 1x Fired boiler - 7,0 bar Manufacturer: Miura Co., Ltd. |
|
Generators |
2x Yanmar 6NY16L-SN - 4 stroke diesel engine each 400 kW at 1.200 rpm connected with generators each 360 kW - 450 Volt 3 phase 60 Hz each Manufacturer: Nishishiba Electric Co., Ltd. |
|
Emergency generator |
1x Yanmar diesel NFD-150K diesel generatorset 80 kW |
|
Bow thruster |
1x 250 kW |
|
Number of cargo tanks |
8 |
|
Cargo tank capacity |
Liquid: 4.918 m³ |
|
Number of pumps |
2x Cargo pumps each 300 m³/h |
|
Number of tanks |
Ballast: 16 Fuel oil: 8 Lubricating oil: 7 Sludge: 5 Diesel oil: 4 Chain: 2 Fresh water: 2 Waste water: 1 |
|
Tank capacities 100% |
Diesel Oil: 126,9 m³ Freshwater: 212,38 m³ Fuel Oil: 493,23 m³ Lube Oil : 63,5 m³ Tank Ballast: 2.085,12 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 4,0 t 1x Provision Davit - SWL 0,9 t |
|
ISM & commercial manager |
Stealth Maritime corporation S.A. 331 Kifisias Ave. Kifisia Greece |
|
Registered owner |
Pelorus Inc., Monrovia - Liberia Care of Stealth Maritime Corp SA 331, Kifisias Avenue, Kifisia 145 61 Athens Greece |
|
Latest data adjustment |
14 September 2023 |
