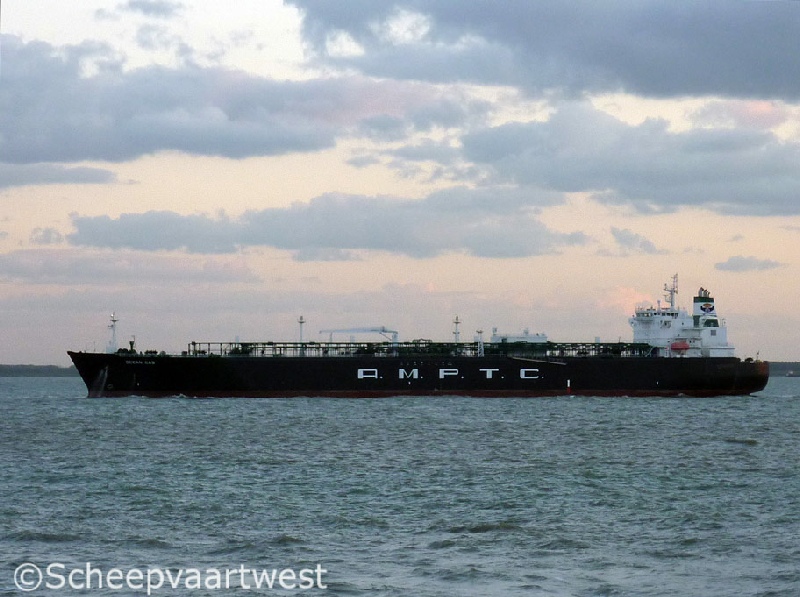

Ocean Gas - IMO 9388687

Name

OCEAN GAS

Type

Liquefied gas carrier

IMO-number

9388687

Call sign

3ETS3

Flag

Republic of Panama

Port of registry

Panama City

GT

47.072 t

Suez: 50.291,98 t

DWT

54.495 t

NT

15.845 t

Suez: 46.322,24 t

Length

225,00 m overall

215,00 m between perpendiculars

Breadth

36,60 m

Draught

11,40 m

Depth

22,00 m

Built

2008

Date of completion

24.10.2008

Builder

Hyundai Samho Heavy Industries Co., Ltd.
1700, Yongdang-Ri, Samho-Eup
526-701 Youngam-Gun
Republic of Korea

Yard number

S334

Hull type

Double hull

Main engine

1x Hyundai-B&W 6S60MC-C - 2 stroke single acting marine diesel - 13.560 kW at 105,0 rpm

Boilers

1x Automatic, Forced draft, H.F.O. burning type
Evaporation 3.000 kg/h Working press 6,0 kg/cm²

1x Exhaust gas economizer

Vertical, smoke tube type with steam space
Evaporation: abt. 1.500 kg/h, working press 6,0 kg/cm²

Generator

3x Main diesel generatorset 4 stroke

2x 1.740 kW at 720 rpm with generator power 2x 1.380 kW

1x 1.280 kW at 720 rpm with generator power 1x 1.200 kW

Windlass

2x Electro-hydraulic, deck machinery type
Capacity:

Cable lifter 31,2 t x 9,00 m/min

Mooring drum 20,0 t x 15,00 m/min.

Mooring winches

6x Electro-hydraulic, deck machinery type
Capacity: 15,0 t x 15,00 m/min for mooring drum (FWD, AFT & MID)

Cargo system

4x Independent self supporting cargo tank
Maximum allowable relief valve setting (harbour) 0,4 bar g.
Maximum allowable relief valve setting (seagoing) 0,275 bar g.
Maximum cargo tank service pressure 0,95 bar abs (approx.)

Lifting equipment

1x Hose handling crane electro-hydraulic type
Capacity: 10,0 t x 10,00 m/min

Working radius: 24,00 m

Manager

Arab Maritime Petroleum Transport Co.
9th Floor Nile Tower Bldg. Giza Street P.O. Box 143 Giza
12211 Cairo
Egypt

Operator

AMPTC - Arab Maritime Petroleum Transport Company

Owner

Arab Maritime Petroleum Transport Co.
9th Floor Nile Tower Bldg. Giza Street P.O. Box 143 Giza
12211 Cairo
Egypt
