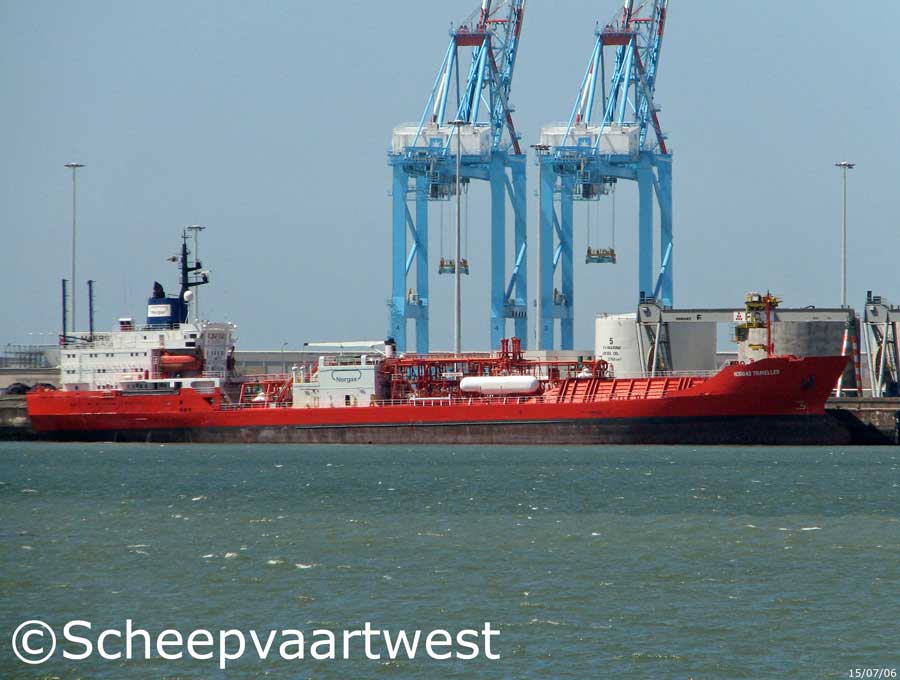

| Zeebrugge 15 July 2006 |
|
Name |
NORGAS TRAVELLER |
|
Previous names |
General cargo 1980 - 1980 Beate 1980 - 1987 Crusader Point Gas tanker 1987 - 1990 Olefine Gas |
|
Type |
Liquefied gas tanker |
|
IMO-number |
8026012 |
|
Call sign |
9VJT9 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
6.711 t |
|
DWT |
Summer: 7.770 t LPG draft: 4.912 t |
|
NT |
2.013 t |
|
Length |
129,99 m overall |
|
Breadth |
17,60 m registered |
|
Draught |
Summer: 7,573 m |
|
Forecastle |
9,769 m |
|
Poop |
23,519 m |
|
Depth |
9,91 m moulded |
|
Speed |
Service: 15,5 knots LPG draft: 13,0 knots (max.: 4 Bft) |
|
Built |
1980 Rebuild: 1987 ship lengthened 08.1987 |
|
Keel laid |
02.11.1979 |
|
Launch date |
12.1979 |
|
Date of completion |
31.03.1980 |
|
Builder |
VEB Schiffswerft "Neptun" Rostock |
|
Yard number |
489 / 948 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN K 6 Z 57/80 F - 2 stroke single acting 6 cylinder 570 x 800 mm diesel engine - 3.972 kW at 225 rpm Transmission: Main propulsion acts directly on the propellershaft Starter type: Compressed air direct Year of manufacture: 1979 Manufacturer: VEB Maschinenbau Halberstadt |
|
Number of screws |
1x Solid propeller - aft |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 25,2 m² 1x Exhaust gas heated boiler - 8,0 bar Heating surface: 69,2 m² Year of manufacture: 1979 Manufacturer: VEB Dampfkesselbau Dresden-Übigau |
|
Electric installations |
1x Plant 380/220 V - 1.500 kVA 1x Plant 380 V - 100 kVA |
|
Generators |
3x SKL8VD 36/24 main diesel generatorsets each 500 kVA |
|
Emergency generator |
1x Diesel generatorset 150 kVA |
|
Compressed air Receivers |
2x Receivers each 2.000 litres - 30,0 bar |
|
Bow thruster |
Yes |
|
Number of cargo tanks |
3 |
|
Cargo capacity |
7.110 m³ |
|
Largest cargo tank |
2.960 m³ |
|
Min. tank pressure |
-0,3 bar |
|
Min. tank temperature |
-104 °C |
|
Loading rate |
600 m³/h |
|
Discharging |
600 m³/h |
|
Deepwell pumps |
6x 100 m³/h at 120 mLC |
|
Booster pump |
1x 260 m³/h at 120 mLC |
|
Cargo heater |
200 m³/h |
|
Tank capacities |
Ballast water: 2.522 m³ Fuel oil: 537 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Operator |
Norgas Carriers AS |
|
Owner |
I.M. Skaugen Marine Services Pte. Ltd. |
