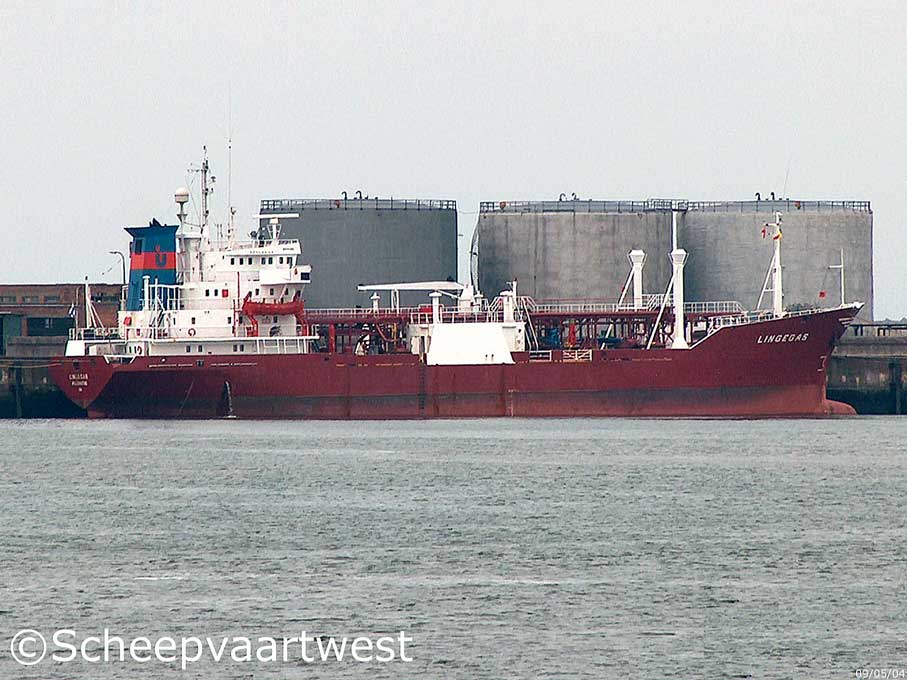

| Zeebrugge 09 May 2004 |
|
Name |
LINGEGAS |
|
Type |
Liquefied gas tanker |
|
IMO-number |
8008383 |
|
Call sign |
PJKZ |
|
Flag |
Netherlands Antilles |
|
Port of registration |
Willemstad |
|
GT |
2.712 t |
|
DWT |
3.403 t |
|
NT |
813 t |
|
Length |
82,56 m overall 74,95 m m registered |
|
Breadth |
14,10 m |
|
Draught |
Summer: 6,51 m |
|
Forecastle |
17,80 m |
|
Depth |
9,02 m |
|
Speed |
13,5 knots |
|
Built |
1981 |
|
Keel laid |
28.04.1980 |
|
Launch date |
27.02.1981 |
|
Date of completion |
27.05.1981 |
|
Builder |
B.V. Scheepswerf Waterhuizen J. Pattje |
|
Yard number |
345 |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main Engine |
1x Deutz SBV 6 M 540 - 4 stroke single acting 6 cylinder 370 x 400 mm diesel engine - 1.839 kW at 550 rpm Built: 1980 Builder: Klöckner-Humboldt-Deutz AG |
|
Number of screws |
1x Solid propeller (keyless) - aft at 179 rpm |
|
Boiler |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 29,8 m² Year of manufacture: 1980 |
|
Electric installations |
1x Plant 440 V - 857,5 kVA 1x Plant 24 V - 15,2 kW |
|
Shaft generator |
1x 287.5 kVA |
|
Generators |
2x Main diesel generatorsets each 285 kVA |
|
Emergency generator |
1x Diesel generatorset 15,2 kW |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Number of cargo tanks |
2 |
|
Liquid cargo |
3.232 m³ |
|
Largest cargo tank |
1.757 m³ |
|
Tank capacities |
Ballast water: 1.359 m³ Fuel oil: 239 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Anchor chain: 440,00 m |
|
Lifting equipment |
1x Crane - SWL 2,4 t |
|
Manager |
Sloman Neptun Schiffahrts-A.G |
|
Shipping company |
Anthony Veder Rederijzaken B.V. |
|
Owner |
Lingegas Shipping N.V |
|
Renamed |
2007 Ingegas |
|
Scrapped |
11.2013 |
|
Last update |
10 December 2013 |
