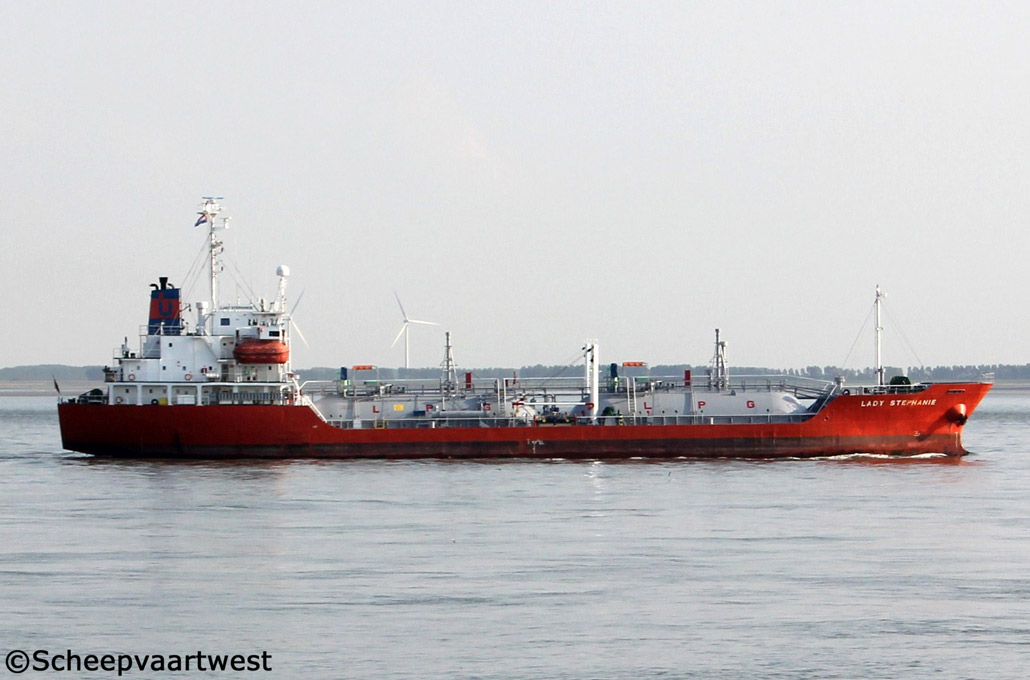

| Westerschelde 07 October 2013 |
 |
 |
|

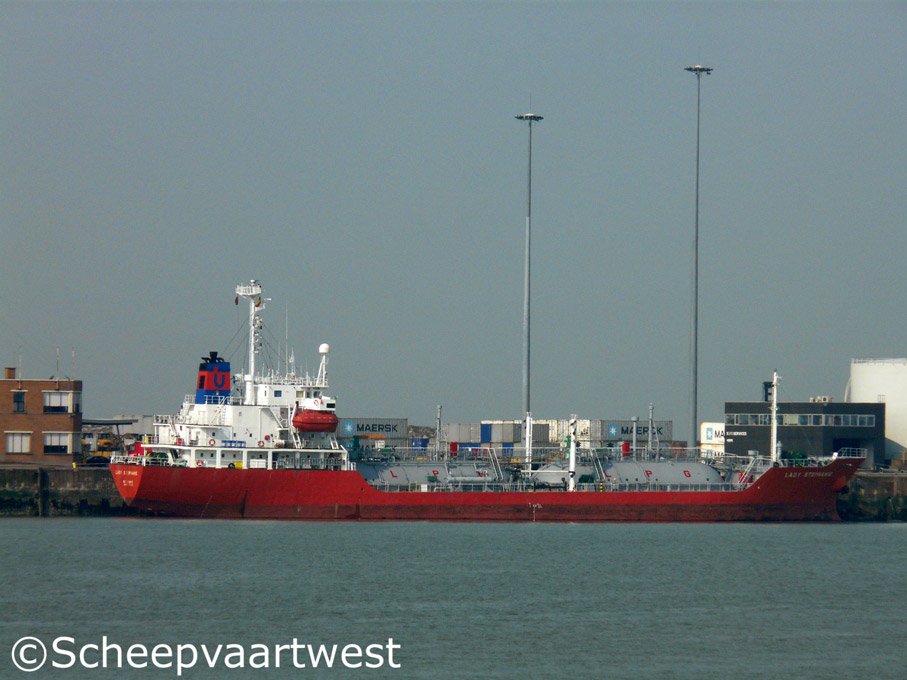

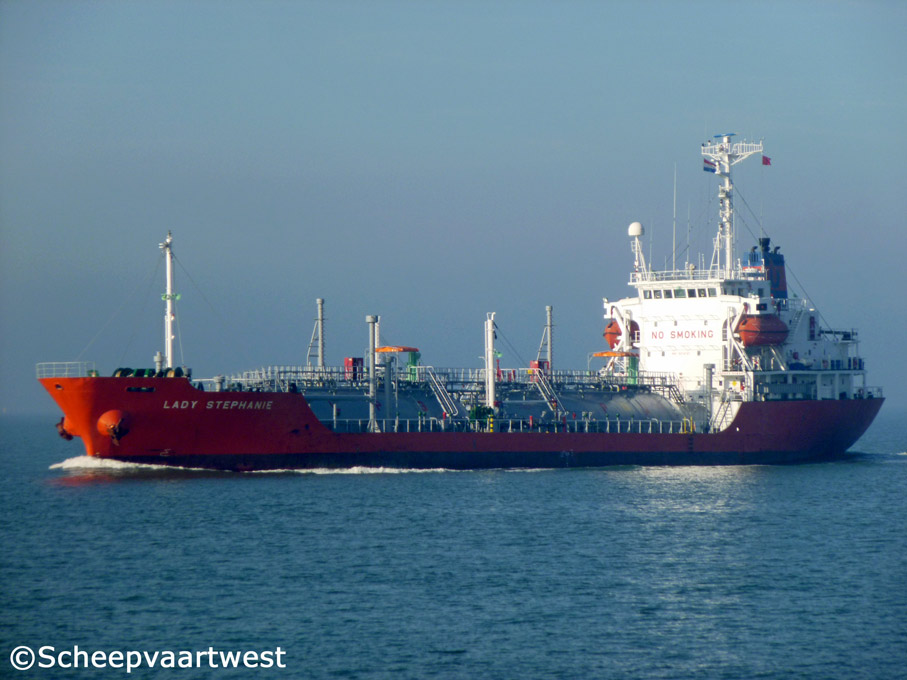

| Zeebrugge 25/03/11 | Westerschelde 20/08/13 |
|
Name |
LADY STEPHANIE |
|
Type |
Liquefied gas tanker |
|
IMO-number |
9014781 |
|
Call sign |
V2BM9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
3.393 t |
|
DWT |
Summer: 4.320,25 t |
|
NT |
1.018 t |
|
Length |
99,60 m registered 91,73 m between perpendiculars |
|
Breadth |
15,82 m |
|
Draught |
Summer: 5,76 m |
|
Freeboard |
1.570 mm |
|
Depth |
7,30 m |
|
Speed |
13,0 knots |
|
Built |
1991 |
|
Date of completion |
25.05.1991 |
|
Builder |
Shin Yamamoto Shipbuilding |
|
Yard number |
330 |
|
Hull material |
Steel |
|
Hull type |
Single hull Double Bottom |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi - 2 stroke 6 cylinder 370 x 880 mm diesel engine - 2.427 kW / 3.297 hp at 195 rpm Licence: Akasaka Builder: Mitsubishi, Yonchi - Japan |
|
Propelling system |
1x Screw propeller solid at 195 rpm |
|
Boilers |
1x CHO MIURA 7,20 m² - 7,0 bar |
|
Electrical installation |
Power voltage: 445 V Lighting voltage: 105 V Frequency: 60 Hz |
|
Generators |
2x Diesel generatorsets each 300 kVA - 240 kW - 360 hp |
|
Emergency generators |
1x Diesel generatorset 5 kVA - 4 kW - 8 hp |
|
Total tank capacity |
3.200 m³ |
|
Tank max. pressure |
18,0 bar |
|
Minimum temperature |
0°C |
|
Pumps |
2x 600 m³/h |
|
Fuel capacity |
525 m³ |
|
Crew |
15 |
|
Manager |
Eurasia International GmbH |
|
Operator |
Unigas |
|
Owner |
Stephanie Shipping Co. Ltd. |
