| Zeebrugge 20 January 2009 |
|
Name |

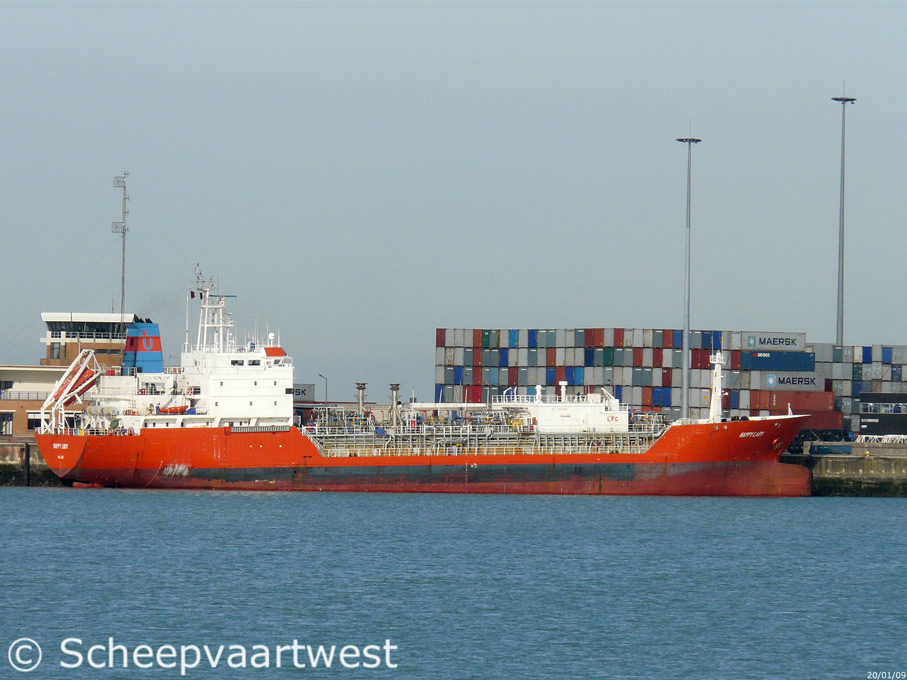

HAPPY LADY |
|
Previous names |
1994 - 2000 Jade Star 2000 Pugliola |
|
Type |
Liquefied gas tanker |
|
Main products |
Ammoniac; Butane; Ethylene; Liquefied petroleum gases; Propylene oxide; Vinyl-Chloride monomer |
|
IMO-number |
9013696 |
|
Call sign |
V7OW8 |
|
Previous call sign |
LAQI5 |
|
Flag |
Marshall Islands |
|
Previous flag |
1994 Italy 2000 Republic of Panama 2008 Norway International Register |
|
Port of registry |
Majuro |
|
Previous port of registry |
Stavanger |
|
GT |
6.107 t |
|
DWT |
7.598 t |
|
NT |
2.076 t |
|
Length |
112,24 m overall |
|
Breadth |
17,60 m overall |
|
Draught |
Summer: 8,51 m |
|
Bow to bridge |
82,50 m |
|
Keel to masthead |
32,50 m |
|
Freeboard |
2.360 mm |
|
Depth |
9,80 m |
|
Speed |
15,0 knots |
|
Built |
1993 |
|
Keel Laid |
29.12.1989 |
|
Date of Build |
31.12.1993 |
|
Builder |
Ind. Navali Mecc. Affini - IMNA |
|
Yard number |
4138 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6R46 - 4 stroke 6 cylinder 460 x 580 diesel engine- 5.430 kW / 7.378 hp at 500 rpm Built: 1991 Builder: Wärtsilä Helsinki, Vaasa- Finland |
|
Propelling system |
1x Screw propeller controllable pitch at 115 rpm |
|
Boiler |
1x CHM Aalborg Ciservint 137,00 m² - 9,0 bar |
|
Electrical installation |
Power Voltage: 440 V Lighting Voltage: 230 V Frequency: 60 Hz |
|
Generators |
1x Diesel generatorset 1.050 kVA - 840 kW - 1.141 hp |
|
Emergency generators |
1x Diesel generatorset 293 kVA - 234 kW - 349 hp |
|
Number of tanks |
6 |
|
Tank max. pressure |
7,5 bar |
|
Cargo capacity |
7.414 m³ |
|
Tank capacities |
Ballast: 1.617 m³ Bunker: 751 t |
|
Anchor chain |
Length: 247,5 m |
|
Crew |
19 |
|
Manager |
Bernhard Schulte Group Germany |
|
Previous manager |
Bernhard Schulte Shipmanagement Company Ltd. |
|
Group |
Unigas |
|
Time charter |
Othello Shipping Company |
|
Owner |
Maulevous Shipping |
|
Previous owner |
Crystal River Shipping Inc. |
