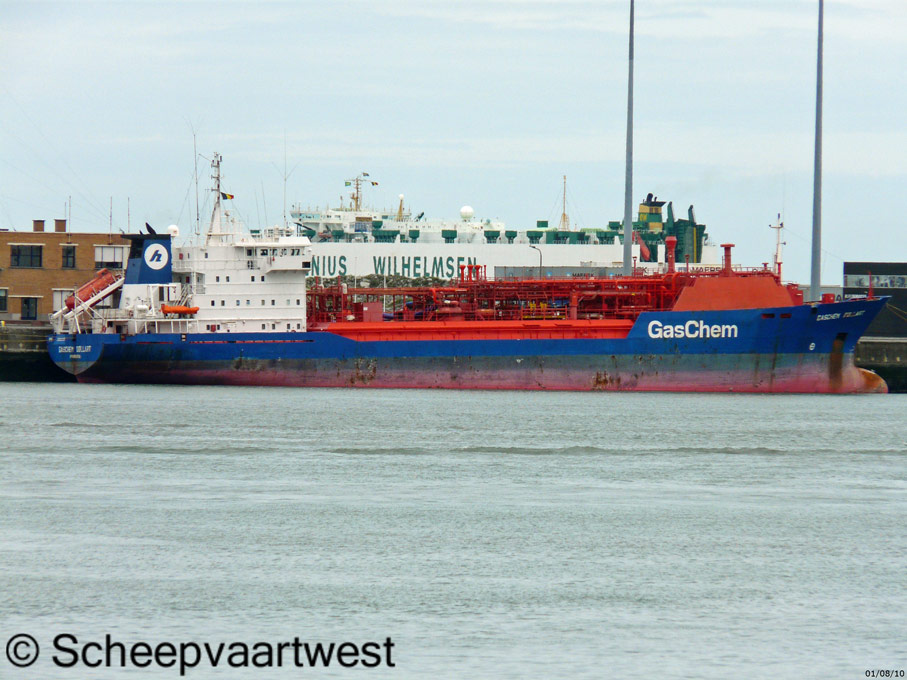

Gaschem Dollart 05
Zeebrugge 01 August 2010



Name

GASCHEM DOLLART

Type

Liquefied gas tanker

Ethylene / LPG / VCM / Ammonia carrier

IMO-number

8922292

Official number

91247

Call sign

A8LC3

Flag

Republic of Liberia

Port of registry

Monrovia

GT

4.200 t

DWT

5.668 t

NT

1.260 t

Length

99,89 m overall

92,67 m between perpendiculars

Breadth

15,90 m registered

Draught

Summer: 6,695 m

Forecastle

9,22 m

Distance keel - top antenna

33,80 m

Freeboard

2.317 mm

Depth

9,00 m moulded

Speed

14,00 knots

Built

1990

Keel laid

13.04.1989

Launch date

23.03.1990

Date of completion

07.1990

Builder

Scheepswerf Pattje B.V.
Waterhuizen 7
9609 PA Hoogezand
The Netherlands

Yard number

374

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MAK 9 M 453 C - 4 stroke single acting 9 cylinder320 x 420 mm diesel engine - 3.000 kW at 600 rpm

Year of manufacture: 1990

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 203 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 26,5 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 96,0 m²

Year of manufacture: 1990

Manufacturer: Konus-Kessel Ges. f. Wärmetechnik mbH
Robert Bosch-Str. 3 - 5
68723 Schwetzingen
Federal Republic of Germany

Electric installations

1x Plant 440/220 V - 1.788 kVA

1x Plant 440 V - 1.500 kVA

1x Plant 440 V - 81 kVA

Shaft generator

1x 1.500 kVA

Generators

2x Caterpillar 3508 DITA diesel engines driving 2 generators each 760 kW / 950 kVA at 1.800 rpm

Emergency generator

1x Diesel generatorset 81 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 250 kW, forward

Number of tanks

2

Cargo capacity at 100 %

Tank 1: 1.313,74 m³

Port side: 1.460,49 m³

Stb: 1.459,31 m³

Total: 4.233,54 m³

Tank capacities

Fuel oil: 725,2 m³

Diesel oil: 110,7 m³

Fresh water: 55 m²

Water ballast: 1.410 m³

Max. tank pressure

4,7 bar

Max. external pressure

0,3 bar

Min. design temperature

-140°C

Max. product density

972 kg/m³

Deepwell pumps

3x NH 125/100-4-K+i

Make: Svaenhoj

Max. density kg/dm³: 0,972

Capacity nominal: 150/120 m³

Working pressure: 16/14 bar

Speed: 1.785 rpm

Driven by: Electro motor

Power consumption: 90 kW

Booster pump

1x NIP 100 B-XLR

Make: Svanehoj

Max. density kg/dm³: 0,972

Capacity normal: 260/120 m³/h

Working pressure: 27/58 bar

Speed: 3.580 rpm

Driven by: Electro motor

Power consumption: 135 kW

Cargo compressor

Cargo: 3x Sulzer 2 K 105 - 2 F - oil free

R22: 2x Mycom F1612-C

Anchor equipment

3x Anchors weight each 2.640 kg

Chain length: 467,50 m

Lifting equipment

2x Cranes NMF - SWL 1.500 kg

Crew

15

Manager

Hartmann Schiffahrts GmbH & Co. KG
Königstr. 23
26789 Leer
Federal Republic of Germany

Operator

GasChem GmbH & Co. KG
Am sandtorkai 41
20457 Hamburg
Federal Republic of Germany

Owner

Chemgas Schiffahrts GmbH & Co. MT "DNEPR" KG
Königstr. 23
26789 Leer
Federal Republic of Germany
