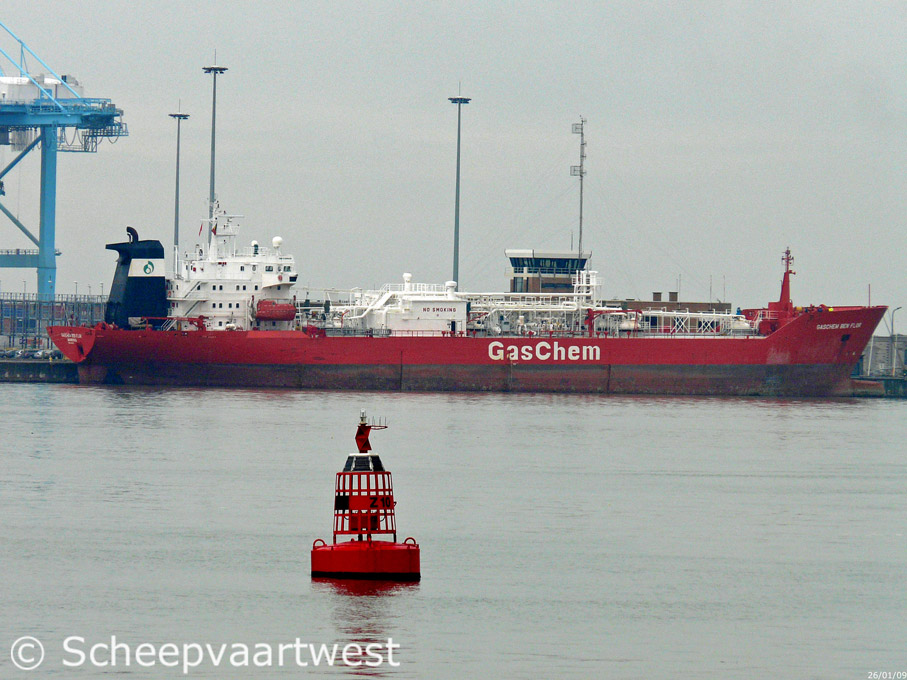

Gaschem Ben Flor - IMO 8409630

Name

GASCHEM BEN FLOR

Previous name

1985 - 11.2004 Ben Flor

Type

Liquefied Gas Tanker

LNG Tanker

IMO-number

8409630

Call sign

ELTV3

Flag

Liberia

Previous flags

1997 Germany

1998 Liberia

1998 Isle of man (UK)

Port of registry

Monrovia

GT

6.867 t

DWT

9.129 t

NT

2.060 t

Length

127,82 m overall

119,30 m between perpendiculars

120,25 m registered

Breadth

18,50 m registered

Draught

Summer: 8,301 m

Bow to bridge

90,00 m

Forecastle

14,89 m

Keel to masthead

32,30 m

Freeboard

3.500 mm

Depth

11,80 m moulded

Speed

11,5 knots

Built

1985

Keel laid

20.08.1984

Launch date

23.03.1985

Date of completion

06.1985

Frist movement

05.06.1985

Builder

Martin Jansen GmbH & Co. KG Schiffswerft und Maschinenfabrik
Industriestr. 16
Leer
Federal Republic of Germany

Yard number

189

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN 6 L 52/55 B - 4 stroke single acting 6 cylinder 520 x 550 mm diesel engine - 4.650 kW

Built: 1985

Builder: MAN Group Maschinenfabrik Augsburg-Nürnberg AG - Germany

Number of screws

1x Controllable pitch propeller - aft

Boiler

1x Thermal oil heater, oil fired - 10,0 bar
Heating surface: 42,8 m²
1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 207,30 m²
Year of manufacture: 1984
Manufacturer: HTI Hoch-Temperatur Industrieanlagen GmbH

Electric Installations

1x 440/220 V - 1.959 kVA

1x 440 V - 1.250 kVA

1x 440 V - 32 kVA

Shaft generators

1x 1.250 kVA

Generators

3x Main diesel generatorsets each 653 kVA

Emergency generator

1x Diesel generatorset 32 kVA

Bow thruster

1x Transverse thruster Hatlapa - 600 kW forward

Compressed air receivers

2x Receivers each710 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

2x Receivers each 20 litres - 30,0 bar

Number of cargo tanks

3

Cargo capacity

8.101 m³

Largest cargo tank

2.844 m³

Lifting equipment

1x Crane - SWL 1,25 t
2x Cranes - SWL 2,0 t each

Ballast capacity

2.859 m³

Anchor equipment

3x Anchors weight each 3.300 kg

Chain length: 495,00 m

Crew

15

Manager

Bernhard Schulte Group Shipmanagement (Deutschland) GmbH
Beim Strohhause 27
20097 Hamburg
Federal Republic of Germany

Operator

Gaschem Services GmbH & Co. KG
Am Sandtorkai 41
20457 Hamburg
Federal Republic of Germany

Owner

MT "BEN FLOR" GmbH & Co. KG
Vorsetzen 54
20459 Hamburg
Federal Republic of Germany

Renamed

24.02.2010 East Med Gas - Republic of Panama - Call sign: 3EYT4
01.2015 Solf to India Breakers

Latest data adjustment

20 January 2015
