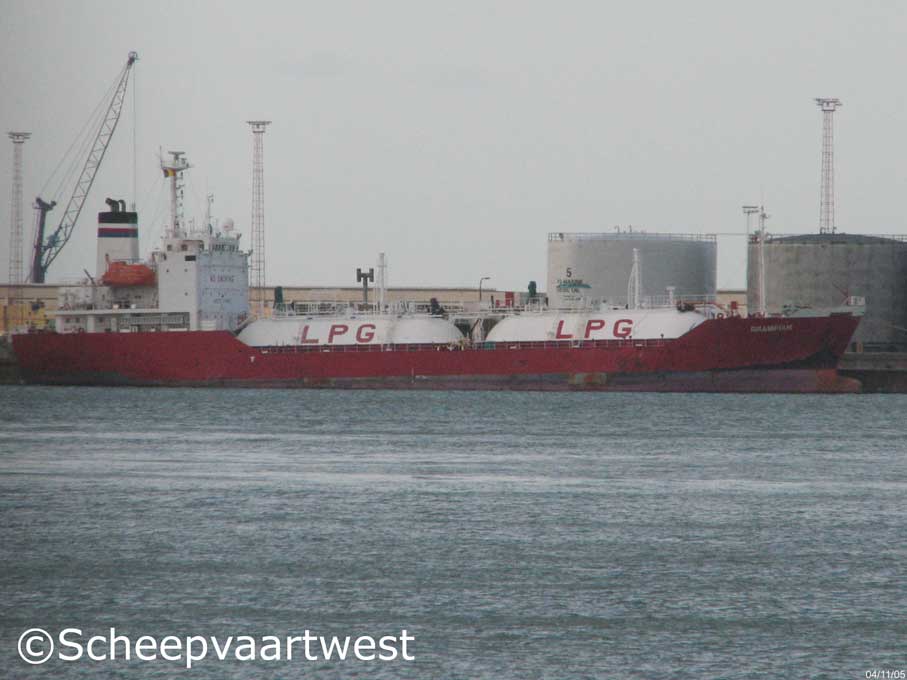

| Zeebrugge 04 November 2005 |
|
Name |
GRAMPIAN |
|
Previous names |
1996 - 2004 Gas Sriracha 2004 - 2007 Grampian |
|
Type |
Liquefied gas tanker |
|
IMO-number |
9142318 |
|
Call sign |
3FHW6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
3.504 t |
|
DWT |
2.981,38 t |
|
NT |
1.052 t Suez: 2.902,97 t Panama: 3.001 t |
|
Light displacement |
2.124,23 t |
|
Loaded displacement |
Summer: 5.105,61 t |
|
Length |
94,50 m overall |
|
Breadth |
16,60 m registered 16,80 m overall |
|
Draught |
Summer: 4,514 m |
|
Keel to highest point |
30,06 m |
|
Air draught |
26,62 m with normal ballast |
|
Depth |
7,10 m |
|
Speed |
13,0 knots |
|
Built |
1996 |
|
Date of completion |
28.06.1996 |
|
Builder |
Usuki Zosensho Shipyard Co. Ltd. |
|
Yard number |
1638 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S26MC Mark 5 - 2 stroke 6 cylinder 260 x 980 mm internal combustion engine - 2.405 kW / 3.268 hp Built: 1996 Builder: Hanshin Diesel Works Ltd., Kobe - Japan |
|
Number of screws |
1x Screw propeller solid |
|
Boiler |
1x CHM Tortoise 64,70 m² - 7,00 bar |
|
Generators |
3x Yanmar diesel generatorsets each 300 kVA - 240 kW - 360 HP |
|
Numbers of tanks |
2 |
|
Cargo capacity |
3517,267 m³ |
|
Cargo pumps |
2x deepwell cargo pumps 600 m³/h |
|
Fuel capacity |
399 m³ |
|
Manager |
Dorian (Hellas) S.A |
|
Operator |
Dorian (Hellas) S.A |
|
Registered owner |
Centaurus Transport Ltd. |
|
Renamed |
2007 Gas Evoluzione |
