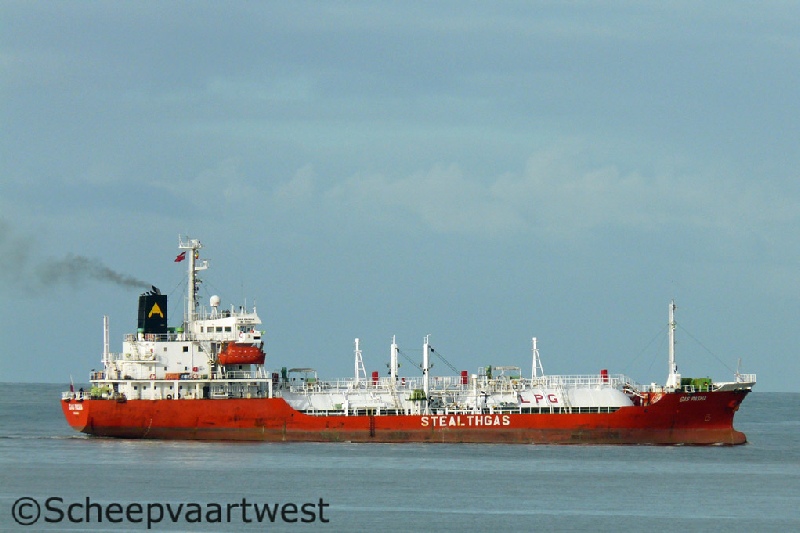

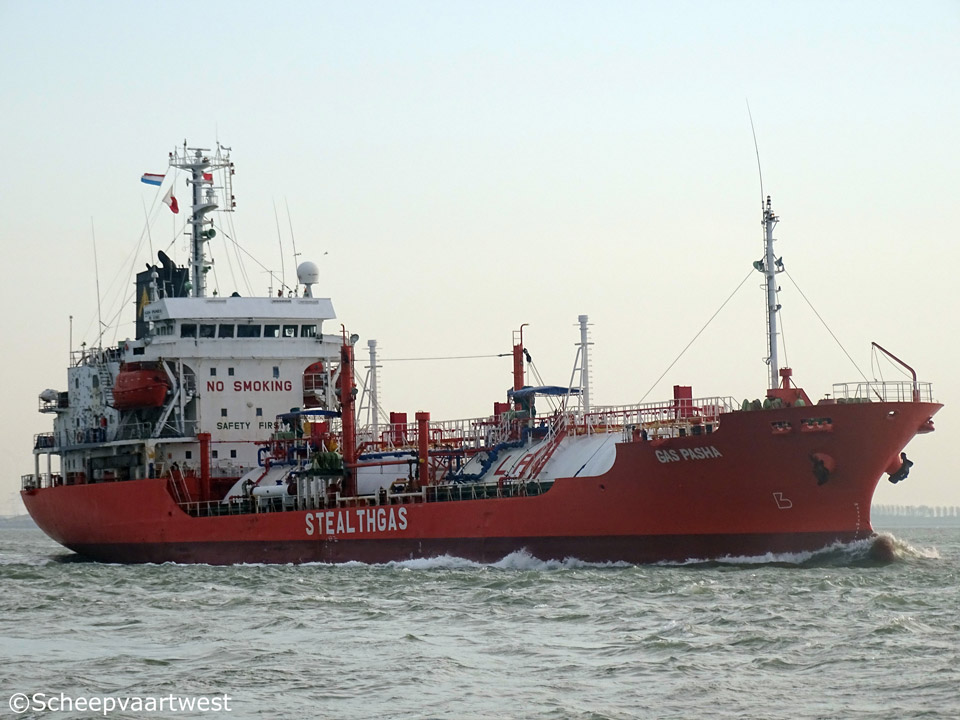

| Westerschelde 08 December 2015 |
 |
 |
 |
 |
 |
 |
|||||

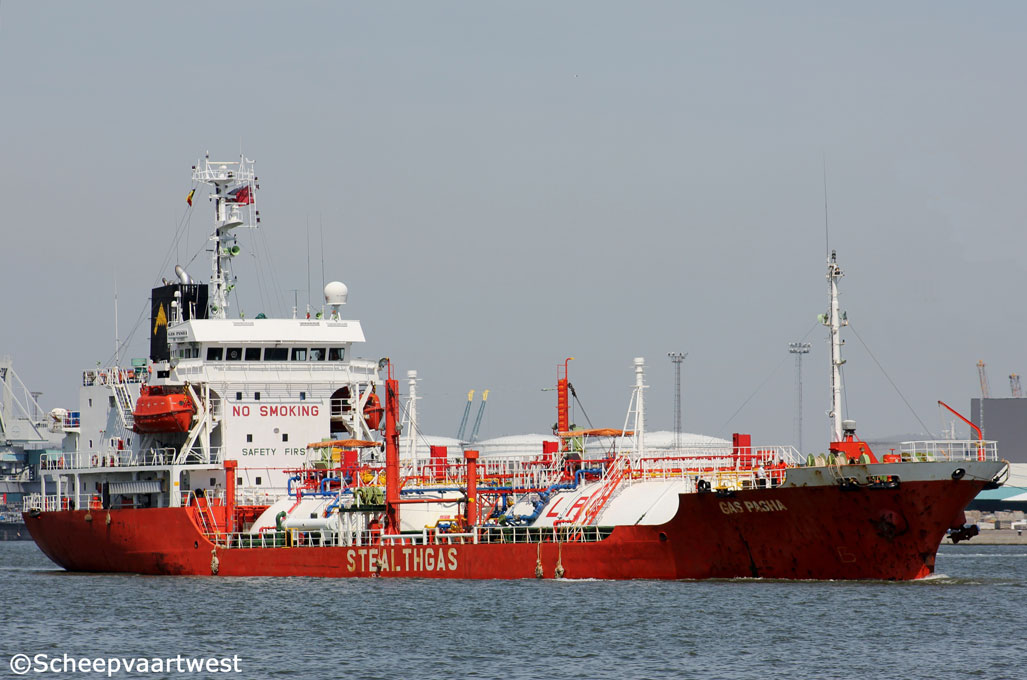

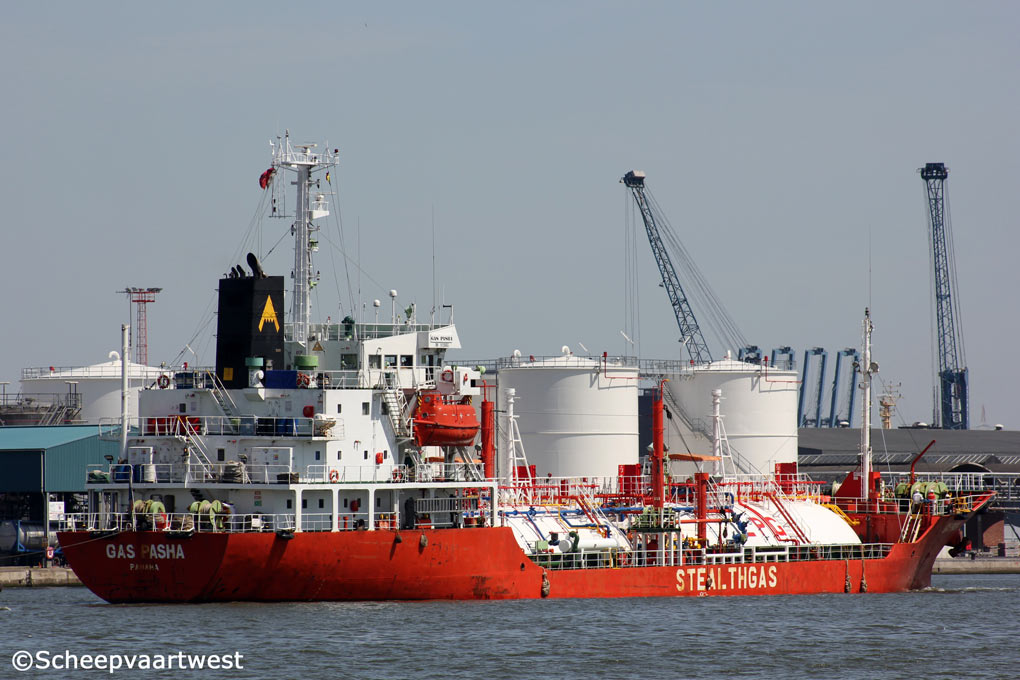

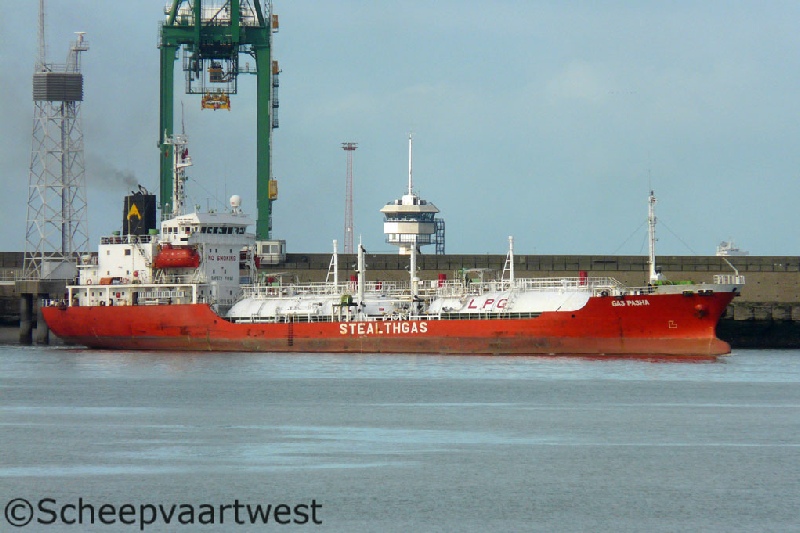

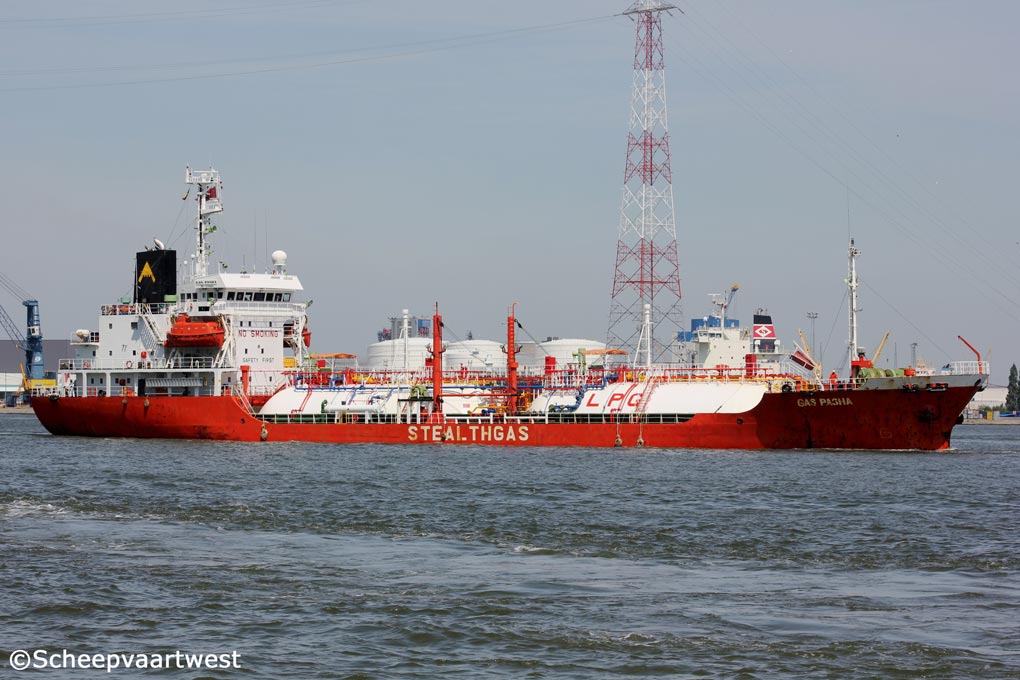

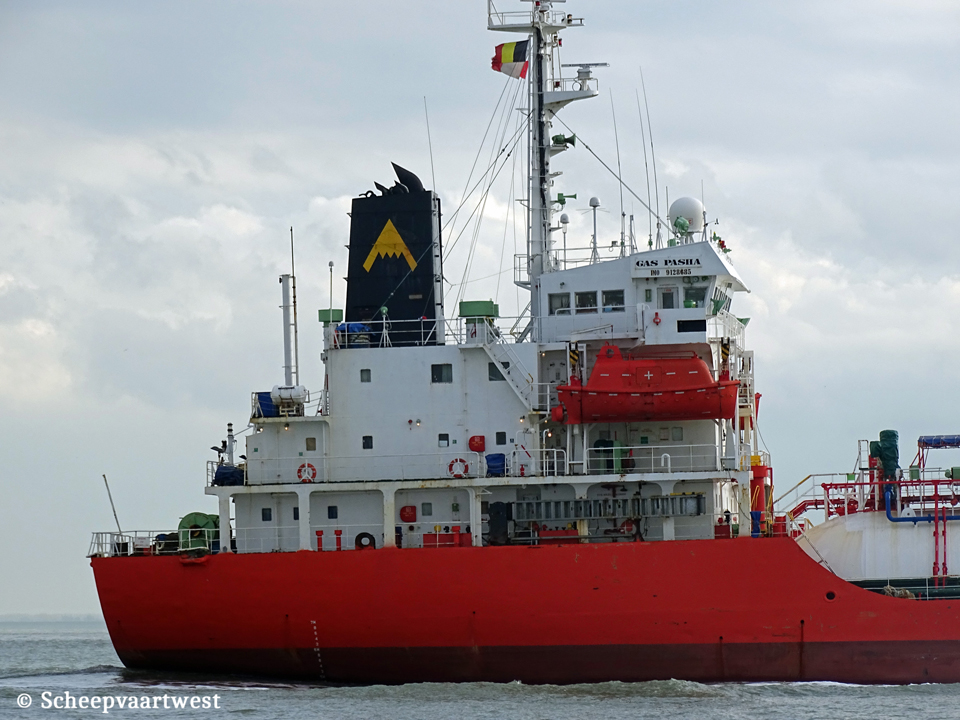

| Westerschelde 08/12/15 | Zeebrugge 14/01/12 | Zeebrugge 14/01/12 | Antwerpen 16/05/14 | Antwerpen 16/05/14 | Antwerpen 16/05/14 | |||||
 |
 |
 |
||

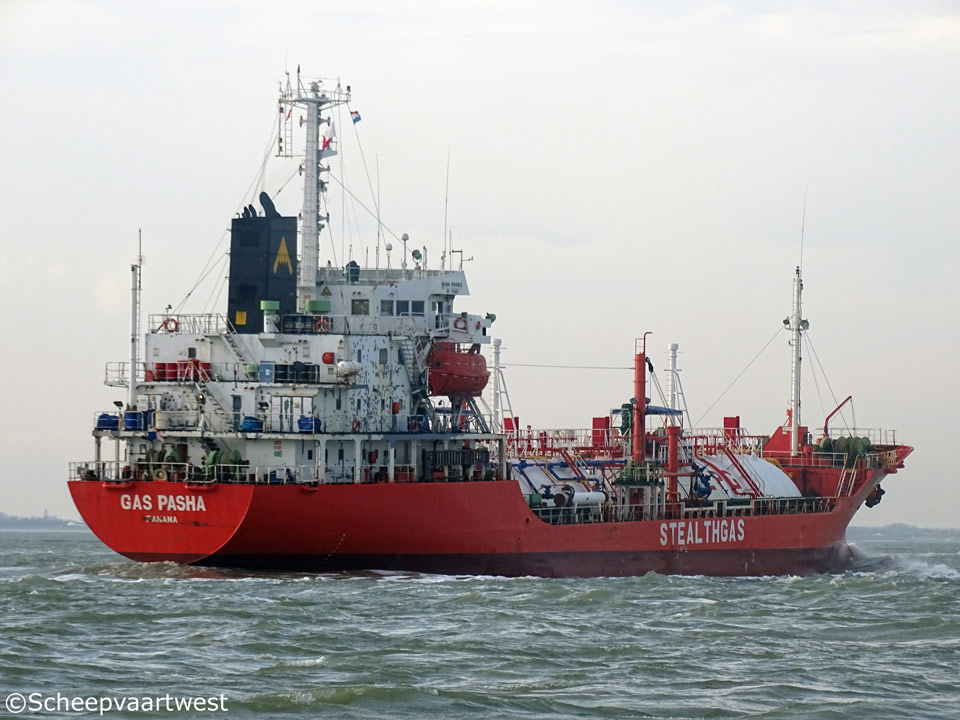

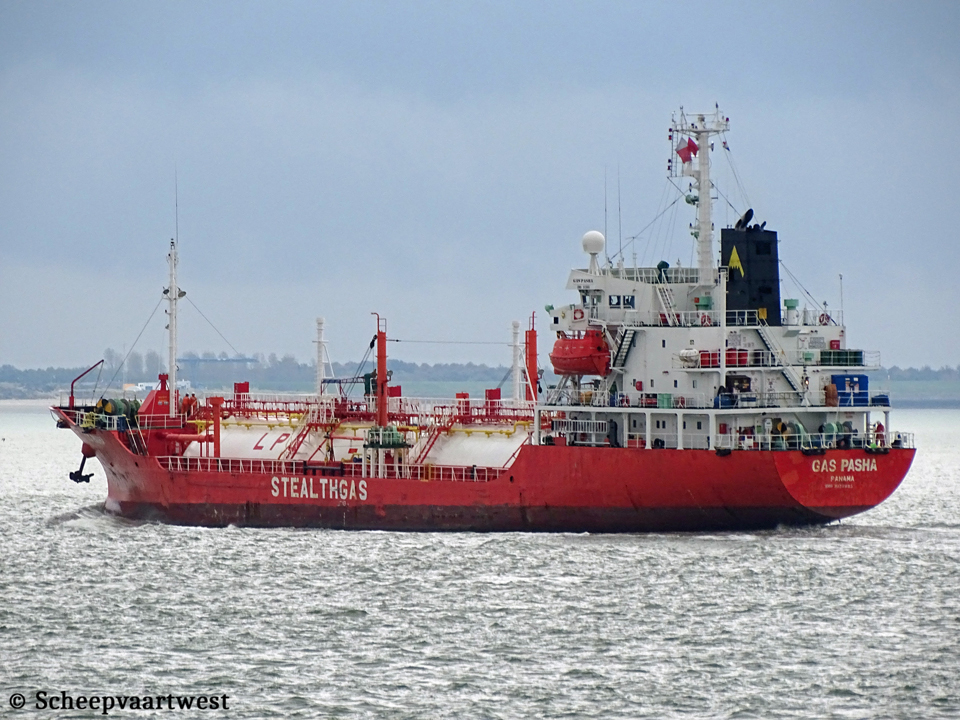

| Westerschelde 13/07/19 | Westerschelde 21/10/19 | |||
|
Name |
GAS PASHA |
|
Previous names |
1995 - 08/08 Batangas |
|
Type |
Liquefied gas tanker Spherical tank liquefied - Petroleum gas carrier |
|
IMO-number |
9128685 |
|
Call sign |
3FPP5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
2.926 t registered Suez: 3.370,61 t registered |
|
DWT |
3.201,63 t |
|
NT |
894 t registered Suez: 2.613,36 t registered |
|
Displacement |
5.219,33 t |
|
Length |
96,00 m overall 89,50 m between perpendiculars |
|
Breadth |
15,03 m moulder |
|
Draught |
Summer: 5,323 m |
|
Freeboard |
1.516 mm |
|
Depth |
7,00 m moulded |
|
Speed |
12,5 knots |
|
Built |
1995 |
|
Keel laid |
30/06/1995 |
|
Launch date |
07/09/1995 |
|
Delivery date |
20/12/1995 |
|
Builder |
Kanrei Shipbuilding Co., Ltd. 676 Satoura-Cho Satoura Aza Ebisu Naruto-City Tokushima Pref. 772-0021 Naruto-City, 772-0021 Japan |
|
Yard number |
K369 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
Water tight: 19 Gas tight: 1 Oil tight: 14 |
|
Number of decks |
1 |
|
Main engine |
1x Makita-Mitsui/MAN-B&W 6S26MC - 2 stroke single acting 6 cylinder 260 x 980 mm combustion engine 2.405 kW / 3.270 hp at 250 rpm Manufacturer: Makita Corporation - Japan |
|
Number of screws |
1x Fixed pitch propeller - aft at 250 rpm Manufacturer: Kamome Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary natural circulation vertical water tube boiler VWH-600E - 7,0 MPa Evaporation: 513 kg/h (at feed water temperature 60°C and steam pressure 6 kg/cm² Manufacturer: Miura Co., Ltd. 1x Exhaust economiser - 10,5 MPa Forced circulation type multitudinous tube Evaporation: 340 kg/h |
|
Generators |
2x Yanmar S16L-HN - 4 stroke 6 cylinder 165 x 210 mm diesel engines each 240 kW connected with Taiyo Electric TWY35BS-6S generators each 240 ekW Builder: Yanmar Diesel Engine Co.,Ltd. |
|
Cargo tank capacity |
3.234 m³ |
|
Fuel oil purifier |
1x Type SJ-16T - 1.300 l/h |
|
Lub oil purifier |
1x Type SJ-16T - 1.500 l/h |
|
Pumps |
2x Deepwell pumps each 300 m³/h Type: Vertical, centrifugal, multi-stage electrical motor Working pressure maximum: 22,0 kg/cm² Builder: Teikoku Machinery Works Ltd. |
|
Cargo compressors |
2x Vertical water cooled oil less type Builder: Tanabe Pneumatic Machinery Co.,Ltd. |
|
Maximum cargo pressure |
17,7 bar |
|
Manifolds |
Distance from stern (S / P): 51,30 m Distance form stem (S / P): 44,70 m Height above deck: 1,11 m Distance from ship’s rail: 2,50 m Underside keel to manifold: 8,11 m |
|
Number of tanks |
Ballast: 9 Fuel Oil: 5 Lubricating Oil: 4 Fresh Water: 3 Waste Water: 2 Diesel Oil: 2 Sludge: 2 Chain: 1 |
|
Tank capacities |
Diesel Oil: 101,06 m³ Fresh water: 219,64 m³ Fuel oil: 382,05 m³ Lube oil: 27,16 m³ Tank ballast: 875,93 m³ |
|
Crew |
16 |
|
Operator |
Stealth Maritime Corporation SA 331, Kifisias Avenue Kifisia Athens Greece |
|
Registered owner |
Baroness Holdings Inc. |
|
Renamed |
12/2020 Monet Republic of Panama, Panama City - Call sign 3FPP5 Owner: Monet Limited |
|
Scrapped |
14/03/2023 Beached at Alang as Monet Flag: Comoros - Call sign: D6A3020 |
|
Latest data adjustment |
14 November 2023 |
