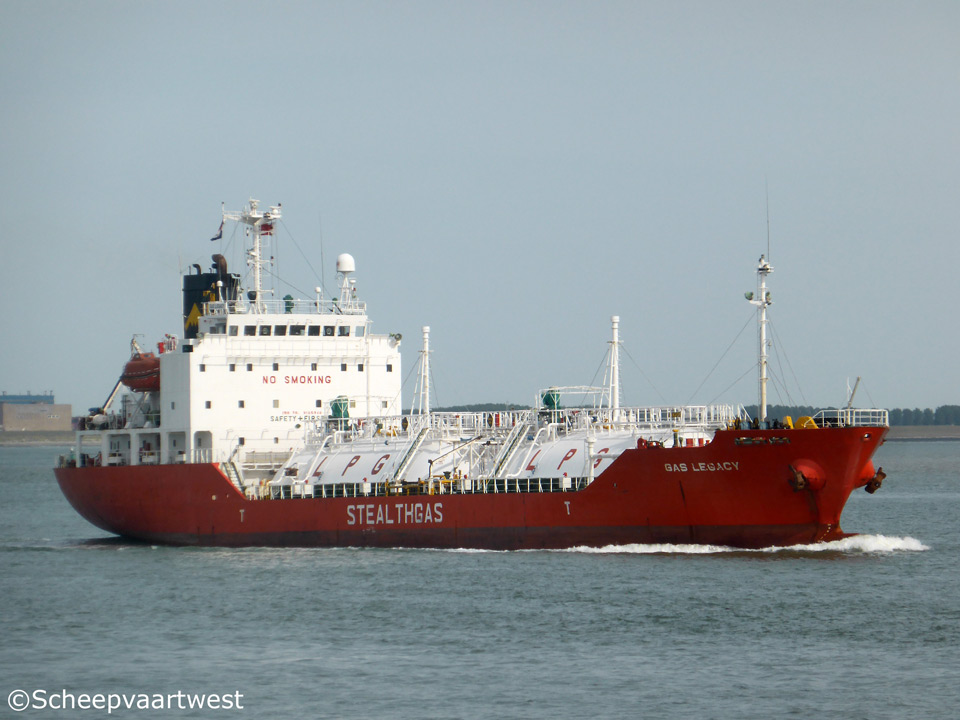

Gas Legacy 08
Westerschelde 08 August 2015



Gas Legacy 02
Zeebrugge 01/09/10



Name

GAS LEGACY

Previous names

Arago

Regulus Gas

Type

Liquefied gas tanker

IMO-number

9186948

Call sign

C4EL2

Flag

Cyprus

Port of registry

Limassol

GT

International: 3.392 t

Suez: 3.720,01 t

Panama: 3.392 t

DWT

3.318 t

NT

International: 1.018 t

Suez: 2.864,15 t

Panama: 2.907 t

Length

95,95 m overall

88,79 m between perpendiculars

Breadth

16,03 m

Draught

Summer: 5,11 m corresponding to summer DWT 3.318,81 t

Depth

7,10 m

Speed

13,0 knots

Built

1998

Date on service

21.12.1998

Date of completion

30.06.1998

Builder

Shitanoe Zosen Shipbuilding
Usuki
Japan

Yard number

1202

Hull type

Double hull

Main engine

1x Mitsubishi 5UEC 33LSll - 5 cylinder 330 x 1.050 mm diesel engine - 3.619 bhp / 2.700 kW at 203 rpm

Builder: Akasaka Mitsubishi

Generators

2x Yanmar S165 L – EN diesel engine each 400 KW at 1.200 rpm drive 2x Taiyo generator 500 kVA - 3 Phase / 450 Volt / 60 Hz at 1.200 rpm

Emergency generator

1x Yanmar Diesel NF 19-HF 13 bhp at 1.800 rpm diesel generatorset

Cargo capacity

3.514 m³

Number of tanks

2x Cylindrical horizontal pressurised tanks

Main air compressors

Matsubara Iron MH - 108 - 15 hp at 1.150 rpm

Builder: Matsubara Iron Works

Capacity: 25 kg/cm²

Emergency air compressors

Yanmar Compressor NC 2

Capacity: 30 kg/cm²

Fuel oil purifier

Mitsubishi SJ – 10F

Capacity: 1900 l/h - 5,5 kW 9.000 rpm

Builder: Mitsubishi Kakoki Kaisha Ltd.

Lub oil purifier

Mitsubishi SJ – 10F

Capacity: 1900 l/h - 5,5 kW 9.000 rpm

Builder: Mitsubishi Kakoki Kaisha Ltd.

Evaporator

Alfa Laval JWP – 26 - C80

Capacity: 10 m³/24 h

Fresh water sterilizer

Nippon Control L-N201 F - AC 100V / 60 Hz

Capacity: Low rate 2000 l/h

Tank capacities

HFO: 416,81 m³

Diesel: 89,37 m³

Fresh Water: 160,88 m³

Valve setting

17,65 bar

Max. temp. acceptable

45°C

Min. temp. acceptable

0°C

Deepwell / Centrifugal pumps

2x Teikoku - each 120 kW

Capacity: 300 m³/h (LPG) / 250 m³/h(VCM)

Working pressure maximum: 20 kg/cm²

Location: 1 each cargo tank top

Builder: Teikoku Machinery Works Ltd.

Cargo compressors

2x Vertical 1-stage water cooled double acting each 75 kW

Piston displacement: 460 m³/h

Max discharge pressure: 20 kg/cm²

Revolutions: 540 rpm

Pressure differential: 4,0 kg/cm²

Stroke: 177,8 mm

Builder: Tanabe Pneumatic Machinery Co.,Ltd.

Lifting equipment

1x Hose crane - SWL 0,9 t at 4,00 m

Crew

16

Manager

StealthGas Inc.

331 Kifissias Avenue

Erithrea 14561

Athens
Greece

Operator

StealthGas Inc.

331 Kifissias Avenue

Erithrea 14561

Athens
Greece

Owner

Northern Yield Shipping Limited
