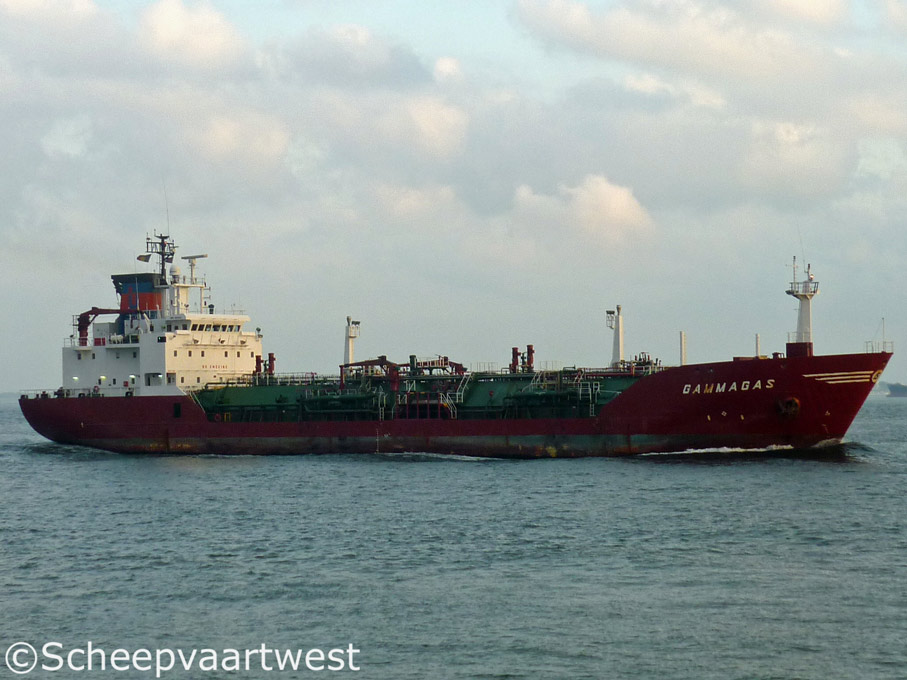

Gammagas 06
Westerschelde 24 August 2011

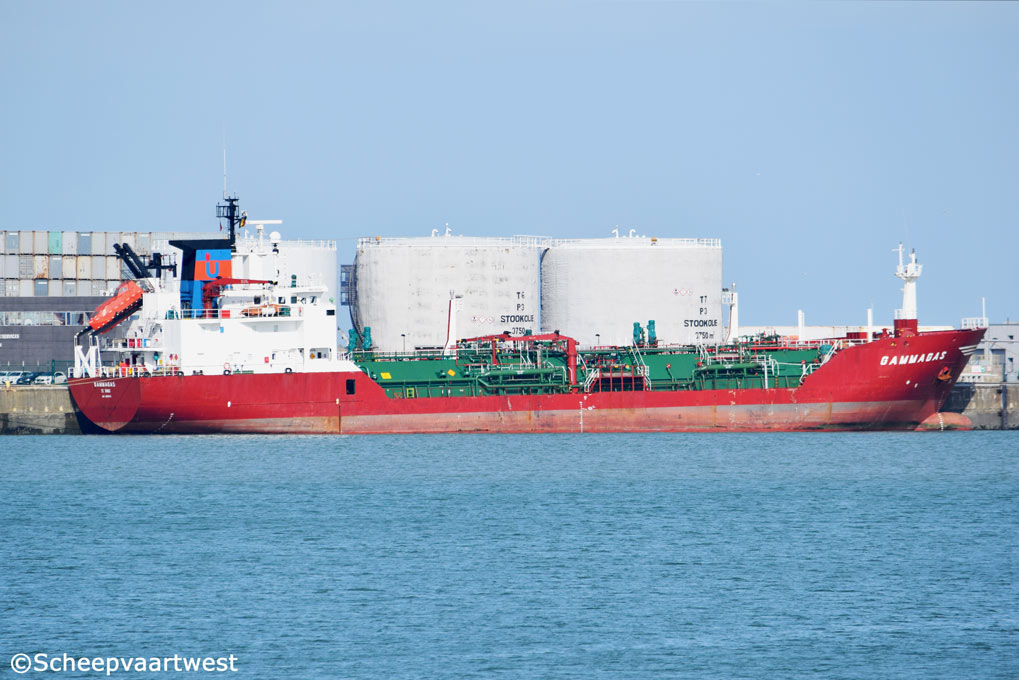

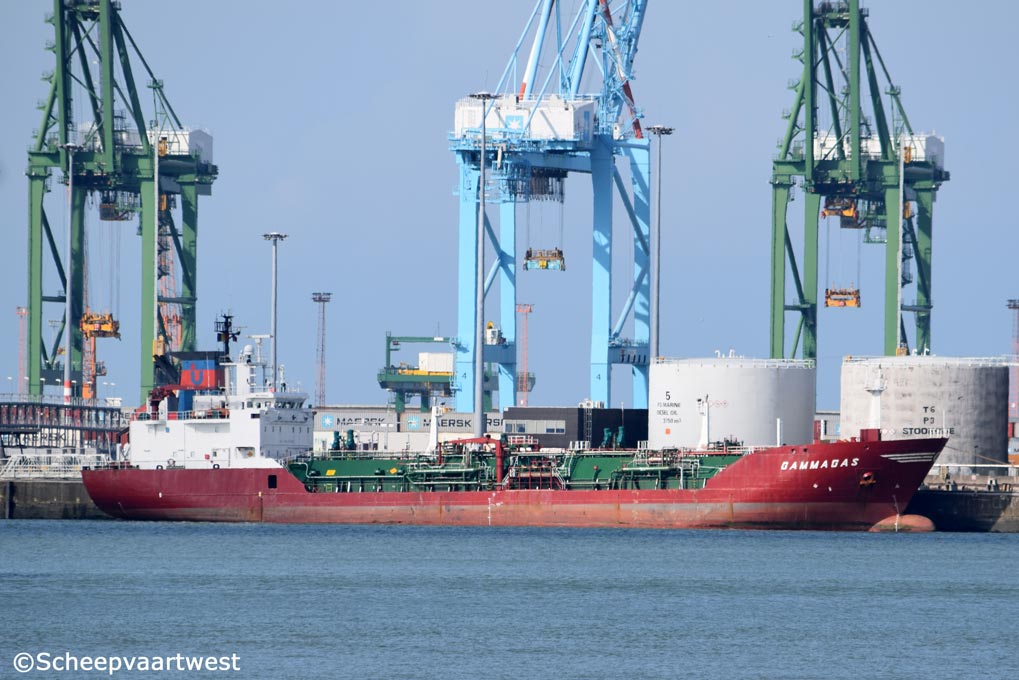

Gammagas 08   Gammagas 09
Zeebrugge 10/10/14 Zeebrugge 10/10/14



Name

GAMMAGAS

Type

Liquefied gas tanker

IMO-number

9005493

Call sign

V2KA6

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.703 t

DWT

3.593 t

NT

1.144 t

Length

99,35 m overall

90,90 m registered

Breadth

15,03 m

Draught

Summer: 6,455 m

Forecastle

9,00 m

Poop

17,30 m

Freeboard

1.360 mm

Depth

7,80 m moulded

Speed

15,0 Knots

Built

1992

Keel laid

17.01.1991

Launch date

15.04.1992

Date of completion

08.1992

Builder

Richard Dunston (Hessle) Ltd.
Hessle , N. Hbrs. HU13 0EA
United Kingdom

Yard number

1001

Hull material

Shipbuilding steel (standard)

Hull type

Double sided

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MaK 6 M 551 - 4 stroke single acting 6 cylinder 450 x 550 mm diesel engine - 3.450 kW at 450 rpm

Year of manufacture: 1991

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft at 185 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 11,0 m²

Year of manufacture: 1991

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 40,0 m²

Year of manufacture: 1992

Manufacturer: Wanson S.A.
Boulevard du Jubile 71
1210 Brussels
Belgium

Electric installations

1x Plant 440/220 V - 1.312,5 kVA

1x Plant 440 V - 125 kVA

Generators

3x Main diesel generatorsets each 437,5 kVA

Emergency generator

1x Diesel generatorset 125 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 1.000 litres - 10,0 bar

Bow thruster

1x Transverse thruster, forward

Number of cargo tanks

2

Cargo capacity

4.400 m³

Largest cargo tank

2.216 m³

Tank capacities

Fuel oil: 430 m³

Water ballast: 1.629 m³

Anchor equipment

3x Anchors weight each 2.460 kg

Chain length: 467,50 m

Manager

Sloman Neptun Schiffahrts-Aktiengesellschaft
Langenstr. 44
28195 Bremen
Federal Republic of Germany

Owner

Gammagas Shipping Co. Ltd.
c/o Sloman Neptun Schiffahrts-Aktiengesellschaft
Langenstr. 44
28195 Bremen
Federal Republic of Germany

Latest data adjustment

01 December 2014
