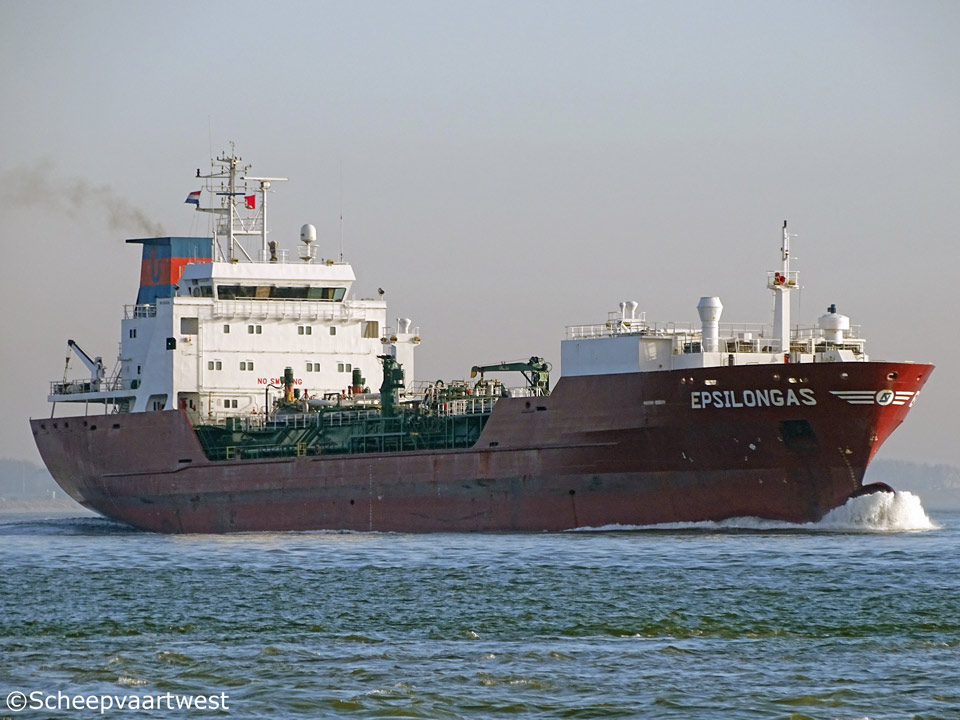

Epsilongas 06

Westerschelde 14 December 2016

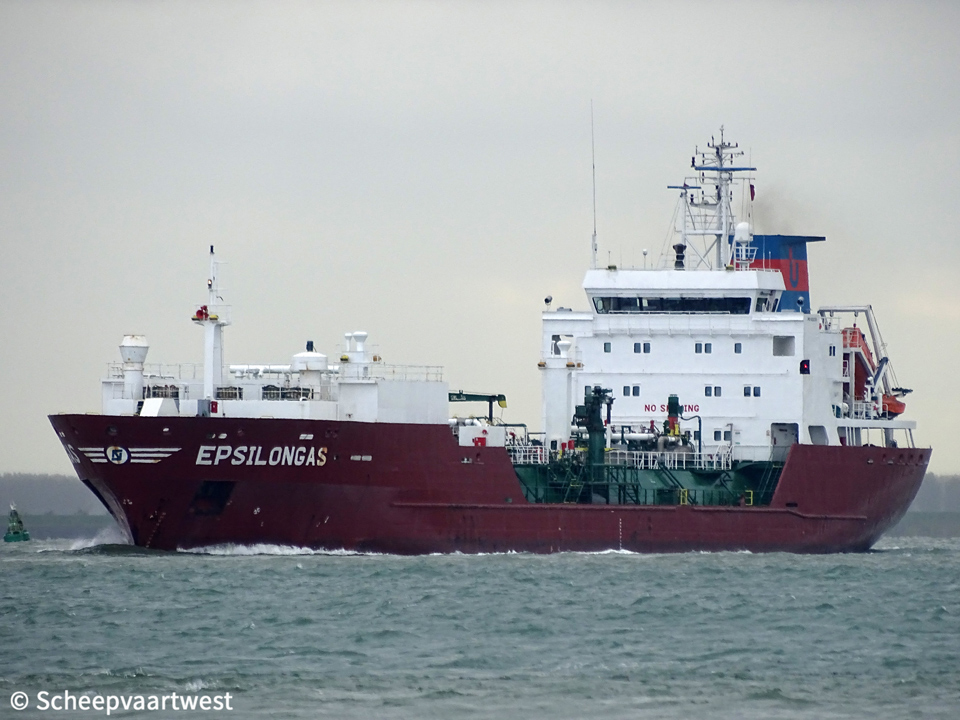

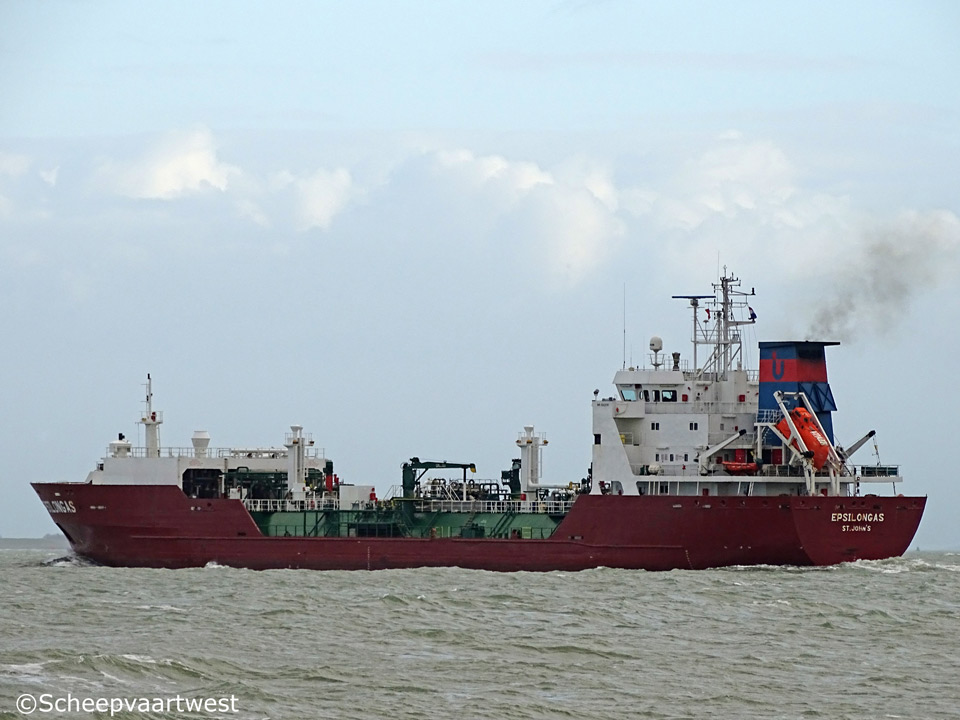

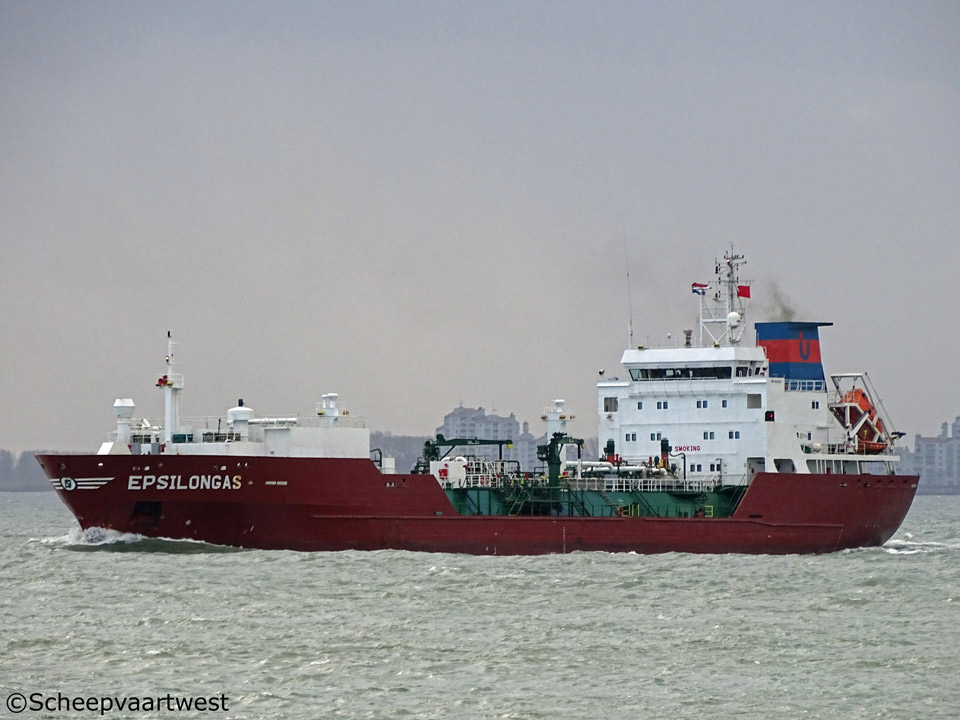

Epsilongas 05   Epsilongas   Epsilongas 07   Epsilongas 08   Epsilongas 09   Epsilongas 11
Westerschelde 14/11/14 Zeebrugge 05/05/05 Westerschelde 11/01/17 Westerschelde 11/01/17   Westerschelde 08/10/17   Antwerpen 14/05/19

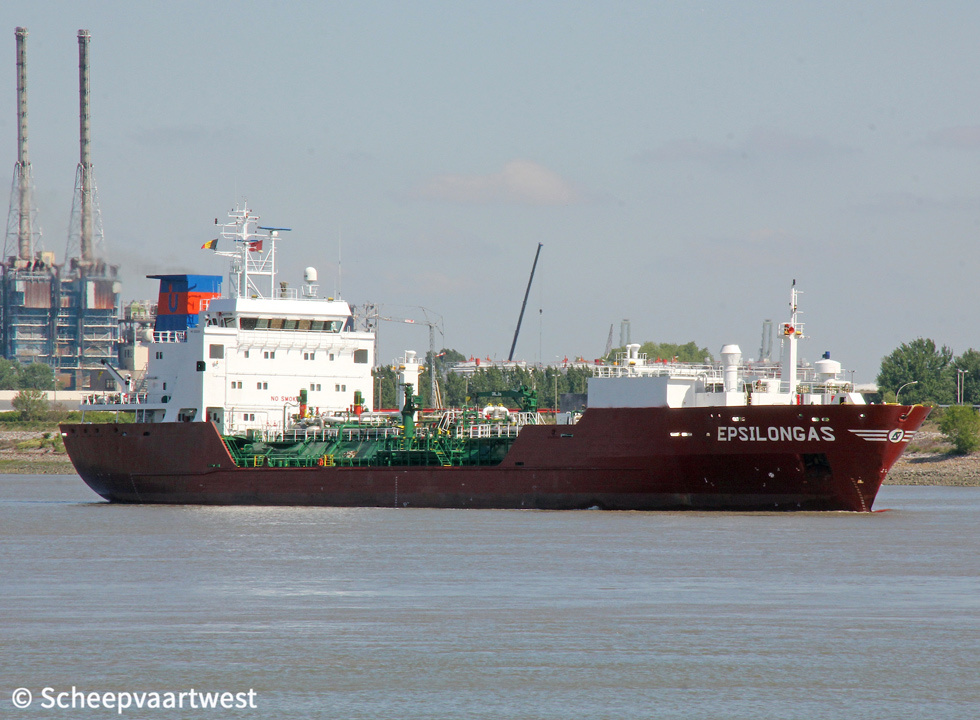

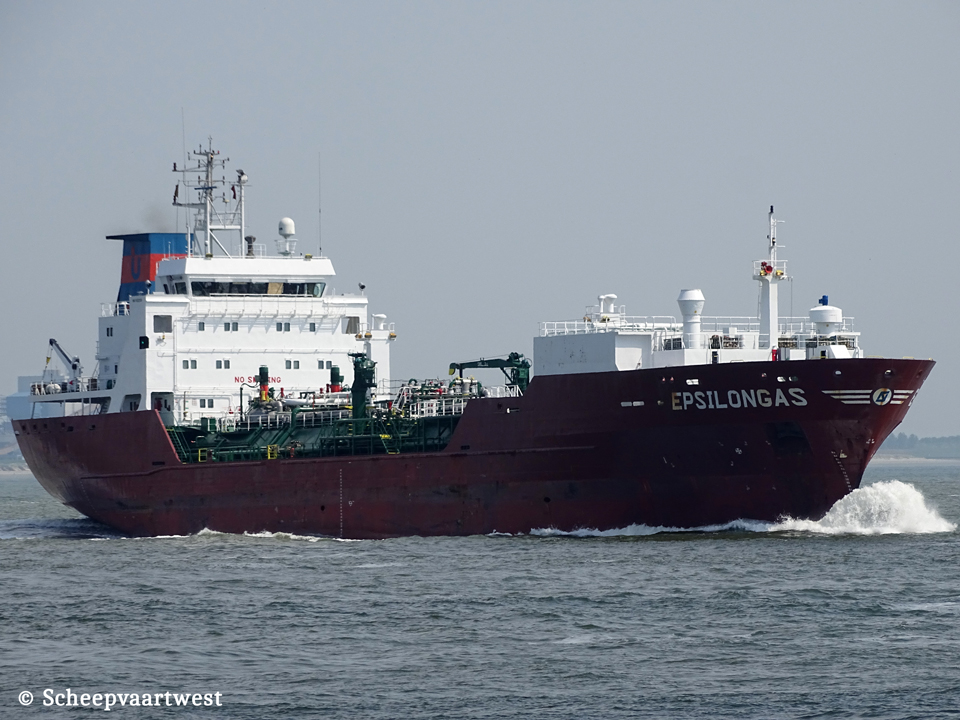

Epsilongas 10   Epsilongas IMO 9202039 12   Epsilongas IMO 9202039 13
Antwerpen 14/05/19   Westerschelde 06/05/18   Westerschelde 20/05/17


Name

EPSILONGAS

Type

Liquefied gas tanker

IMO-number

9202039

Call sign

V2AZ7

Flag

Antigua & Barbuda

Port of registry

St John’s

GT

5.278 t

DWT

Summer: 6.174 t

NT

1.583 t

Length

107,86 m overall

100,96 m between perpendiculars

101,26 m registered

Breadth

17,07 m overall

16,80 m moulded

Draught

Summer: 7,45 m

Forecastle

10,66 m

Poop

20,40 m

Freeboard

1.960 mm

Depth

9,40 m moulded

Speed

16,20 Knots

Built

2000

Keel laid

09/08/1999

Launch date

20/02/2000

Date of completion

09/2000

Builder casco

Santierul Naval Constanta S.A.

Incinta Port 1

900900 Constanta

Romania

Yard number: 523

Builder completion

Mützelfeldwerft

Cuxhaven

Germany

Yard number:230

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN-B&W 9L32/40 - 4 stroke single acting 9 cylinder 320 x 400 mm combustion engine 4.320 kW / 5.873 hp at 750 rpm

Transmission: Main propulsion acts through gear on the propellershaft

Year of manufacture: 1999

Manufacturer: MAN B&W Diesel GmbH

Stadtbachstr. 1

86153 Augsburg

Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft at 165,0 rpm

Boiler

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 37,5 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 110,4 m²

Year of manufacture: 1999

Manufacturer: PWT Prozesswärmeträgertechnik GmbH

Max-Weber-Str. 10

25451 Quickborn

Federal Republic of Germany

Electric installations

4x Plants each 440/220 V - 893 kVA

1x Plant 440 V - 131 kVA

Generators

4x Main diesel generatorset each 893 kVA / 720 kW

Emergency generator

1x Diesel generatorset 131 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x Transverse thruster - 450 kW, forward

Number of cargo tanks

2

Cargo capacity

Liquil: 5.600 m³

Largest cargo tank

3.843 m³

Min. temp.

-104°C

Pressure

5,8 bar

Number of pumps

3x cargo pumps each 300 m³/h

Max. load & discharge

900 m³/h

Tank capacities

Fuel oil: 544 m³

Fresh water: 140 m³

Water ballast: 1.357 m³

Anchor equipment

3x Anchors weight each 3.060 kg

Chain length: 495,00 m

Diameter: 44 mm

Complement

16 Persons

ISM & commercial manager

Sloman Neptun Schiffahrts-Aktiengesellschaft

Langenstrasse 44

28195 Bremen

Federal Republic of Germany

Operator

Unigas International B.V.

Westblaak 41

3012 KD Rotterdam

The Netherlands

Registered owner

Epsilongas Partenreederei

Carg of Sloman Neptun Schiffahrts-Aktiengesellschaft

Langenstrasse 44

28195 Bremen

Germany

Latest data adjustment

30 January 2023
