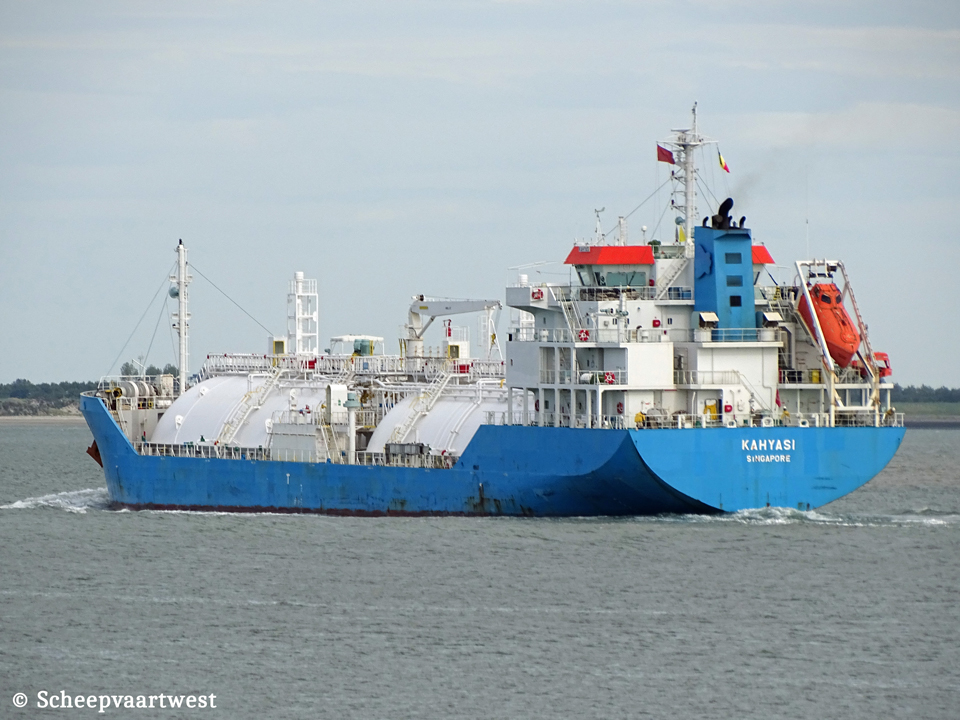

| Westerschelde 27 July 2020 |
|
Name |
KAHYASI |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9726815 |
|
Call sign |
9V2738 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
7.981 t |
|
DWT |
8.102 t |
|
NT |
2.761 t Suez: 8.861,06 t Panama: 6.753 t |
|
Displacement |
12.932 t loaded 4.830 t light ship |
|
Length |
119,92 m overall 114,00 m between perpendiculars |
|
Breadth |
20,63 m extreme |
|
Draught |
Summer: 6,82 m |
|
Keel to mast end |
35,33 m |
|
Air draft |
30,07 m normal ballast |
|
Distance bow to bridge |
98,50 m |
|
Freeboard |
2.820 mm |
|
Depth |
9,60 m moulded |
|
Speed |
14,5 knots |
|
Built |
2015 |
|
Keel laid |
17/10/2014 |
|
Delivery date |
10/06/2015 |
|
Builder |
Sasaki Shipbuilding Co., Ltd. 65-1, Kinoe, Osakikamijima-Cho, Toyota-Gun, 725-0401 Japan |
|
Yard number |
688 |
|
Hull material |
Steel |
|
Hull type |
Double side |
|
Main engine |
MAN-B&W/Hitachi 6S35ME-B9.3 - 2 stroke 6 cylinder 350 x 1.050 mm combustion engine Mcr 4.170 kW / 5.670 hp at 167 rpm Manufacturer: Hitachi Zosen Corporation |
|
Propellers |
1x Kamome fixed pitch propeller Diameter: 4.250 x 2.888 pitch |
|
Boilers |
1x Fired boiler - 9,8 MPa 1x Unfired exhaust gas boiler - 14,0 MPa |
|
Generators |
3x Yanmar 6EY-18ALW main diesel generatorsets each 615 kW |
|
Cargo tank capacity 100% |
Liquid: Tank 1: 5.511,43 m³ Tank 2: 5.513,31 m³ Total 11.024,74 m³ |
|
Number of pumps |
2x Cargo pumps each 300 m³/h |
|
Manifolds |
Distance of centre of L1 from bow: 60,41 m Distance of centre of L1 from stern: 61,40 m Distance of manifold above deck: 1,40 m Distance of manifold from ship's side: 3,30 m Distance of manifold above waterline summer: 9,83 m Distance of manifold above waterline ballast: 9,30 m |
|
Tank capacities |
Fuel oil: 784,70 m³ Fresh water: 332,68 m³ Hydraulic oil: 3,55 m³ Diesel oil: 240,66 m³ Ballast: 2.622,69 m³ Lub oil: 52,63 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 5,0 t 1x Store handling crane port-aft - SWL 0,9 t |
|
Crew size |
24 persons |
|
Manager |
Petredec Hamilton Bermuda |
|
ISM manager |
Anglo Eastern Ship management (S) Pte. Ltd. |
|
Registered owner |
Kahyasi Shipping Pte. Ltd. |
|
Renamed |
08/2020 Epic Susak Republic of Singapore, Singapore City - Call sign: 9V2738 Owner a manager: Epic Gas Echo Pte Ltd.- Republic of Singapore ISM manager: BW Epic Kosan Maritime Pte. Ltd., Republic of Singapore |
|
Latest data adjustment |
06 January 2023 |
