| Vlissingen, The Netherlands 13 June 2018 |
|
Name |

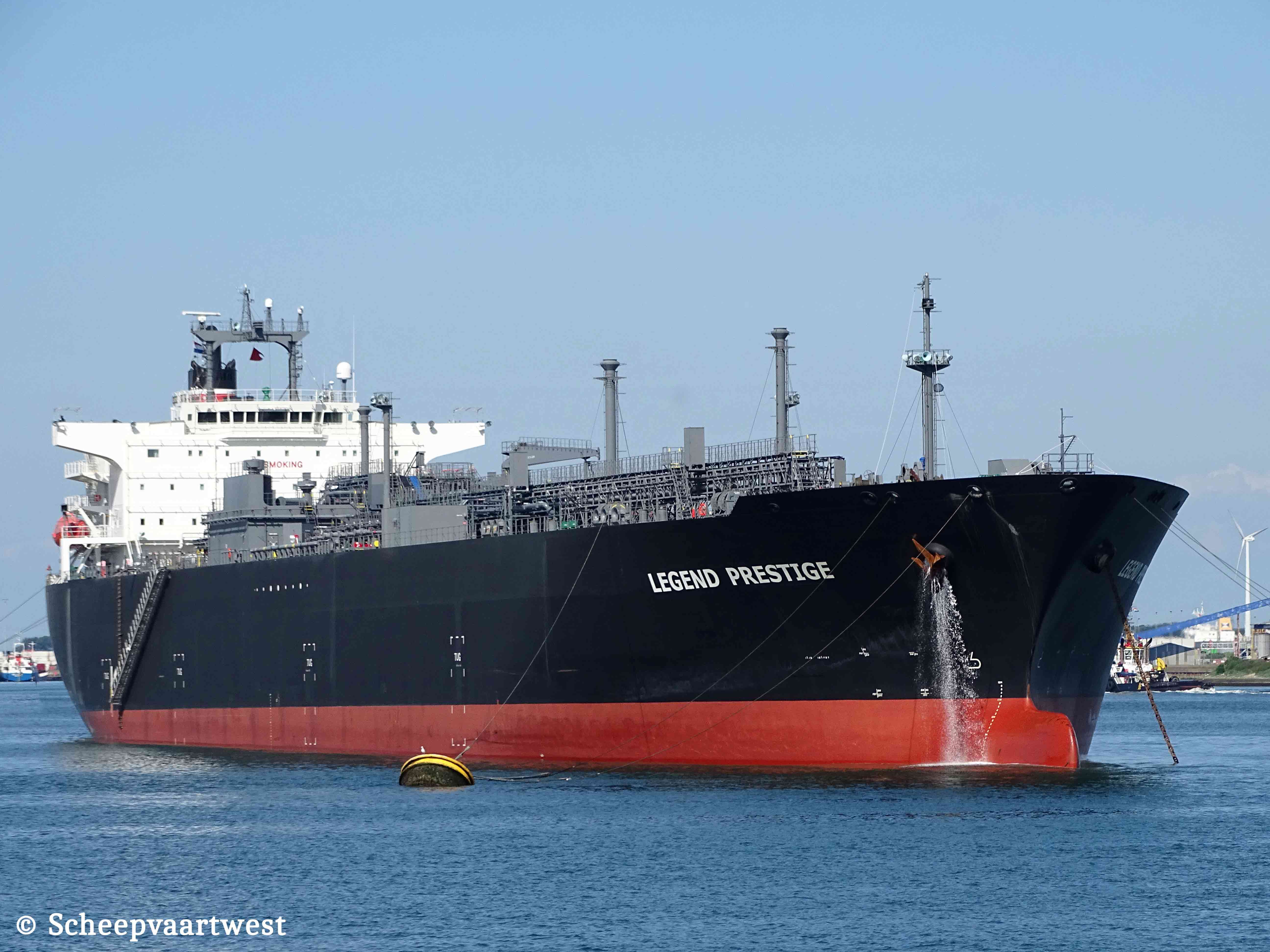

LEGEND PRESTIGE |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9773234 |
|
Call sign |
3EGZ3 |
|
Flag |
Republic of panama |
|
Port of registry |
Panama City |
|
GRT |
47.963 t |
|
DWT |
55.076 t |
|
NRT |
14.289 t |
|
Length |
230,00 m |
|
Breadth |
36,60 m moulded |
|
Draught |
Summer: 11,58 m |
|
Moulded L x B x D |
219,00 x 36,60 x 21,65 m |
|
Registered L x B x D |
222,94 x 36,60 x 21,65 m |
|
Keel to mast end |
47,17 m |
|
Depth |
21,65 m moulded |
|
Speed |
Max: 19,3 knots Service: 16,7 knots |
|
Built |
2017 |
|
Keel laid |
25/12/2015 |
|
Launch date |
27/01/2017 |
|
Date of completion |
28/04/2017 |
|
Builder |
Misubishi Heavy Industries Shipbuilding Co., Ltd. |
|
Yard number |
2329 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN B&W/Mitsui 7S60ME-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.000 kW / 17.675 hp at 100 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 620 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary Vertical boiler - 0,69 MPa Evaporation: 4,10 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. - Japan |
|
Generators |
4x Generatorsets total 3.875 kVA |
|
Cargo tank capacity |
Liquid: 83.320,86 m³ |
|
Number of pumps |
8x Cargo pumps each 550 m³/h |
|
Minimum temperature |
-46°C |
|
Tank capacities |
Fuel oil: 3.709 m³ Fresh water: 409 m³ |
|
Commercial manager |
Nyk Line Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku, Tokyo, 100-0005 Japan |
|
ISM manager |
NYK Shipmanagement Pte Ltd. 15-01, HarbourFront Tower One, 1, Harbourfront Place, Singapore 098633 Republic of Singapore |
|
Registered owner |
Ocean Link Maritime SA Care of Kyoei Tanker Co Ltd. 4th Floor, G Square Mita, 2-6, Mita 3-chome, Minato-ku, Tokyo, 102-0073 Japan |
|
Latest data adjustment |
28 December 2022 |
