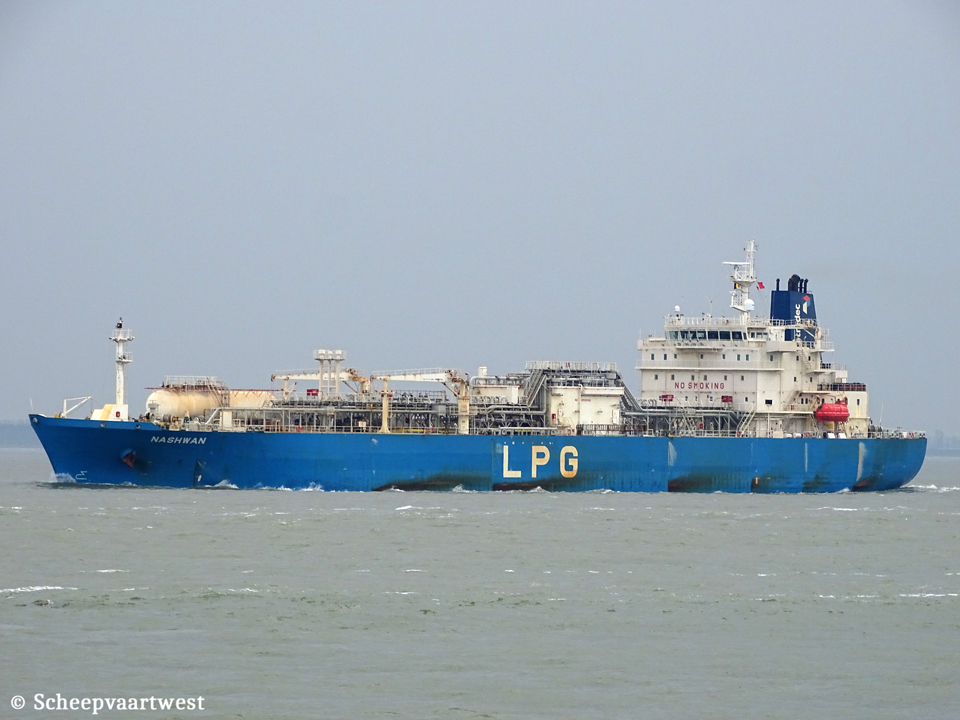

Nashwan IMO 9394208 01
Westerschelde 09 April 2019

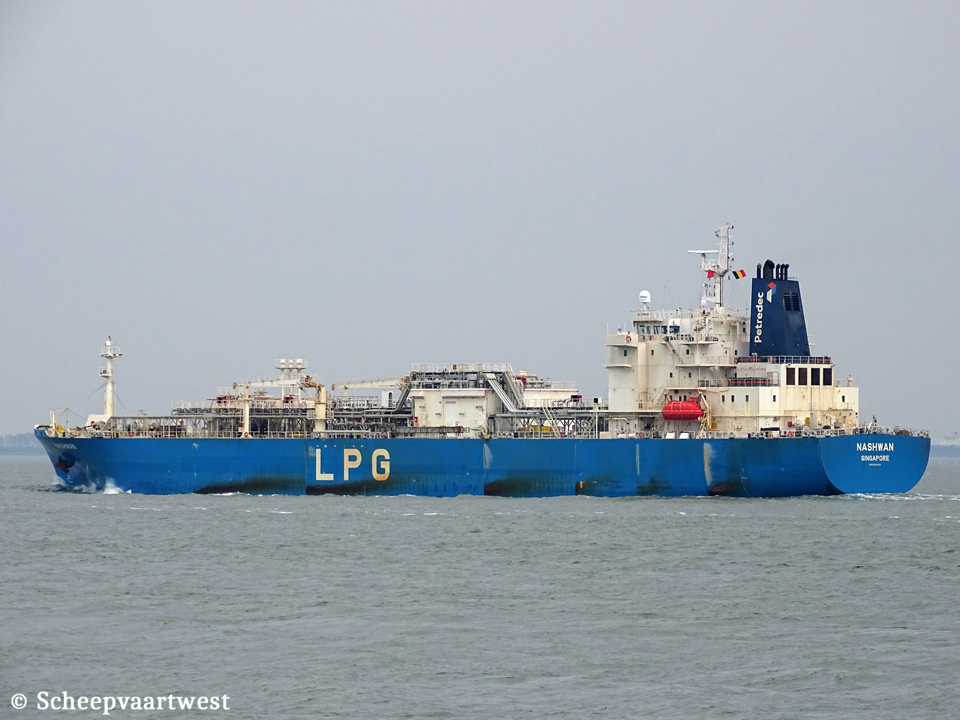

Nashwan IMO 9394208 02
Westerschelde 09/04/19


Name

NASHWAN

Type

Liquefied gas tanker - LPG/NH3 Carrier

IMO-number

9394208

Call sign

9VAX3

Flag

Republic of Singapore

Port of registry

Singapore City

GT

16.804 t

DWT

16.922 t

NT

6.651 t

Light ship

8.010 t

Length

154,17 m overall

147,00 m between perpendiculars

Breadth

25,50m moulded

Draught

Summer: 8,82 m

Keel to mast end

43,00 m

Freeboard

7.211 mm

Depth

16,00 m moulded

Speed

Max: 16,6 knots

Built

2008

Date of completion

27/06/2008

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1912

Hull material

Steel

Hull type

Double bottom

Main engine

1x Hyundai/MAN-B&W 6S50MC-C7 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.580 kW / 11.658 hp at 127,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

1x CHO 243.00 m² - 8,0 bar

1x CHR 243.00 m²

Generators

3x Hyundai/MAN-B&W 7L23/30H - 4 stroke diesel engine each 910 kW connected with generators each 1.062 kVA - 450 Volt

Number of tanks

3x Cargo tanks prismatic

Caro tank capacity

100% / 98%

Tank 1: 6.758,070 m³ / 6.622,909 m³

Tank 2: 8.713,912 m³ / 8.539,634 m³

Tank 3: 7.127,183 m³ / 6.984,639 m³

Total: 22.599,165 m³ / 22.147,182 m³

Number of deck tanks

1

Deck tank capacity

241 m³

Number of pumps

6x Swanehoj cargo pumps each 350 m³/h

Min temp

-48°C

Tank capacities

VLSFO: 835 m³

LSMGO: 522,2 m³

Ballast: 8.851,4 m³

Lifting equipment

2x Hose cranes - SWL 5,0 t each

1x Provision Cranes - SWL 2,0 t

Cargo gear

Petredec Ltd.

Par La Ville Place, 14, Par la Ville Road

Hamilton, HM 08

Bermuda

ISM manager

Anglo-Eastern Shipmanagement (S) Pte Ltd.

16-02, Southpoint, 200, Cantonment Road

Singapore 089763

Republic of Singapore

Owner

Nimbus Shipping Pte Ltd.

Care of Petredec Ltd.

Par La Ville Place, 14, Par la Ville Road

Hamilton, HM 08

Bermuda

Latest data adjustment

01 October 2022
